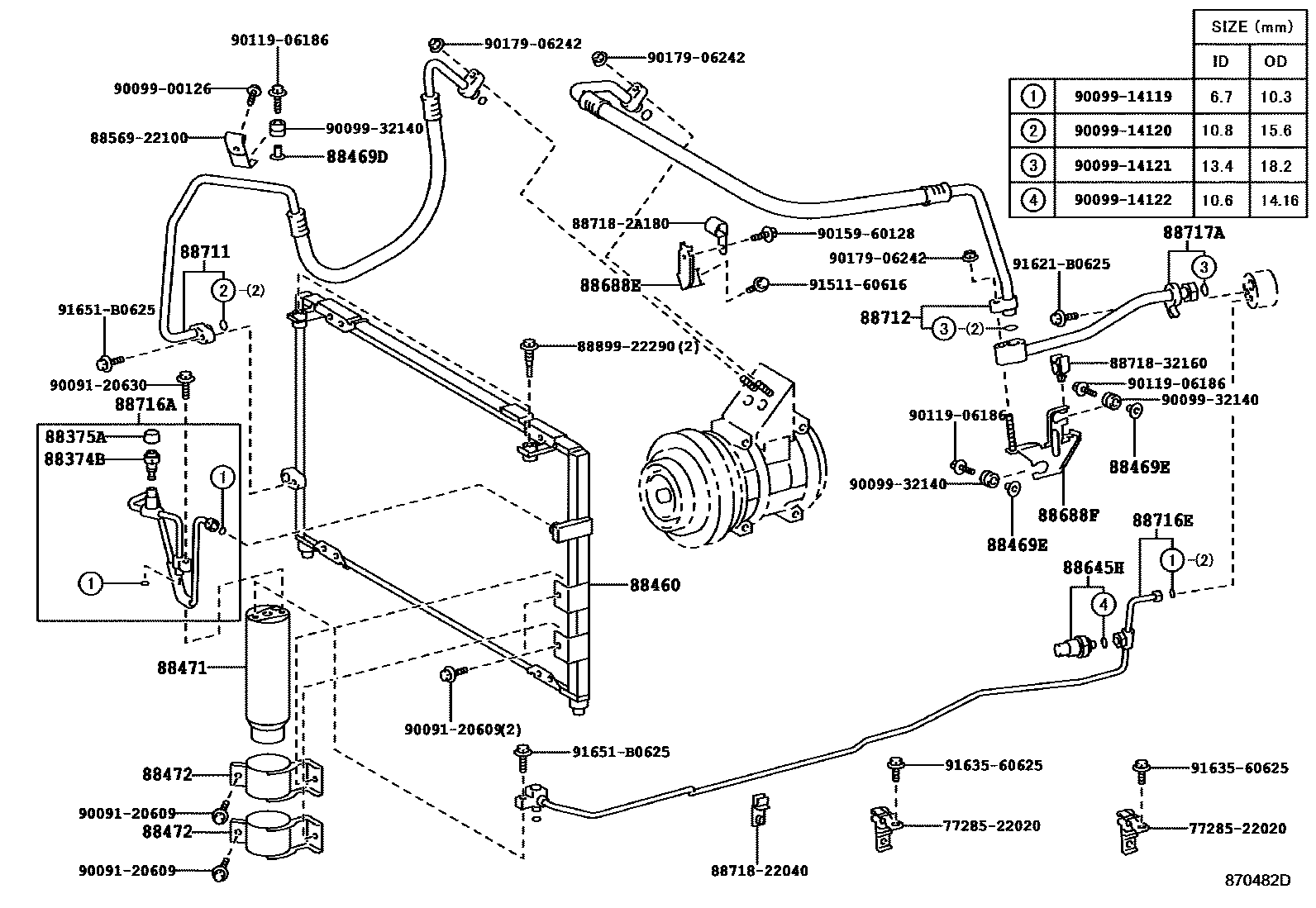

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

88374BVALVE, SERVICE, NO.1

main88374-30010iLX100199609-199908

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iGX100,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199908

88460CONDENSER ASSY, COOLER

main88460-22540iGX100,JZX100,105,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199808

main88460-22550iLX100199609-199908

main88460-22560iJZX101;JZX100..TOUV199609-199808

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-28010iGX10#,JZX10#,LX100,SX100199609

88469ECOLLAR, CONDENSER BRACKET, NO.2

main88469-28010iGX100,JZX10#,LX100,SX100199609-199808

88471TANK, RECEIVER AIR CONDITIONER

main88471-34010iGX100,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199908

88472BRACKET, RECEIVER TANK, NO.1

main88472-22100iGX100,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199908

88645HSWITCH, PRESSURE NO.1

main88645-22070iJZX101;JZX100,SX100..RAF,TOUV,XL199609

main88645-22080iGX10#,JZX100,105,LX100..AVT,AVTG,TOU,TOUS,XL199609

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-22510iLX100199609-199908

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-22520iGX100,JZX10#,LX100,SX100199609-199808

main88688-2A240iGX10#199808-199903

main88688-2A241iGX10#199903

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-22810iJZX10#..AVT,AVTG,TOUS199609-199808

main88711-22820iJZX100..TOUV199609-199808

sub88711-22870

main88711-22830iGX100199609-199808

main88711-22840iSX100199704-199808

sub88711-2A010

main88711-22850iLX100199609-199908

main88711-22860iJZX100,101..AVT,AVTG,TOUS199808

main88711-22870iJZX100..TOUV199808

main88711-22880iJZX105199808

main88711-22890iGX10#199808

main88711-2A010iSX100199808

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-2A200iJZX100,101..AVT,AVTG,TOUS199609

main88712-2A210iJZX100..TOUV199609

main88712-2A220iJZX105199609

main88712-2A230iGX100199609-199808

main88712-2A240iSX100199704

main88712-2A250iLX100199609-199908

main88712-2A260iGX10#199808-199903

main88712-2A261iGX10#199903

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-22560iGX100,JZX100,105,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199808

main88716-22570iLX100199609-199908

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-22590iJZX101;JZX100..TOUV199609-199808

main88716-2A560iJZX105199609-199808

main88716-2A570iLX100199609-199908

main88716-2A580iGX105,JZX105199808

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-22570iGX100,JZX10#,LX100,SX100199609-199808

main88717-22580iGX10#199808-199903

main88717-22581iGX10#199903

7728522020BRACKET, FUEL TUBE

main77285-22020

8856922100CLAMP (FOR COOLER RELAY)

main88569-22100

8871822040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22040

887182A180PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2A180

8871832160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32160

8889922290COVER, EVAPORATOR

main88899-22290

9009120609

main90091-20609

9009120630

main90091-20630

9009900126

main90099-00126

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9009932140

main90099-32140

9011906186

main90119-06186

9015960128

main90159-60128

9017906242

main90179-06242

9151160616

main91511-60616

91621B0625

main91621-B0625

9163560625

main91635-60625

91651B0625

main91651-B0625

36 parts on this diagram · 11 diagrams in section
