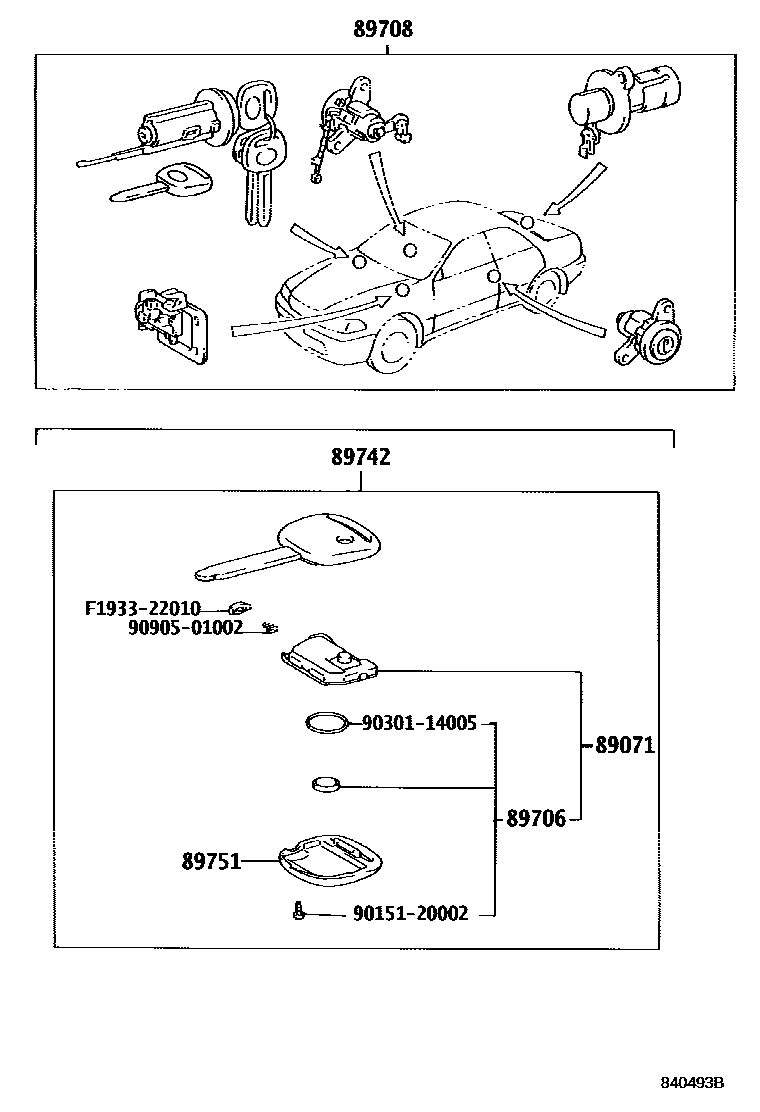

WIRELESS DOOR LOCK

0001 1 0002 1

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-22020iJZX100..TOUS200012-200106

main89071-22020iGX10#,JZX10#,LX100..AVT,AVTG,TOUV199609

89706BATTERY SET, TRANSMITTER

main89706-22020iJZX100..TOUS200012-200106

sub89745-22010

sub90151-20002

sub90301-14005

main89706-22020iGX10#,JZX10#,LX100..AVT,AVTG,TOUV199609

sub89745-22010

sub90151-20002

sub90301-14005

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-22160iGX100,JZX10#,LX100..AVT,AVTG,TOUV199609-199808

main89708-22161iJZX100..TOUS200012-200106

main89708-22161iGX10#,JZX10#,LX100..AVT,AVTG,TOUV199808

89742TRANSMITTER, DOOR CONTROL

main89742-22120iJZX100..TOUS200012-200106

main89742-22120iGX10#,JZX10#,LX100..AVT,AVTG,TOUV199609

89751COVER, TRANSMITTER HOUSING

mainF167222030iJZX100..TOUS200012-200106

mainF167222030iGX10#,JZX10#,LX100..AVT,AVTG,TOUV199609

9015120002

main90151-20002

9030114005

main90301-14005

9090501002

main90905-01002

F193322010

mainF1933-22010

9 parts on this diagram · 2 diagrams in section
