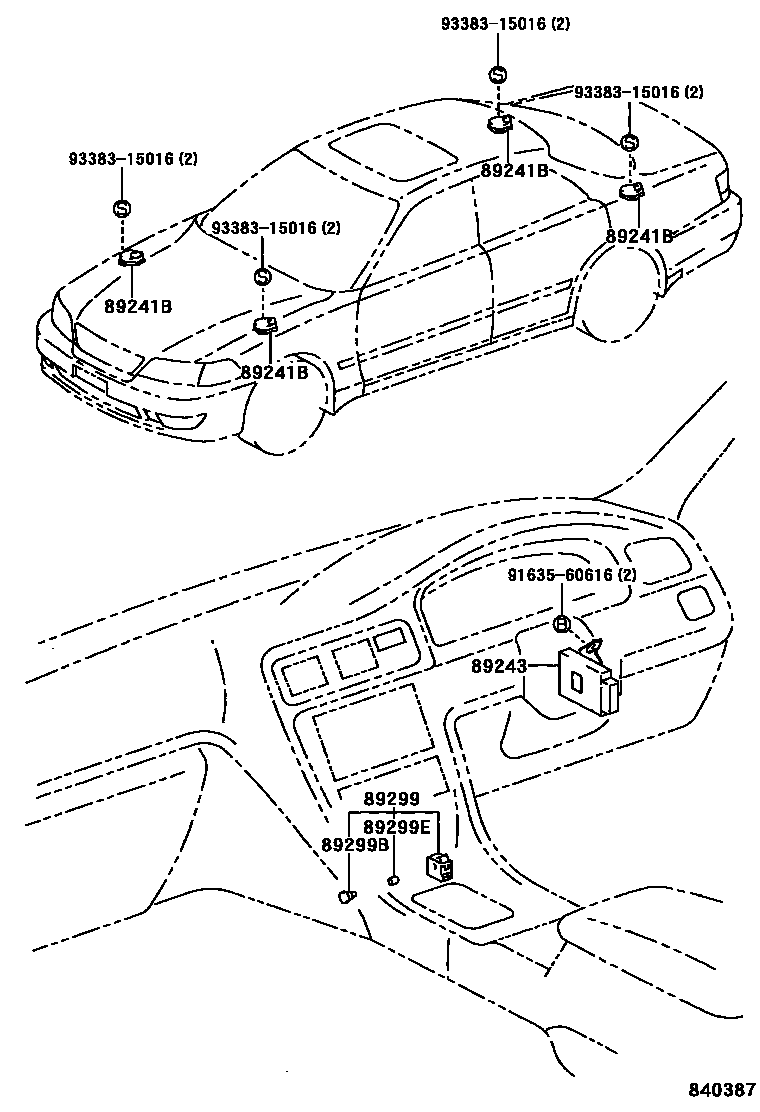

ELECTRONIC MODULATED SUSPENSION

89241BACTUATOR, ABSORBER CONTROL

main89241-22070iJZX100,101..AVTG199609

89243COMPUTER, ABSORBER CONTROL

main89243-22120iJZX100,101..AVTG199609-199808

main89243-22121iJZX100,101..AVTG199808

89299SWITCH, SUSPENSION CONTROL

main89299-22010iJZX100,101..AVTG199609

89299BBULB(FOR SUSPENSION CONTROL SWITCH)

main84999-10710iJZX100,101..AVTG199609

89299ECAP, SUSPENSION CONTROL SWITCH BULB

main84998-10670iJZX100,101..AVTG199609

9163560616

main91635-60616

9338315016

main93383-15016

7 parts on this diagram · 1 diagram in section
