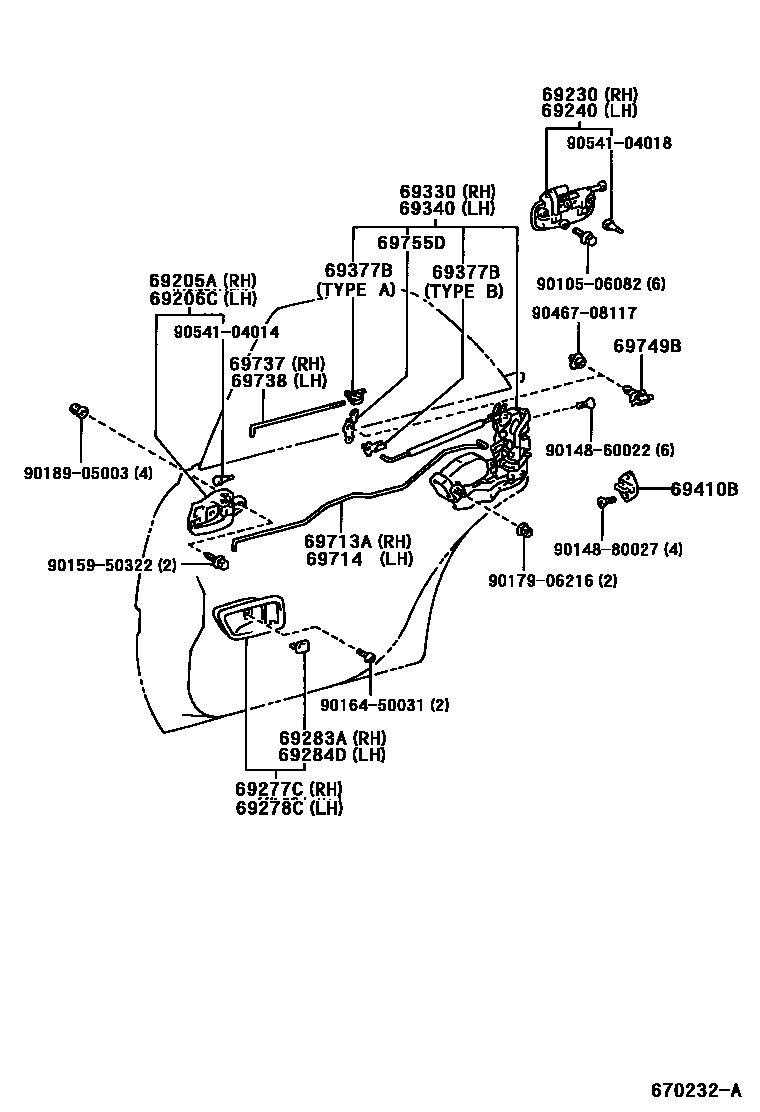

REAR DOOR LOCK & HANDLE

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-22080-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

main69205-22080-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

main69205-22080-E0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

ORCHID BROWN,TRIM4#

main69205-22080-G0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

DK.SAGE,TRIM6#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-22080-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

sub69206-30120

main69206-22080-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

sub69206-30120

main69206-22080-E0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

ORCHID BROWN,TRIM4#

sub69206-30120

main69206-22080-G0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

DK.SAGE,TRIM6#

sub69206-30120

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-22110-A0iGX10#,JZX10#,LX100,SX100199609

SUPER WHITE 2,040

main69230-22110-A1iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV199609-199808

WHITE PM.,057

main69230-22110-A2iGX100,JZX100..TOU,TOUS,TOUV199712-199807

main69230-22110-A3iGX10#,JZX100..4FC..AVT199908-200012

main69230-22110-B0iGX100,JZX10#,LX100,SX100199609-199708

SILVER ME,199

main69230-22110-B1iGX10#,JZX10#,LX100,SX100199708

SILVER ME.,1C0

main69230-22110-D0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV199609-199808

WINE RED MC.,3L4

main69230-22110-G0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV199609-199708

GRAYISH GREEN M.M.,6N0

main69230-22110-G1iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV199609-199808

DK.GREEN MC.P.I.O.,6N9

main69230-22110-J0iGX10#,JZX10#,LX100,SX100199609

DK.BLUE MC.,8L4

main69230-22110-J1iGX10#,JZX10#,LX100,SX100199808

BLUE MC.,8M6

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-22110-A0iGX10#,JZX10#,LX100,SX100199609

SUPER WHITE 2,040

main69240-22110-A1iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV199609-199808

WHITE PM.,057

main69240-22110-A2iGX100,JZX100..TOU,TOUS,TOUV199901-199907

main69240-22110-A3iGX10#,JZX100..ATM..(AVT,TOUS,TOUV)200012-200106

main69240-22110-B0iGX100,JZX10#,LX100,SX100199609-199708

SILVER ME,199

main69240-22110-B1iGX10#,JZX10#,LX100,SX100199708

SILVER ME.,1C0

main69240-22110-D0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV199609-199808

WINE RED MC.,3L4

main69240-22110-G0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV199609-199708

GRAYISH GREEN M.M.,6N0

main69240-22110-G1iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV199609-199808

DK.GREEN MC.P.I.O.,6N9

main69240-22110-J0iGX10#,JZX10#,LX100,SX100199609

DK.BLUE MC.,8L4

main69240-22110-J1iGX10#,JZX10#,LX100,SX100199808

BLUE MC.,8M6

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-22090-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

main69277-22090-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

main69277-22090-E0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

ORCHID BROWN,TRIM4#

main69277-22090-G0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

DK.SAGE,TRIM6#

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-22050-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

main69278-22050-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

main69278-22050-E0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

ORCHID BROWN,TRIM4#

main69278-22050-G0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

DK.SAGE,TRIM6#

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

main69283-30040-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

main69283-30040-E1iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

ORCHID BROWN,TRIM4#

main69283-30040-G0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

DK.SAGE,TRIM6#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

main69284-30040-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

main69284-30040-E1iGX10#,JZX10#,LX100,SX100..AVT,AVTG,XL199808

ORCHID BROWN,TRIM4#

main69284-30040-G0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

DK.SAGE,TRIM6#

69330LOCK ASSY, REAR DOOR, RH

main69050-22400iJZX105199801-199808

main69050-22410iGX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV199609

69340LOCK ASSY, REAR DOOR, LH

main69060-22400iJZX105199801-199808

main69060-22410iGX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV199609

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69759-20410×2iGX10#,JZX10#,LX100,SX100199812

main69759-24050iGX10#,JZX10#,LX100,SX100199812

main69759-24060iGX10#,JZX10#,LX100,SX100199812

main69759-24080iGX10#,JZX10#,LX100,SX100199609-199812

main69759-24090iGX10#,JZX10#,LX100,SX100199609-199812

main69759-50040×2iGX10#,JZX10#,LX100,SX100199609-199812

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001×2iGX10#,JZX10#,LX100,SX100199609

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-22140iGX10#,JZX10#,LX100,SX100199609

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-22140iGX10#,JZX10#,LX100,SX100199609

69737LINK, REAR DOOR INSIDE LOCKING, RH

main69737-22160iGX10#,JZX10#,LX100,SX100199609

69738LINK, REAR DOOR INSIDE LOCKING, LH

main69737-22160iGX10#,JZX10#,LX100,SX100199609

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32030×2iGX10#,JZX10#,LX100,SX100199609

69755DBELLCRANK, REAR DOOR LOCKING CONTROL, FRONT

main69755-22050×2iGX10#,JZX10#,LX100,SX100199609

9010506082

main90105-06082

9014860022

main90148-60022

9014880027

main90148-80027

9015950322

main90159-50322

9016450031

main90164-50031

9017906216

main90179-06216

9018905003

main90189-05003

9046708117

main90467-08117

9054104014

main90541-04014

9054104018

main90541-04018

28 parts on this diagram · 1 diagram in section
