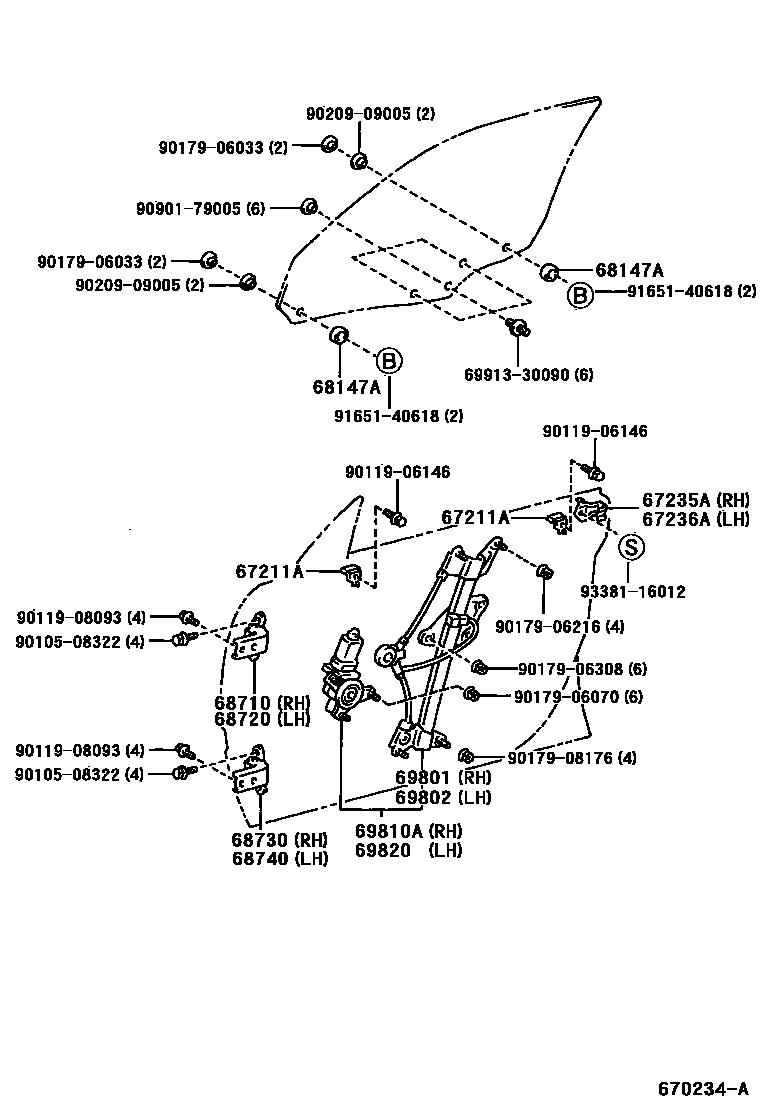

FRONT DOOR WINDOW REGULATOR & HINGE

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-22050×4iGX10#,JZX10#,LX100,SX100199609

sub67211-24020

67235ASTABILIZER, DOOR GLASS FEMALE, RH

main67235-22070iGX100,JZX10#,LX100,SX100199609-199707

main67235-22080iGX10#,JZX10#,LX100,SX100199707

67236ASTABILIZER, DOOR GLASS FEMALE, LH

main67236-22030iGX100,JZX10#,LX100,SX100199609-199707

main67236-22040iGX10#,JZX10#,LX100,SX100199707

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-22010×4iGX10#,JZX10#,LX100,SX100199609

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iGX10#,JZX10#,LX100,SX100199609

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iGX10#,JZX10#,LX100,SX100199609

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12110iGX10#,JZX10#,LX100,SX100199609

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12110iGX10#,JZX10#,LX100,SX100199609

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-22160iGX10#,JZX10#,LX100,SX100199609

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-22160iGX10#,JZX10#,LX100,SX100199609

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-22310iGX10#,JZX10#,LX100,SX100199609

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-22280iGX10#,JZX10#,LX100,SX100199609

6991330090BOLT, FRONT DOOR GLASS SETTING

main69913-30090

9010508322

main90105-08322

9011906146

main90119-06146

9011908093

main90119-08093

9017906033

main90179-06033

9017906070

main90179-06070

9017906216

main90179-06216

9017906308

main90179-06308

9017908176

main90179-08176

9020909005

main90209-09005

9090179005

main90901-79005

9165140618

main91651-40618

9338116012

main93381-16012

25 parts on this diagram · 1 diagram in section
