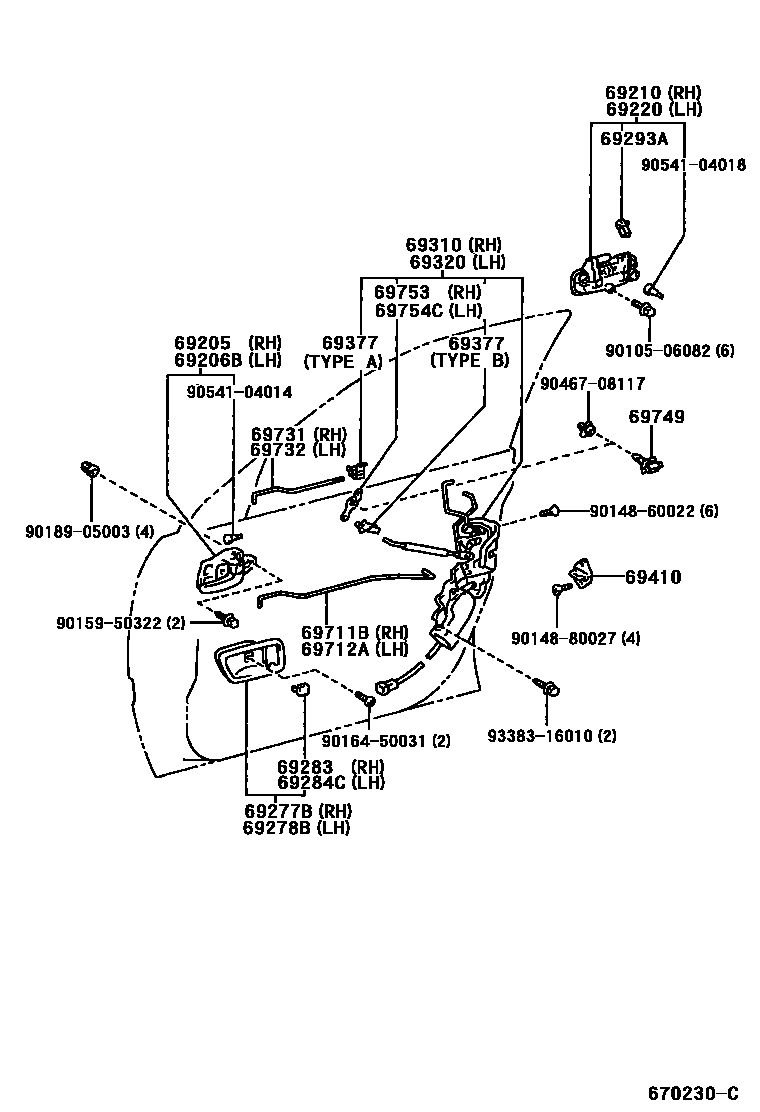

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-22080-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

sub69205-22080

main69205-22080-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

sub69205-22080

main69205-22080-E0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

ORCHID BROWN,TRIM4#

sub69205-22080

main69205-22080-G0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

DK.SAGE,TRIM6#

sub69205-22080

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-22080-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

sub69206-22080

sub69206-30120

main69206-22080-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

sub69206-22080

sub69206-30120

main69206-22080-E0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

ORCHID BROWN,TRIM4#

sub69206-22080

sub69206-30120

main69206-22080-G0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

DK.SAGE,TRIM6#

sub69206-22080

sub69206-30120

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-22220-A0iGX10#,JZX10#,LX100,SX100199609

SUPER WHITE 2,040

main69210-22220-A1iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV199609-199808

WHITE PM.,057

main69210-22220-A1iGX10#,JZX10#,LX100,SX100199808

WHITE PM.,057 ,2CF

main69210-22220-A2iGX100,JZX100..TOU,TOUS,TOUV199901-199907

main69210-22220-A2iGX100,JZX100..TOU,TOUS,TOUV199712-199807

main69210-22220-A3iGX10#,JZX100..4FC..AVT199908-200012

main69210-22220-A3iGX10#,JZX100..ATM..(AVT,TOUS,TOUV)200012-200106

main69210-22220-B0iGX100,JZX10#,LX100,SX100199609-199708

SILVER ME,199

main69210-22220-B1iGX10#,JZX10#,LX100,SX100199708

SILVER ME.,1C0

main69210-22220-D0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV199609-199808

WINE RED MC.,3L4

main69210-22220-G0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV199609-199708

GRAYISH GREEN M.M.,6N0

main69210-22220-G1iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV199609-199808

DK.GREEN MC.P.I.O.,6N9

main69210-22220-J0iGX10#,JZX10#,LX100,SX100199609

DK.BLUE MC.,8L4

main69210-22220-J1iGX10#,JZX10#,LX100,SX100199808

BLUE MC.,8M6

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-22190-A0iGX10#,JZX10#,LX100,SX100199609

SUPER WHITE 2,040

main69220-22190-A1iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV199609-199808

WHITE PM.,057

main69220-22190-A1iGX10#,JZX10#,LX100,SX100199808

WHITE PM.,057 ,2CF

main69220-22190-A3iGX100,JZX100..TOU,TOUS,TOUV199901-199907

main69220-22190-A3iGX100,JZX100..TOU,TOUS,TOUV199712-199807

main69220-22190-A4iGX10#,JZX100..4FC..AVT199908-200012

main69220-22190-A4iGX10#,JZX100..ATM..(AVT,TOUS,TOUV)200012-200106

main69220-22190-B0iGX100,JZX10#,LX100,SX100199609-199708

SILVER ME,199

main69220-22190-B1iGX10#,JZX10#,LX100,SX100199708

SILVER ME.,1C0

main69220-22190-D0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV199609-199808

WINE RED MC.,3L4

main69220-22190-G0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV199609-199708

GRAYISH GREEN M.M.,6N0

main69220-22190-G1iGX10#,JZX10#,LX100,SX100199609-199808

DK.GREEN MC.P.I.O.,6N9

main69220-22190-J0iGX10#,JZX10#,LX100,SX100199609

DK.BLUE MC.,8L4

main69220-22190-J1iGX10#,JZX10#,LX100,SX100199808

BLUE MC.,8M6

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-22090-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

sub69277-22090

main69277-22090-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

sub69277-22090

main69277-22090-E0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

ORCHID BROWN,TRIM4#

sub69277-22090

main69277-22090-G0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

DK.SAGE,TRIM6#

sub69277-22090

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-22050-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

sub69278-22050

main69278-22050-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

sub69278-22050

main69278-22050-E0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,XL199609-199808

ORCHID BROWN,TRIM4#

sub69278-22050

main69278-22050-G0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

DK.SAGE,TRIM6#

sub69278-22050

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

sub69283-30040

main69283-30040-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

sub69283-30040

main69283-30040-E1iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

ORCHID BROWN,TRIM4#

sub69283-30040

main69283-30040-G0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

DK.SAGE,TRIM6#

sub69283-30040

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

sub69284-30040

main69284-30040-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

sub69284-30040

main69284-30040-E1iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

ORCHID BROWN,TRIM4#

sub69284-30040

main69284-30040-G0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

DK.SAGE,TRIM6#

sub69284-30040

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iGX10#,JZX10#,LX100,SX100199609

main69293-12040iGX10#,JZX10#,LX100,SX100199609

69310LOCK ASSY, FRONT DOOR, RH

main69030-22410iGX10#,JZX10#,LX100,SX100199609

69320LOCK ASSY, FRONT DOOR, LH

main69040-22520iJZX105199801-199808

main69040-22520iLX100..XL;GX105,SX100199609

main69040-22530iGX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV199609

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-20410iGX10#,JZX10#,LX100,SX100199812

main69759-24050iGX10#,JZX10#,LX100,SX100199812-199905

main69759-24060iGX10#,JZX10#,LX100,SX100199812-199905

main69759-24080iGX10#,JZX10#,LX100,SX100199905

main69759-24080iGX10#,JZX10#,LX100,SX100199609-199812

main69759-24090iGX10#,JZX10#,LX100,SX100199905

main69759-24090iGX10#,JZX10#,LX100,SX100199609-199812

main69759-50040iGX10#,JZX10#,LX100,SX100199609-199812

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iGX10#,JZX10#,LX100,SX100199609

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-22120iGX10#,JZX10#,LX100,SX100199609

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-22120iGX10#,JZX10#,LX100,SX100199609

69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH

main69731-22070iGX10#,JZX10#,LX100,SX100199609

69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH

main69732-22070iGX10#,JZX10#,LX100,SX100199609

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32030iGX10#,JZX10#,LX100,SX100199609

69753BELLCRANK, DOOR LOCK CONTROL, RH

main69753-22060iGX10#,JZX10#,LX100,SX100199609

69754CBELLCRANK, DOOR LOCK CONTROL, LH

main69754-22030iGX10#,JZX10#,LX100,SX100199609

9010506082

main90105-06082

9014860022

main90148-60022

9014880027

main90148-80027

9015950322

main90159-50322

9016450031

main90164-50031

9018905003

main90189-05003

9046708117

main90467-08117

9054104014

main90541-04014

9054104018

main90541-04018

9338316010

main93383-16010

30 parts on this diagram · 1 diagram in section
