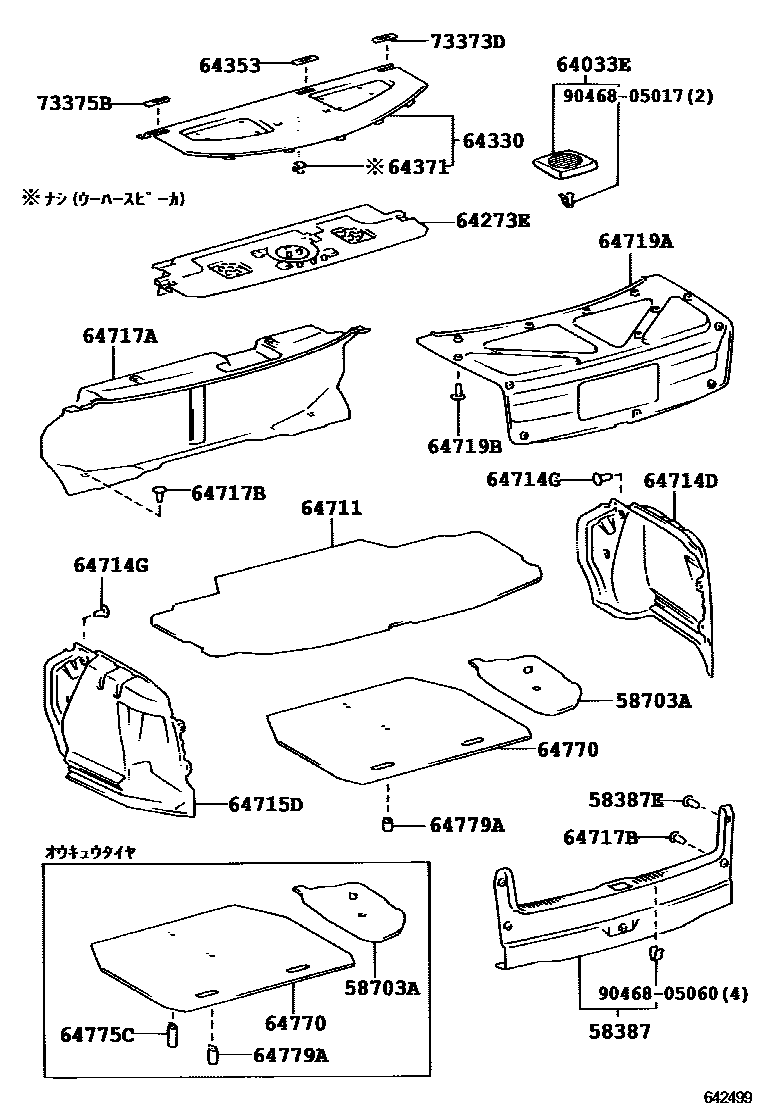

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-22060-C0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

BLACK,TRIM6#

main58387-22060-C0iLX100,SX100..XL199609-199808

BLACK,TRIM4#,6#

main58387-22060-C0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

BLACK,TRIM1#

main58387-22060-C0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,XL199808

BLACK,TRIM2#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-07168iGX10#,JZX10#,LX100,SX100199609

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-22080iGX10#,JZX10#,LX100,SX100199609

64033EGRILLE SUB-ASSY, REAR SPEAKER

main64033-22110-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK. BLUE GRAY,TRIM1#

main64033-22110-E0iGX100,JZX10#,LX100..AVT,AVTG199609-199808

ORCHID BROWN,TRIM4#

main64033-22110-G0iGX100,JZX10#,LX100..AVT,AVTG199609-199808

DK.SAGE,TRIM6#

64273EPAD, ROOM PARTITION

main64273-22030iGX10#,JZX10#,LX100,SX100199609

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-2A390-B0iGX100,JZX100..TOU,TOUS199609-199808

sub64330-2A390

main64330-2A390-C0iGX100,JZX100..TOU,TOUS,TOUV199808

sub64330-2A390

main64330-2A390-E0iGX100,JZX100,105,LX100..AVT,AVTG199609-199808

sub64330-2A390

main64330-2A390-E0iSX100..RAF199704-199808

ORCHID BROWN,TRIM4#

sub64330-2A390

main64330-2A390-G0iGX10#,JZX10#,LX100..AVT,AVTG199609-199808

sub64330-2A390

main64330-2A390-G0iSX100199704

DARK SAGE,TRIM6#

sub64330-2A390

main64330-2A400-B0iGX100,JZX100..TOU,TOUS199609-199808

main64330-2A400-C0iGX100,JZX100..TOU,TOUS,TOUV199808

main64330-2A400-E0iGX100,JZX100,105,LX100..AVT,AVTG199609-199808

main64330-2A400-G0iGX100,JZX100,105,LX100..AVT,AVTG199609-199808

main64330-2A410-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

main64330-2A410-E0iGX100,JZX10#,LX100..AVT,AVTG199609-199808

main64330-2A410-G0iGX100,JZX10#,LX100..AVT,AVTG199609-199808

main64330-2A420-B0iGX100,JZX100..TOU,TOUS199609-199808

SHADOW GRAY,TRIM1#

sub64330-2A420

main64330-2A420-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

sub64330-2A420

main64330-2A430-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

main64330-2A430-E0iGX100,JZX10#,LX100..AVT,AVTG199609-199808

main64330-2A430-G0iGX100,JZX10#,LX100..AVT,AVTG199609-199808

main64330-2A440-B0iGX100,JZX100..TOU,TOUS199609-199808

main64330-2A440-C0iGX100,JZX100..TOU,TOUS,TOUV199808

main64330-2A450-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

main64330-2A460-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

64353COVER, PACKAGE TRAY TRIM BELT HOLE

main64353-22030-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

sub64353-22030

main64353-22030-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

sub64353-22030

main64353-22030-E0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

ORCHID BROWN,TRIM4#

sub64353-22030

main64353-22030-G0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

DK.SAGE,TRIM6#

sub64353-22030

64371RETAINER, PACKAGE TRAY TRIM

main64371-16010iGX100,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199808

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-22330-C0iLX100,SX100..XL199609-199808

BLACK,TRIM6#

main64711-22330-C0iLX100,SX100..XL199609-199808

BLACK,TRIM1#

main64711-22330-C0iLX100,SX100..XL199609-199808

BLACK,TRIM4#,6#

main64711-22330-C0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,XL199808

BLACK,TRIM2#

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-22270-C0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,XL199609-199808

BLACK,TRIM4#,6#

main64714-22270-C0iLX100,SX100..XL199609-199808

BLACK,TRIM6#

main64714-22270-C0iLX100,SX100..XL199609-199808

BLACK,TRIM1#

main64714-22270-C0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,XL199808

BLACK,TRIM2#

64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)

main90467-08186iGX10#,JZX10#,LX100,SX100199609

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-22250-C0iLX100,SX100..XL199609-199808

BLACK,TRIM1#

main64715-22250-C0iLX100,SX100..XL199609-199808

BLACK,TRIM4#,6#

main64715-22250-C0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

BLACK,TRIM6#

main64715-22250-C0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,XL199808

BLACK,TRIM2#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-22130-C0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

BLACK,TRIM6#

main64717-22130-C0iLX100,SX100..XL199609-199808

BLACK,TRIM1#

main64717-22130-C0iLX100,SX100..XL199609-199808

BLACK,TRIM4#,6#

main64717-22130-C0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,XL199808

BLACK,TRIM2#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-08186iGX10#,JZX10#,LX100,SX100199609

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-22050-C0iLX100,SX100..XL199609-199808

BLACK,TRIM6#

main64719-22050-C0iLX100,SX100..XL199609-199808

BLACK,TRIM1#

main64719-22050-C0iLX100,SX100..XL199609-199808

BLACK,TRIM4#,6#

main64719-22050-C0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,XL199808

BLACK,TRIM2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186iGX10#,JZX10#,LX100,SX100199609

64770COVER ASSY, SPARE WHEEL

main64770-22130iGX100,JZX100,105,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199808

main64770-22140iGX10#,JZX10#,LX100,SX100..AVT,AVTG,TOU,XL199609-199808

main64770-22200iJZX100..TOUS,TOUV199609-199808

64775CSUPPORT, SPARE WHEEL COVER

main64775-22040iGX10#,JZX10#,LX100,SX100..AVT,AVTG,TOU,TOUS,XL199609-199808

64779ASTOPPER, SPARE WHEEL COVER

main64779-22040iGX10#,JZX10#,LX100,SX100..AVT,AVTG,TOU,TOUS,XL199609-199808

main64779-22050iLX100,SX100..RAF,XL199609

73373DCOVER, REAR SEAT SHOULDER BELT HOLE, RH

main73373-22020-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

sub73373-22020

main73373-22020-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

sub73373-22020

main73373-22020-E0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,XL199609-199808

ORCHID BROWN,TRIM4#

sub73373-22020

main73373-22020-G0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

DK.SAGE,TRIM6#

sub73373-22020

73375BCOVER, REAR SEAT SHOULDER BELT HOLE, LH

main73375-22020-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

sub73375-22020

main73375-22020-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

sub73375-22020

main73375-22020-E0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

ORCHID BROWN,TRIM4#

sub73375-22020

main73375-22020-G0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

DK.SAGE,TRIM6#

sub73375-22020

9046805017

main90468-05017

9046805060

main90468-05060

23 parts on this diagram · 1 diagram in section
