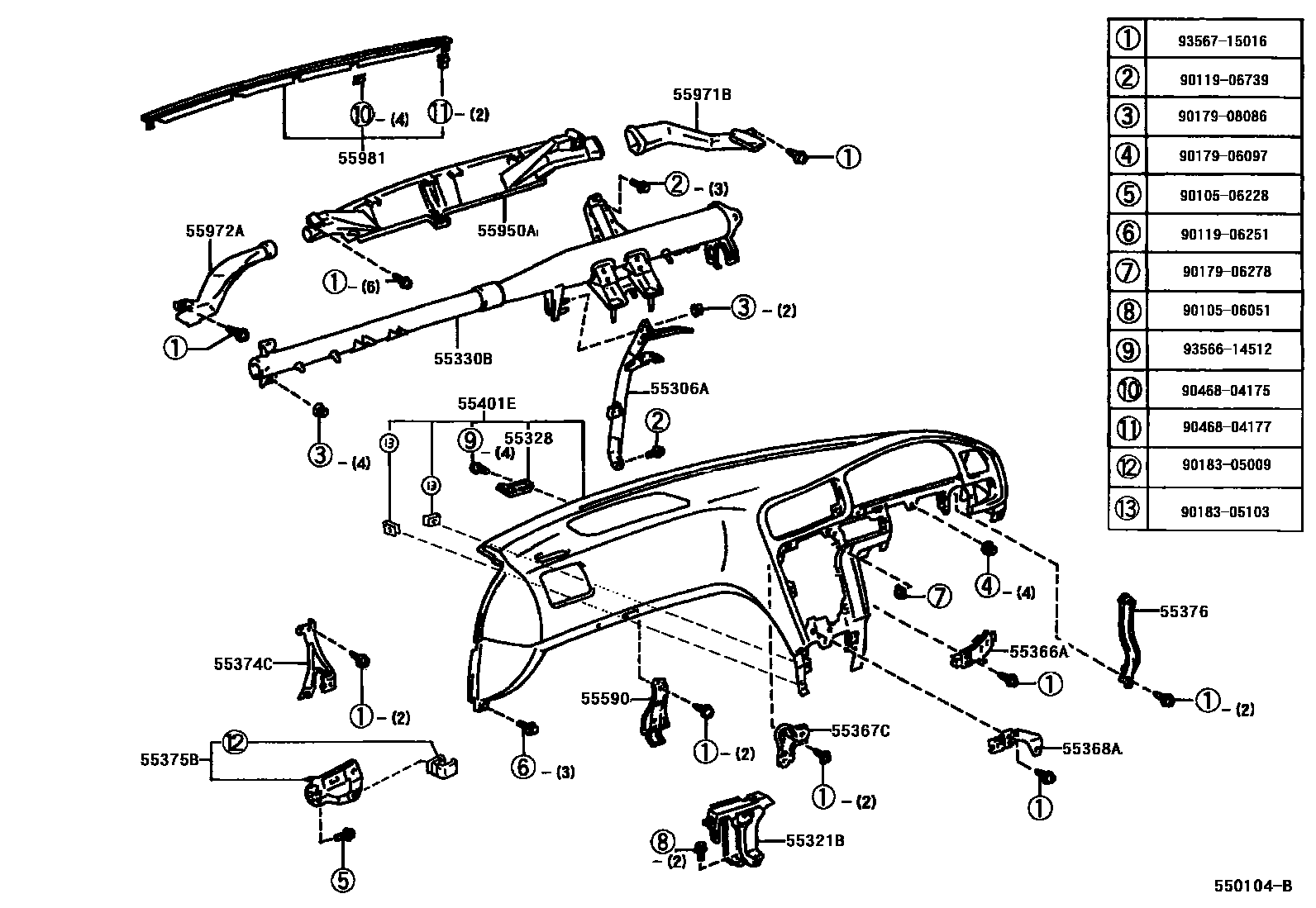

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-22210iGX100,JZX100,101,LX100,SX100199609

main55306-22220iGX105,JZX105199609

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-22110iGX10#,JZX10#,LX100,SX100199609

55328PIN, INSTRUMENT PANEL, NO.1

main55328-22040iGX10#,JZX10#,LX100,SX100199609

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-22150iJZX10#,LX100199609

main55330-22160iGX10#,SX100199609

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-22100iGX10#,JZX10#,LX100,SX100199609

55367CBRACKET, RADIO TUNER MOUNTING, NO.3

main55367-22070iGX10#,JZX10#,LX100,SX100199609

55368ABRACKET, RADIO MOUNTING, NO.2

main55368-22080iGX10#,JZX10#,LX100,SX100199609

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-22090iGX10#,JZX10#,LX100,SX100199609

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-22090iGX10#,JZX10#,LX100,SX100199609

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-22080iGX10#,JZX10#,LX100,SX100199609

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-22270-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

main55401-22270-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

main55401-22270-E0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

ORCHID BROWN,TRIM4#

main55401-22270-G0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

DK.SAGE,TRIM6#

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-22040iGX10#,JZX10#,LX100,SX100199609

55950ANOZZLE ASSY, DEFROSTER

main55950-22100iGX10#,JZX10#,LX100,SX100199609

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-22070iGX10#,JZX10#,LX100,SX100199609

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-22060iGX10#,JZX10#,LX100,SX100199609

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-22070-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

sub55981-22070

main55981-22070-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

sub55981-22070

main55981-22070-E0iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF199609-199808

ORCHID BROWN,TRIM4#

sub55981-22070

main55981-22070-G0iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

DK.SAGE,TRIM6#

sub55981-22070

9010506051

main90105-06051

9010506228

main90105-06228

9011906251

main90119-06251

9011906739

main90119-06739

9017906097

main90179-06097

9017906278

main90179-06278

9017908086

main90179-08086

9018305009

main90183-05009

9018305103

main90183-05103

9046804175

main90468-04175

9046804177

main90468-04177

9356614512

main93566-14512

9356715016

main93567-15016

29 parts on this diagram · 2 diagrams in section
