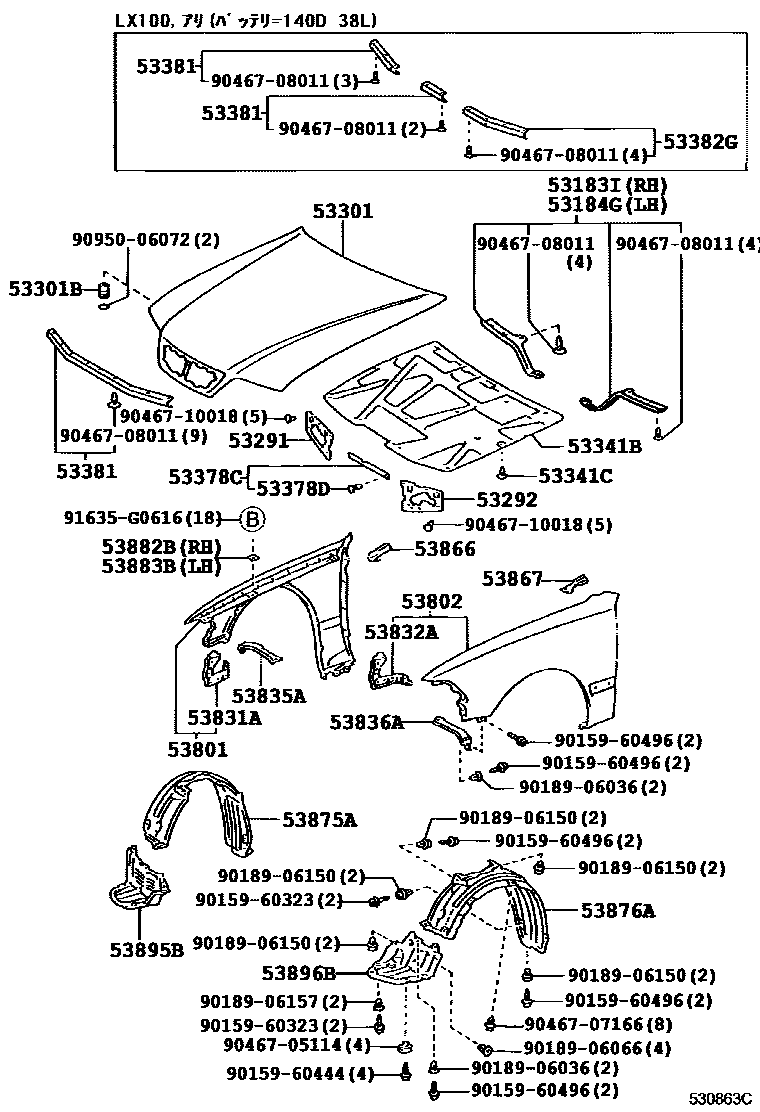

HOOD & FRONT FENDER

53183ISEAL, HEADLAMP COVER, RH

main53183-22100iGX10#,JZX10#,LX100,SX100199609

53184GSEAL, HEADLAMP COVER, LH

main53184-22060iGX10#,JZX10#,LX100,SX100199609

53291SEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-22070iGX100,JZX101,LX100,SX100199609-199709

main53291-22090iJZX100,105..AVT,AVTG199609

main53291-22110iGX10#,JZX100..4FC..AVT200012-200106

main53291-22110iGX100,JZX100..TOU,TOUS,TOUV199609-199709

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-22070iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609-199709

main53292-22110iGX10#,JZX100..4FC..AVT200012-200106

main53292-22110iJZX100..TOUS,TOUV199609-199709

53301HOOD SUB-ASSY

main53301-22340iGX10#,JZX100,105,LX100,SX100199609

main53301-22350iJZX101199609

53301BCUSHION, HOOD BUMPER

main90541-15015iGX10#,JZX10#,LX100,SX100199609

53341BINSULATOR, HOOD

main53341-22110iGX100,JZX10#,LX100,SX100199609-199808

sub53341-22140

main53341-22140iGX10#,JZX10#,LX100,SX100199808

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124iGX10#,JZX10#,LX100,SX100199609

53378CSEAL, HOOD AIR INTAKE DUCT

main53378-22030iGX10#,JZX10#,LX100,SX100199609

53378DCLIP(FOR HOOD AIR INTAKE DUCT SEAL)

main90467-08027iGX10#,JZX10#,LX100,SX100199609

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-22100iLX100199609-199908

main53381-22100iSX100199704

main53381-22110iGX10#,JZX10#,LX100199609

main53381-22140iLX100199609-199908

53382GSEAL, HOOD TO RADIATOR SUPPORT, LH

main53382-22020iLX100,SX100199609

53801FENDER SUB-ASSY, FRONT RH

main53801-2A460iGX10#,JZX10#,LX100,SX100199609

53802FENDER SUB-ASSY, FRONT LH

main53802-2A440iGX10#,JZX10#,LX100,SX100199609

53831APANEL, FRONT FENDER SIDE, UPPER RH

main53831-22160iGX10#,JZX10#,LX100,SX100199609

53832APANEL, FRONT FENDER SIDE, UPPER LH

main53832-22160iGX10#,JZX10#,LX100,SX100199609

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-22060iGX10#,JZX10#,LX100,SX100199609

53836ABRACE, FRONT FENDER TO APRON, LH

main53836-22050iGX10#,JZX10#,LX100,SX100199609

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-22080iGX10#,JZX10#,LX100,SX100199609

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-22080iGX10#,JZX10#,LX100,SX100199609

53875ALINER, FRONT FENDER, RH

main53875-22070iGX10#,JZX10#,LX100,SX100199609

53876ALINER, FRONT FENDER, LH

main53876-22060iGX10#,JZX10#,LX100,SX100199609

53882BSEAL, FRONT FENDER, RH

main53882-16030iGX10#,JZX10#,LX100,SX100199609

53883BSEAL, FRONT FENDER, LH

main53882-16030iGX10#,JZX10#,LX100,SX100199609

53895BSHIELD, FRONT FENDER SPLASH, FRONT RH

main53895-22090iJZX100..TOUV199609

main53895-22100iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199808

main53895-22140iGX10#,JZX10#,LX100,SX100..AVT,AVTG,TOU,TOUS,XL199808

53896BSHIELD, FRONT FENDER SPLASH, FRONT LH

main53896-22040iGX100,JZX10#,LX100,SX100199609-199808

main53896-22070iGX10#,JZX10#,LX100,SX100199808

9015960323

main90159-60323

9015960444

main90159-60444

9015960496

main90159-60496

9018906036

main90189-06036

9018906066

main90189-06066

9018906150

main90189-06150

9018906157

main90189-06157

9046705114

main90467-05114

9046707166

main90467-07166

9046708011

main90467-08011

9046710018

main90467-10018

9095006072

main90950-06072

91635G0616

main91635-G0616

39 parts on this diagram · 1 diagram in section
