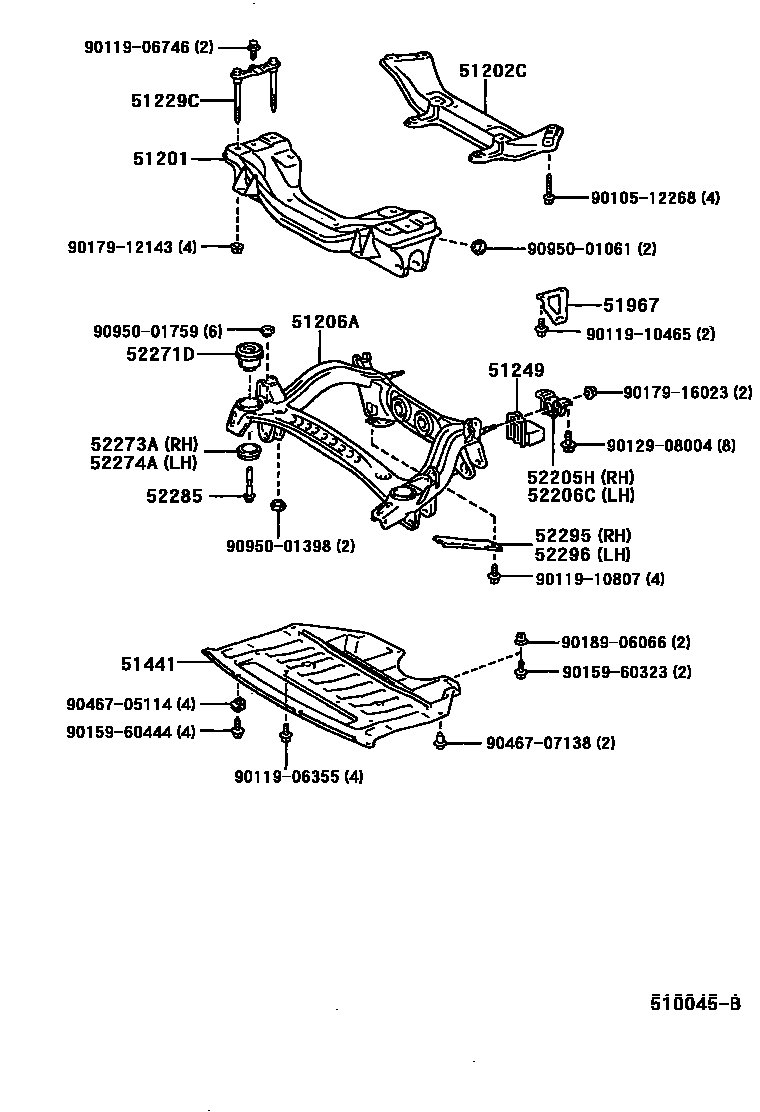

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-22580iGX105,JZX105199609-199907

sub51201-22581

main51201-22581iGX105,JZX105199907

sub51201-22582

main51201-22907iGX100,JZX100,101199609-199804

sub51201-22909

main51201-22908iLX100,SX100199609-199804

sub51201-22910

main51201-22909iGX100,JZX100,101199804

main51201-22910iLX100,SX100199804

51202CCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, LOWER

main51202-22010iGX105,JZX105199609

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-22150iGX100,JZX100,101,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-200005

sub51206-22151

main51206-22151iGX100,JZX100,101,SX100..AVT,AVTG,TOU,TOUS,XL200005

main51206-22160iJZX105;JZX100..TOUV199609-199808

sub51206-22180

main51206-22180iGX105,JZX105;JZX100..TOUV199808-200005

sub51206-22181

main51206-22181iGX105,JZX105;JZX100..TOUV200005

51229CPLATE, SUSPENSION MEMBER SET

main51229-22060iGX100,JZX100,101,LX100,SX100199609

main51229-22070iGX105,JZX105199609

51249DAMPER, REAR SUSPENSION MEMBER

main51249-22040iGX105,JZX10#,LX100,SX100..AVT,AVTG,XL199609-199808

main51249-22050iGX100..AVT199808

main51249-22060iGX100,JZX100..TOU,TOUS,TOUV199808

51441COVER, ENGINE UNDER, NO.1

main51441-22270iGX100,JZX101199609-199808

sub51441-22300

main51441-22280iGX105,JZX105199609

main51441-22290iJZX100,LX100,SX100199609-199808

sub51441-22300

main51441-22300iGX100,JZX100,101,LX100,SX100199808

51967HOOK, TRANSPORT, REAR

main51967-22070iGX10#,JZX10#,LX100,SX100199609

52205HCUSHION SUB-ASSY, BODY MOUNTING, REAR RH

main52205-22060iGX100,JZX100..TOU,TOUS,TOUV199609

main52205-22090iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

52206CCUSHION SUB-ASSY, BODY MOUNTING, REAR LH

main52205-22090iGX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

main52206-22010iGX100,JZX100..TOU,TOUS,TOUV199609

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-22100iGX100,JZX100..TOU,TOUS,TOUV199609

main52271-22120iGX100..AVT199609

main52271-22141iGX105,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-22050iGX100,JZX100..TOU,TOUS,TOUV199609

main52273-22091iGX105,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

main52273-30030iGX100..AVT199609

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-22050iGX100,JZX100..TOU,TOUS,TOUV199609

main52273-22091iGX105,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL199609

main52273-30030iGX100..AVT199609

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-22010iGX10#,JZX10#,LX100,SX100199609

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30010iGX10#,JZX10#,LX100,SX100199609

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-30010iGX10#,JZX10#,LX100,SX100199609

9010512268

main90105-12268

9011906355

main90119-06355

9011906746

main90119-06746

9011910465

main90119-10465

9011910807

main90119-10807

9012908004

main90129-08004

9015960323

main90159-60323

9015960444

main90159-60444

9017912143

main90179-12143

9017916023

main90179-16023

9018906066

main90189-06066

9046705114

main90467-05114

9046707138

main90467-07138

9095001061

main90950-01061

9095001398

main90950-01398

9095001759

main90950-01759

31 parts on this diagram · 2 diagrams in section
