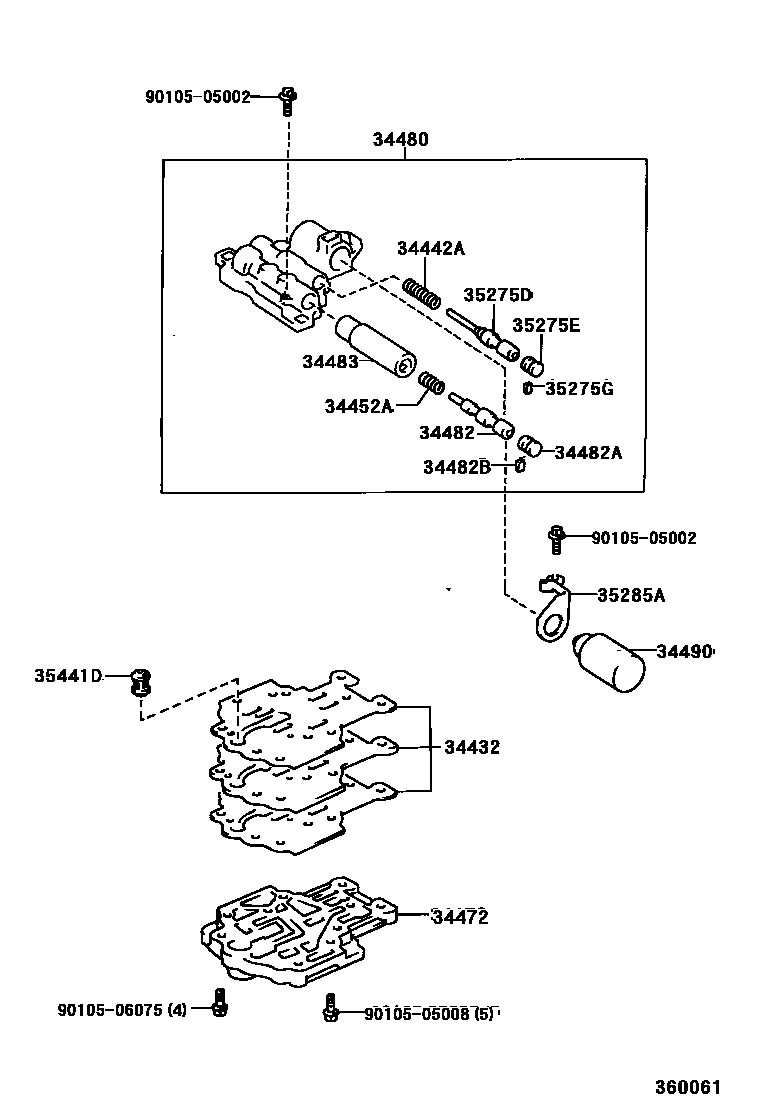

TRANSFER VALVE BODY & VALVE LEVER

34432PLATE, TRANSFER VALVE BODY, UPPER

main34403-30010iGX105,JZX105199609

34442ASPRING, COMPRESSION(FOR LOW-HIGH SHIFT VALVE)

main90501-12143iGX105,JZX105199609

34452ASPRING (FOR TRANSFER DIRECT CLUTCH MODULATOR VALVE)

main90501-06079iGX105,JZX105199609

34472COVER, TRANSFER VALVE BODY

main34472-30010iGX105,JZX105199609

34480BODY ASSY, TRANSFER UPPER VALVE

main34480-30010iGX105,JZX105199609

34482VALVE, CENTER DIFFERENTIAL CLUTCH CONTROL

main34482-30010iGX105,JZX105199609

34482ASPRING(FOR CENTER DIFFERENTIAL CONTROL VALVE)

main90339-04003iGX105,JZX105199609

34482BSEAT(FOR CENTER DIFFERENTIAL CLUTCH CONTROL VALVE PLUG)

main35493-30030iGX105,JZX105199609

34483SLEEVE, CENTER DIFFERENTIAL CLUTCH CONTROL VALVE

main34483-30010iGX105,JZX105199609

34490SOLENOID ASSY, TRANSFER CONTROL

main34490-30020iGX105,JZX105199609

35275DVALVE, TRANSFER SOLENOID MODULATOR

main35275-30010iGX105,JZX105199609

35275EPLUG (FOR TRANSFER SOLENOID MODULATOR VALVE)

main90339-04030iGX105,JZX105199609

35275GSEAT (FOR TRANSFER SOLENOID MODULATOR VALVE PLUG)

main35493-30110iGX105,JZX105199609

35285APLATE, SOLENOID LOCK

main35285-30050iGX105,JZX105199609

35441DSTRAINER, CENTER DIFFERENTIAL LOCK CLUTCH CONTROL OIL

main35441-50030iGX105,JZX105199609

9010505002

main90105-05002

9010505008

main90105-05008

9010506075

main90105-06075

18 parts on this diagram · 1 diagram in section
