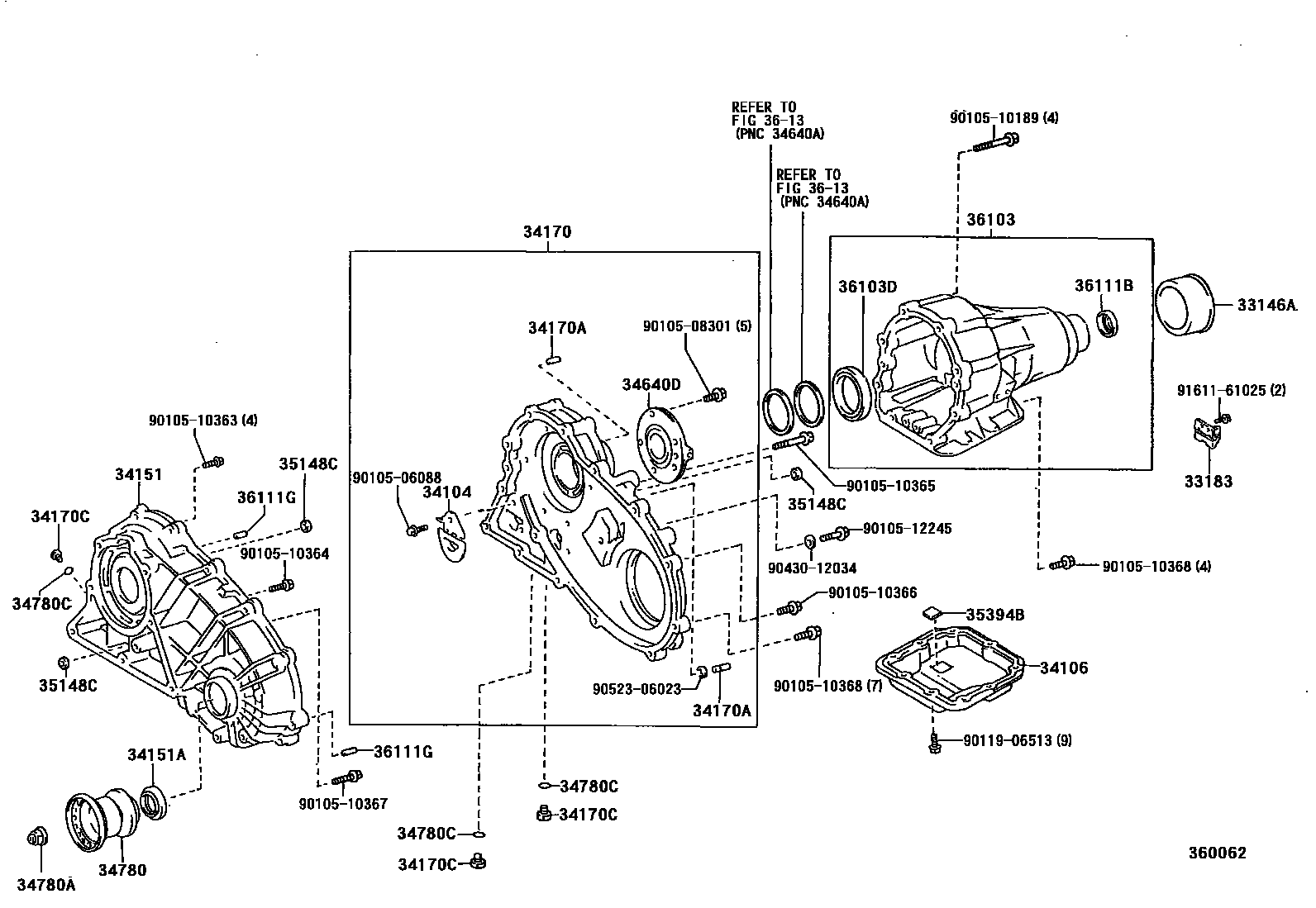

TRANSFER CASE & EXTENSION HOUSING

33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST

main33146-30020iGX105,JZX105199609

33183DAMPER, TRANSFER DYNAMIC

main33183-22010iGX105,JZX105199609

34104VALVE SUB-ASSY, TRANSFER BAFFLE

main34104-30010iGX105,JZX105199609

34106PAN SUB-ASSY, TRANSFER OIL

main34161-30011iGX105,JZX105199609

34151CASE, TRANSFER CHAIN, FRONT

main34151-30010iGX105,JZX105199609

sub34151-30011

34151ASEAL, OIL (FOR TRANSFER CHAIN CASE)

main90311-42029iGX105,JZX105199609

34170CASE ASSY, TRANSFER CHAIN, REAR

main34170-30010iGX105,JZX105199609

34170APIN, STRAIGHT (FOR TRANSFER CHAIN CASE)

main90249-10191iGX105,JZX105199609

main90250-10007iGX105,JZX105199609

34170CPLUG (FOR TRANSFER CHAIN CASE)

main90341-08001iGX105,JZX105199609

34640DSUPPORT ASSY, TRANSFER CENTER

main34640-30010iGX105,JZX105199609

34780YOKE ASSY, FLANGE

main34780-30040iGX105,JZX105199609

34780ANUT (FOR FLANGE YOKE)

main90179-22018iGX105,JZX105199609

34780CRING, O (FOR FLANGE YOKE)

main90301-06196iGX105,JZX105199609

35148CGASKET, GOVERNOR APPLY (FOR ATM TRANSFER CHAIN CASE)

main35148-12010iGX105,JZX105199609

35394BMAGNET, OIL CLEANER (FOR TRANSFER)

main35394-30011iGX105,JZX105199609

36103CASE SUB-ASSY, TRANSFER

main36101-22010iJZX105199609-199808

main36101-22020iGX105,JZX105199808

36103DBEARING (FOR TRANSFER CASE)

main90363-60007iGX105,JZX105199609

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-40001iGX105,JZX105199609

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10007iGX105,JZX105199609

main90250-13003iGX105,JZX105199609

3613

9010506088

main90105-06088

9010508301

main90105-08301

9010510189

main90105-10189

9010510363

main90105-10363

9010510364

main90105-10364

9010510365

main90105-10365

9010510366

main90105-10366

9010510367

main90105-10367

9010510368

main90105-10368

9010512245

main90105-12245

9011906513

main90119-06513

9043012034

main90430-12034

9052306023

main90523-06023

9161161025

main91611-61025

34 parts on this diagram · 1 diagram in section
