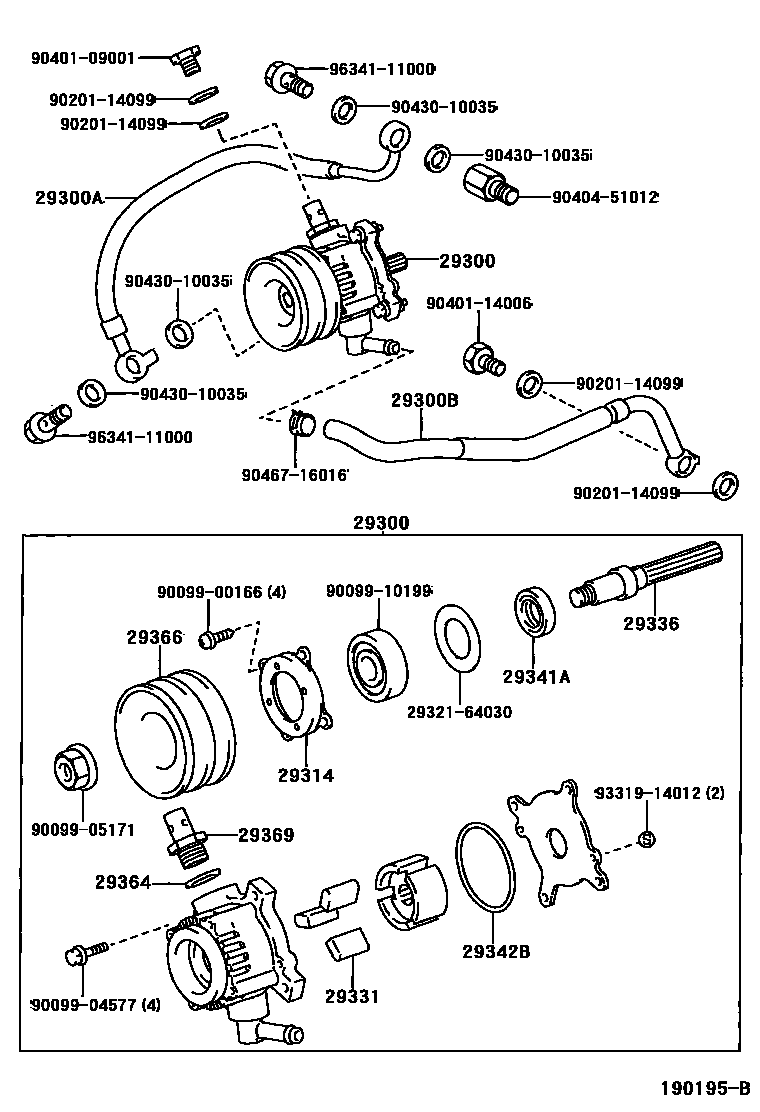

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-54160i2LTE..LX100199609-199908

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02119i2LTE..LX100199609-199908

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54090i2LTE..LX100199609-199908

29314RING, STOP

main29314-64030i2LTE..LX100199609-199908

29331BLADE, VACUUM PUMP, A

main29331-54130×5i2LTE..LX100199609-199908

29336SHAFT, VACUUM PUMP

main29336-64031i2LTE..LX100199609-199908

29341ASEAL, OIL

main29341-64030i2LTE..LX100199609-199908

29342BRING, O

main29342-64030i2LTE..LX100199609-199908

29364WASHER, VACUUM PUMP

main29364-66010i2LTE..LX100199609-199908

29366PULLEY, VACUUM PUMP

main29366-54080i2LTE..LX100199609-199908

29369VALVE SUB-ASSY, CHECK

main29369-64030i2LTE..LX100199609-199908

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009900166

main90099-00166

9009904577

main90099-04577

9009905171

main90099-05171

9009910199

main90099-10199

9020114099

main90201-14099

9040109001

main90401-09001

9040114006

main90401-14006

9040451012

main90404-51012

9043010035

main90430-10035

9046716016

main90467-16016

9331914012

main93319-14012

9634111000

main96341-11000

24 parts on this diagram · 1 diagram in section
