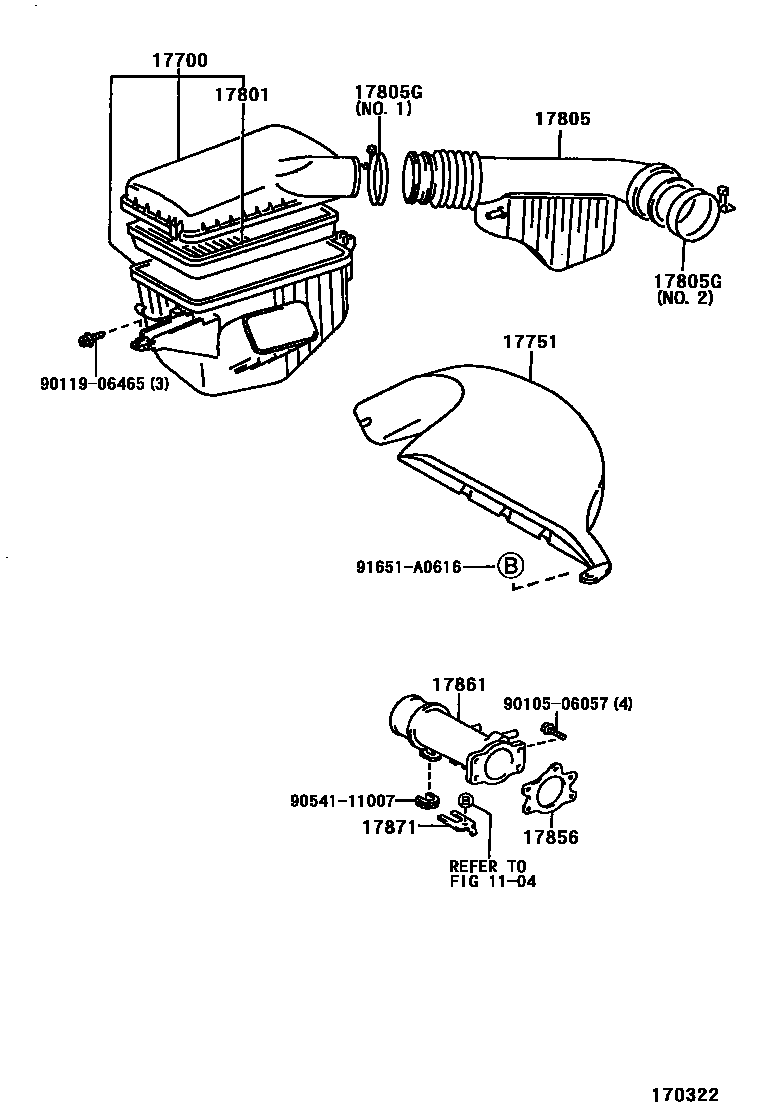

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1104

17700CLEANER ASSY, AIR

main17700-46290i1JZGTE..JZX100199609

main17700-46300i1JZGE..JZX100,105199609

main17700-46310i2JZGE..JZX101199609

main17700-54740i2LTE..LX100199609-199908

main17700-70170i1GFE..GX100199609-199808

main17700-70180i1GFE..GX10#199808-199908

main17700-70200i1GFE..GX10#199908

main17700-74670i4SFE..SX100199704

17751INLET, AIR CLEANER, NO.1

main17751-46080i1JZGTE..JZX100199609-199806

main17751-46081i1JZGTE..JZX100199806

main17751-46090i1JZGE,2JZGE..JZX10#199609

main17751-70050i1GFE..GX100199808

main17751-70090i1GFE..GX105199808

main17751-74020i4SFE..SX100199704

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-46060i1JZGTE..JZX100199609

main17801-46070i1JZGE,2JZGE..JZX10#199609

main17801-54130i2LTE..LX100199609-199908

main17801-70050i1GFE..GX10#199808

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17860-46110i1JZGE,2JZGE..JZX10#199609

main17860-70010i1GFE..GX100199609-199808

17805GCLAMP, HOSE(FOR AIR CONNECTOR)

main96111-10730i1GFE..GX100199609-199808

main96111-10850i1GFE..GX100199609-199808

17856GASKET, AIR INTAKE FLANGE

main17856-70020i1GFE..GX100199609-199808

17861CONNECTOR, INTAKE AIR

main17860-46090i2JZGE..JZX101199609-199808

main17860-46100i1JZGE..JZX100199609-199803

sub12261-46050

main17860-46101i1JZGE..JZX100199803-199807

main17860-46102i1JZGE..JZX100199807

main17860-46121i2JZGE..JZX101199808-200004

main17860-46123i2JZGE..JZX101200004

main17861-70070i1GFE..GX100199609-199808

17871STAY, AIR CONNECTOR

main17871-46020i1JZGE..JZX105199609

main17871-70040i1GFE..GX100199609-199808

9010506057

main90105-06057

9011906465

main90119-06465

9054111007

main90541-11007

91651A0616

main91651-A0616

13 parts on this diagram · 7 diagrams in section
