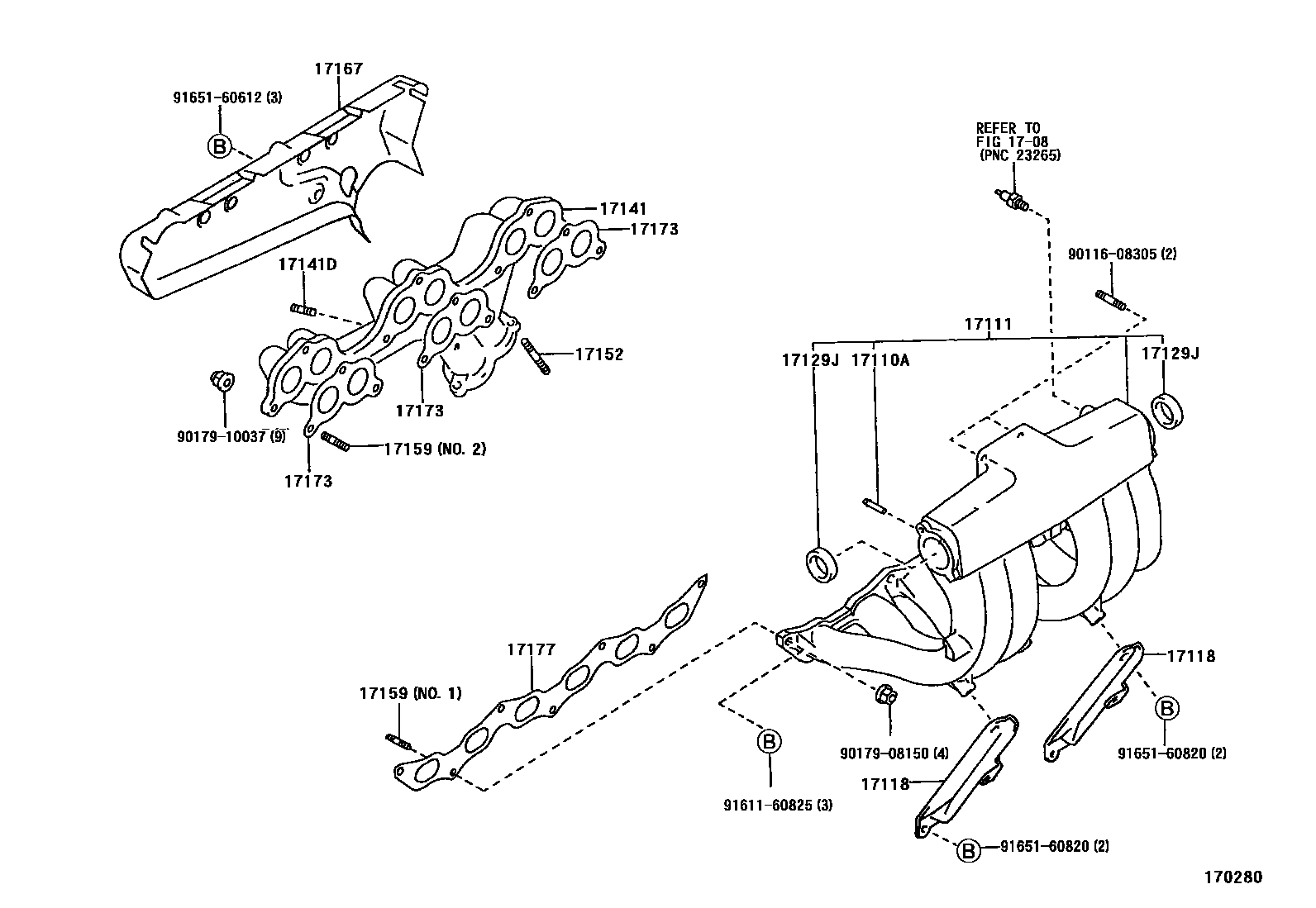

MANIFOLD
1708
17110AUNION, VACUUM HOSE
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17129TANK, INTAKE AIR SURGE
17129JPLUG, TIGHT(FOR INTAKE AIR SURGE TANK)
17141MANIFOLD, EXHAUST
17141DBOLT, STUD(FOR OXYGEN SENSOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9011608305
9017908150
9017910037
9161160825
9165160612
9165160820
19 parts on this diagram · 10 diagrams in section
