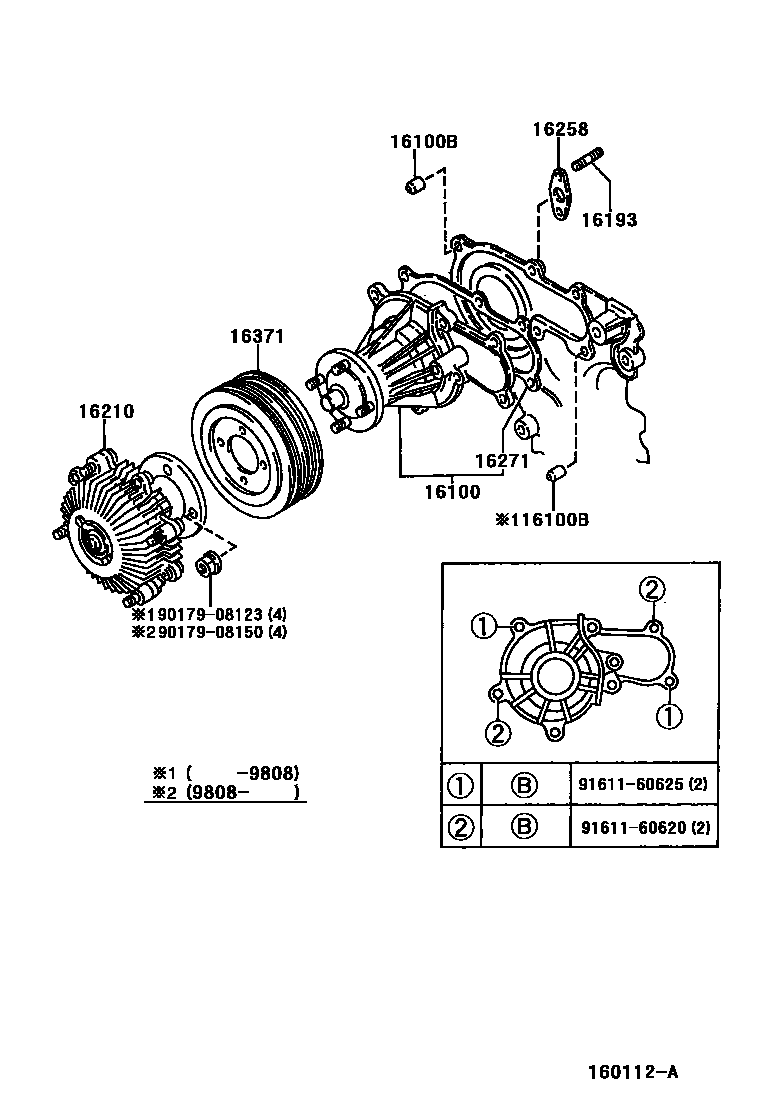

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-49836i2JZGE..JZX101199609-199909

sub16100-49837

main16100-49855i1JZGTE..JZX100199609-200106

sub16100-49856

main16100-49865i1JZGE..JZX100,105199609-199909

sub16100-49866

main16100-49866i1JZGE,2JZGE..JZX10#199909-200006

sub16100-49867

main16100-49867i1JZGE,2JZGE..JZX10#200006-200106

sub16100-49868

main16100-59155i2LTE..LX100199609-199701

sub16100-59255

main16100-59255i2LTE..LX100199701-199908

sub16100-59256

main16100-79116i1GFE..GX100199609-199803

sub16100-79117

sub90119-08B68

main16100-79117i1GFE..GX100199803-199808

main16100-79185i4SFE..SX100199704

sub16100-79186

main16100-79285i1GFE..GX10#199808

16100BPIN, RING(FOR WATER PUMP SET)

main16159-70040i1GFE..GX100199609-199808

16193BOLT, STUD(FOR WATER PUMP COVER)

main16192-70010i1GFE..GX10#199609

main16193-46030i1JZGE..JZX100,105199609-200106

main16193-46040i2JZGE..JZX101199609-199909

main90029-01500i4SFE..SX100199704

16210COUPLING ASSY, FLUID

main16210-46040i2JZGE..JZX101199609-199708

sub16210-46041

main16210-46041i2JZGE..JZX101199708-199909

sub16210-46042

main16210-46050i1JZ#..JZX100,105199609-199707

sub16210-46051

main16210-46051i1JZ#..JZX100,105199707-199909

sub16210-46052

main16210-46052i1JZ#,2JZGE..JZX10#199909-200106

main16210-54130i2LTE..LX100199609-199908

main16210-70040i1GFE..GX100199609-199808

main16210-70090i1GFE..GX10#199808

16258GASKET(FOR HEATER RETURN)

main16258-70020i1GFE..GX10#199609

main16258-74021i4SFE..SX100199704

16271GASKET, WATER PUMP

main16124-70041i1GFE..GX10#199609

main16271-54020i2LTE..LX100199609-199908

sub16271-54030

16371PULLEY, FAN

main16371-46020i2JZGE..JZX101199609-199906

main16371-46030i1JZ#..JZX100,105199609-200106

main16371-54030i2LTE..LX100199609-199908

main16371-70060i1GFE..GX10#199609

sub16371-70061

9017908123

main90179-08123

9017908150

main90179-08150

9161160620

main91611-60620

9161160625

main91611-60625

11 parts on this diagram · 5 diagrams in section
