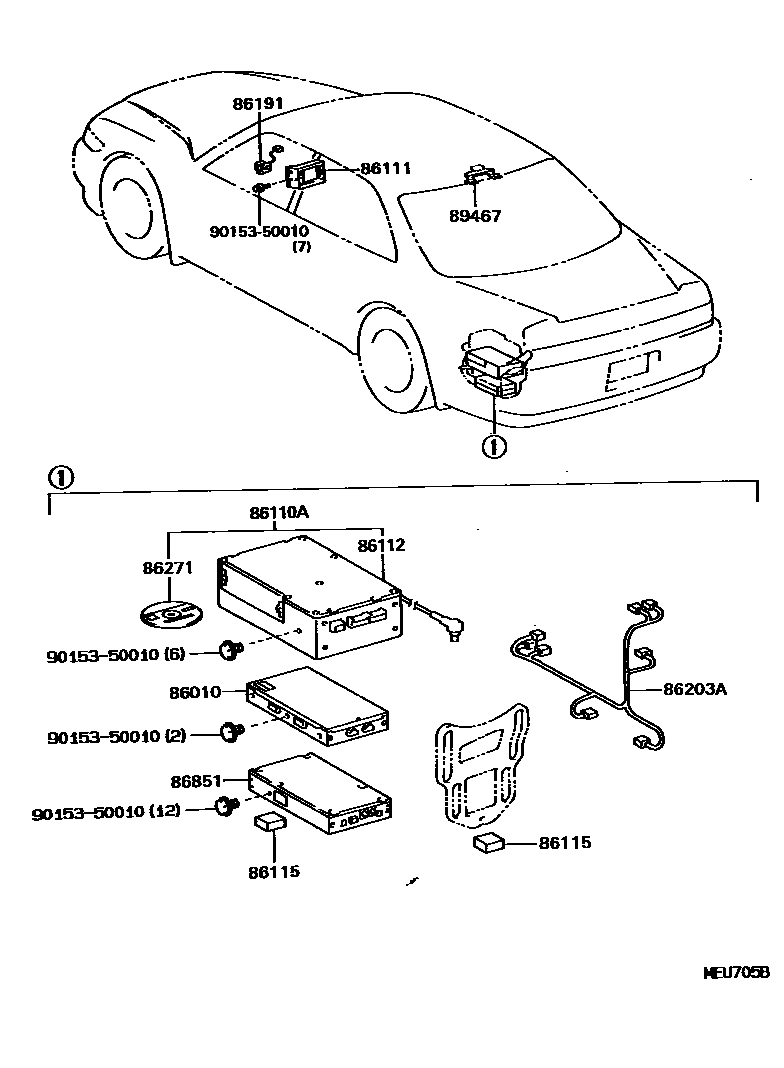

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1���AV��-���

86010TUNER ASSY, TELEVISION

main86010-22010iJZX90,91..AVT,AVTG199310-199509

86110ACONTROLLER ASSY, MULTI-DISPLAY

main86110-22010iJZX9#..AVTG199210-199310

main86110-22020iJZX9#..AVTG199210-199310

main86110-22030iJZX90,91..AVT,AVTG199409-199509

main86110-22040iJZX90,91..AVT,AVTG199409-199509

86111MULTI-DISPLAY

main86111-22010iJZX9#..AVTG199210-199310

main86111-22020iJZX9#..AVTG199210-199310

main86111-22030iJZX90,91..AVT,AVTG199409-199509

main86111-22040iJZX90,91..AVT,AVTG199409-199509

86112COMPUTER, MULTI-DISPLAY (COMPUTER CRT DISPLAY)

main86112-22010iJZX9#..AVTG199306-199310

main86112-22020iJZX90,91..AVT,AVTG199409-199509

86115TRAY, MULTI-DISPLAY COMPUTER

main86115-22010iJZX9#..AVTG199210-199310

86191TERMINAL, VIDEO(VIDEO ADAPTER)

main86191-22010iJZX9#..AVTG199210-199310

main86191-50030iGX90,JZX90,91199509-199609

86203AWIRING SUB-ASSY, TELEVISION

main86203-22070iJZX9#..AVTG199210-199310

86271DISC, DISC PLAYER

main86271-22010iJZX9#..AVTG199210-199306

main86271-22020iJZX9#..AVTG199306-199310

main86271-22030iJZX90,91..AVT,AVTG199312-199502

main86271-22040iJZX90,91..AVT,AVTG199502-199509

sub86271-22060

main86271-22050iGX90,JZX90,91199509-199609

sub86271-22090

86851RECEIVER, NAVIGATION

main86851-22010iJZX9#..AVTG199210-199310

main86851-22020iJZX90,91..AVT,AVTG199409-199509

89467BRACKET, NAVIGATION SENSOR

main89647-22010iJZX9#..AVTG199210-199310

9015350010

main90153-50010

11 parts on this diagram · 3 diagrams in section
