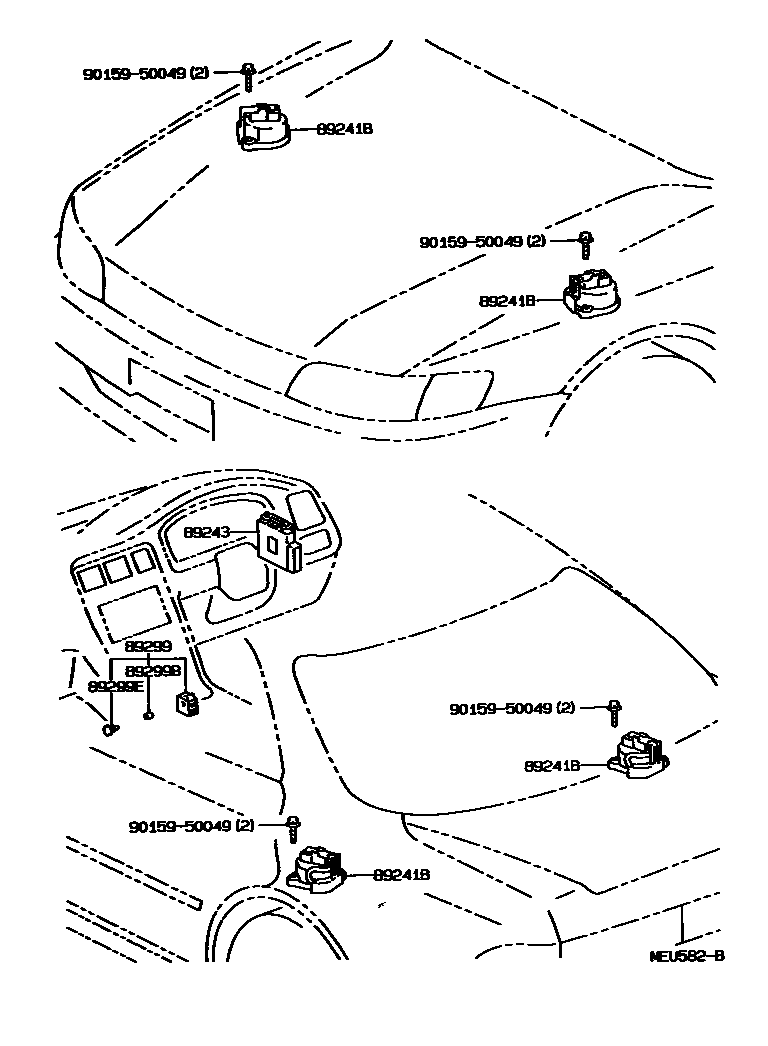

ELECTRONIC MODULATED SUSPENSION

89241BACTUATOR, ABSORBER CONTROL

main89241-22060iJZX91199210-199609

89243COMPUTER, ABSORBER CONTROL

main89243-22112iJZX91199210-199409

sub89243-22113

main89243-22113iJZX91199409-199609

89299SWITCH, SUSPENSION CONTROL

main89299-22010iJZX91199210-199609

89299BBULB(FOR SUSPENSION CONTROL SWITCH)

main84998-10670iJZX91199210-199609

89299ECAP, SUSPENSION CONTROL SWITCH BULB

main84999-10710iJZX91199210-199609

9015950049

main90159-50049

6 parts on this diagram · 1 diagram in section
