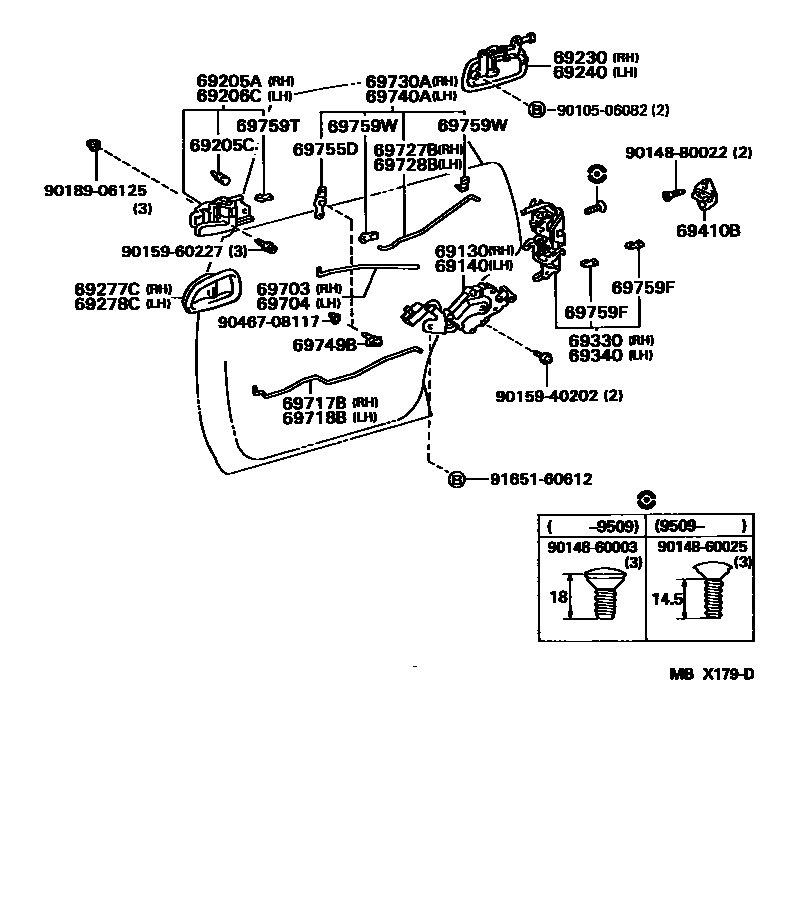

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-22050iLX90,SX90199210-199609

sub69130-22060

main69130-22060iGX90,JZX9#199210-199609

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-22050iLX90,SX90199210-199609

sub69140-22060

main69140-22060iGX90,JZX9#199210-199609

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-22070-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

BEIGE,TRIM4#

main69205-22070-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199609

JADE,TRIM6#

main69205-22070-J0iGX90,JZX90,91,LX90,SX90199210-199609

GRAYISH BLUE,TRIM8#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iGX90,JZX9#,LX90,SX90199210-199609

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-22070-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

BEIGE,TRIM4#

sub69206-12150

main69206-22070-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199609

JADE,TRIM6#

sub69206-12150

main69206-22070-J0iGX90,JZX90,91,LX90,SX90199210-199609

GRAYISH BLUE,TRIM8#

sub69206-12150

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-22100-A0iGX90,JZX9#,LX90,SX90199210-199609

SUPER WHITE 2,040

main69230-22100-A1iGX90,JZX9#199210-199609

WARM GRAY PM,046

main69230-22100-A1iGX90..ATM199304-199309

main69230-22100-A2iJZX90..AVT199310-199312

main69230-22100-A3iGX90..ATM199604-199609

main69230-22100-B0iGX90,JZX9#,LX90,SX90199210-199409

DK.BL.GRAY ME,183

main69230-22100-B1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199409-199609

SILVER ME,199

main69230-22100-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

FLAXEN MM,4M7

main69230-22100-E1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199409-199609

DK.BROWN MC.,4N2

main69230-22100-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199409

DK.GRAYISH OLIVE,6M7

main69230-22100-G1iGX90,JZX9#199210-199609

DK.GREEN MIO,6N2

main69230-22100-G1iLX90..RAF199310-199408

main69230-22100-G1iGX90..ATM;LX90..RAF199304-199309

main69230-22100-G2iGX90..ATM199504-199609

main69230-22100-H0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199310-199509

DK.TURQUOISE.MC,742

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-22100-A0iGX90,JZX9#,LX90,SX90199210-199609

SUPER WHITE 2,040

main69240-22100-A1iJZX90;GX90,JZX91,93..ATM199210-199609

WARM GRAY PM,046

main69240-22100-A1iGX90..ATM199304-199309

main69240-22100-A2iJZX90..AVT199310-199312

main69240-22100-A3iGX90..ATM199604-199609

main69240-22100-B0iGX90,JZX9#,LX90,SX90199210-199409

DK.BL.GRAY ME,183

main69240-22100-B1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199409-199609

SILVER ME,199

main69240-22100-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

FLAXEN MM,4M7

main69240-22100-E1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199409-199609

DK.BROWN MC.,4N2

main69240-22100-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199409

DK.GRAYISH OLIVE,6M7

main69240-22100-G1iGX90,JZX9#199210-199609

DK.GREEN MIO,6N2

main69240-22100-G1iGX90..ATM;LX90..RAF199304-199309

main69240-22100-G1iLX90..RAF199310-199408

main69240-22100-G2iGX90..ATM199504-199609

main69240-22100-H0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199310-199509

DK.TURQUOISE.MC,742

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69297-22060-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

SABLE,TRIM4#

sub69297-22060

main69297-22060-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199609

JADE,TRIM6#

sub69297-22060

main69297-22060-J0iJZX90..TOUS,TOUV199210-199609

GRAYISH BLUE,TRIM8#

sub69297-22060

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69298-22060-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

SABLE,TRIM4#

sub69298-22060

main69298-22060-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199609

JADE,TRIM6#

sub69298-22060

main69298-22060-J0iGX90,JZX90,91,LX90,SX90199210-199609

GRAYISH BLUE,TRIM8#

sub69298-22060

69330LOCK ASSY, REAR DOOR, RH

main69330-22220iGX90,JZX9#,LX90,SX90199210-199305

main69330-22370iGX90,JZX9#,LX90,SX90199305-199609

69340LOCK ASSY, REAR DOOR, LH

main69340-22230iGX90,JZX9#,LX90,SX90199210-199305

main69340-22390iGX90,JZX9#,LX90,SX90199305-199609

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001iGX90,JZX9#,LX90,SX90199210-199609

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69737-22140iGX90,JZX9#,LX90,SX90199210-199609

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69738-22130iGX90,JZX9#,LX90,SX90199210-199609

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-22110iGX90,JZX9#,LX90,SX90199210-199302

sub69713-22130

main69713-22130iGX90,JZX9#,LX90,SX90199302-199609

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-22110iGX90,JZX9#,LX90,SX90199210-199302

sub69714-22130

main69714-22130iGX90,JZX9#,LX90,SX90199302-199609

69727BLINK, REAR DOOR INSIDE LOCKING, NO.2 RH

main69727-22040iGX90,JZX9#,LX90,SX90199210-199609

69728BLINK, REAR DOOR INSIDE LOCKING, NO.2 LH

main69728-22040iGX90,JZX9#,LX90,SX90199210-199609

69730ALINK ASSY, REAR DOOR LOCK CONTROL, RH

main69730-22030iGX90,JZX9#,LX90,SX90199210-199609

69740ALINK ASSY, REAR DOOR LOCK CONTROL, LH

main69740-22020iGX90,JZX9#,LX90,SX90199210-199609

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32030iGX90,JZX9#,LX90,SX90199210-199609

69755DBELLCRANK, REAR DOOR LOCKING CONTROL, FRONT

main69755-22050iGX90,JZX9#,LX90,SX90199210-199609

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-24050iGX90,JZX9#,LX90,SX90199210-199609

GREEN

main69759-24060iGX90,JZX9#,LX90,SX90199210-199609

GRAY

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050iGX90,JZX9#,LX90,SX90199210-199609

PINK

main69759-24070iGX90,JZX9#,LX90,SX90199210-199609

69759WSNAP, REAR DOOR LOCK CONTROL LINK

main69759-24080iGX90,JZX9#,LX90,SX90199210-199609

main69759-24090iGX90,JZX9#,LX90,SX90199210-199609

main69759-50040iGX90,JZX9#,LX90,SX90199210-199609

NATURAL

9010506082

main90105-06082

9014860003

main90148-60003

9014860025

main90148-60025

9014880022

main90148-80022

9015940202

main90159-40202

9015960227

main90159-60227

9018906125

main90189-06125

9046708117

main90467-08117

9165160612

main91651-60612

34 parts on this diagram · 1 diagram in section
