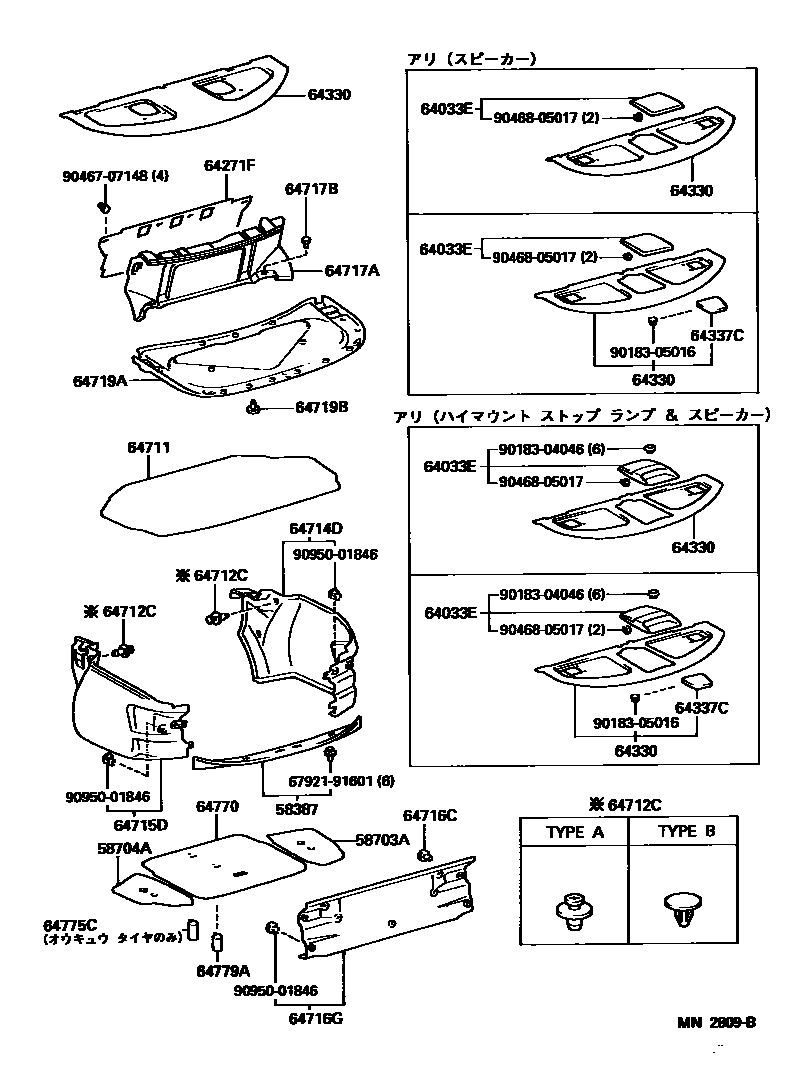

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-22030-C0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF199409-199609

BLACK,TRIM4#

main58387-22030-C0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF199210-199609

BLACK,TRIM4#,6#

main58387-22030-C0iGX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF199210-199409

BLACK,TRIM4#,6#,8#

main58387-22030-C0iGX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF199210-199409

BLACK,TRIM4#,8#

main58387-22030-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-22090iGX90,JZX9#,LX90,SX90199210-199409

sub58703-22091

main58703-22091iGX90,JZX9#,LX90,SX90199409-199609

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-22080iGX90,JZX9#,LX90,SX90199210-199609

64033EGRILLE SUB-ASSY, REAR SPEAKER

main64033-22090-E1iJZX93..AVTG199210-199609

main64033-22090-G1iJZX90..AVT,AVTG199210-199609

main64033-22090-G1iJZX90..TOUS,TOUV199210-199310

JADE,TRIM6#

main64033-22090-J1iJZX90..AVT,AVTG199210-199609

main64033-22090-J1iJZX90..TOUS,TOUV199210-199310

GRAYISH BLUE,TRIM8#

main64033-22100-E0iJZX91199210-199609

BEIGE,TRIM4#

main64033-22100-E0iJZX90..AVTG199509-199609

main64033-22100-E0iGX90,JZX90..AVT199210-199509

main64033-22100-G0iGX90,JZX93199210-199609

JADE,TRIM6#

main64033-22100-G0iJZX90..AVT,AVTG199210-199609

main64033-22100-G0iJZX90..AVT;JZX93..AVTG199509-199609

main64033-22100-J0iGX90199210-199609

main64033-22100-J0iGX90,JZX90..AVT199210-199409

GRAYISH BLUE,TRIM8#

64271FTRIM, ROOM PARTITION

main64271-22130iGX90,JZX9#,LX90,SX90199210-199609

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-2A110-G0iJZX90..TOUS,TOUV199210-199609

JADE,TRIM6#

sub64330-2A110

main64330-2A110-J0iJZX90..TOUS,TOUV199210-199609

GRAYISH BLUE,TRIM8#

sub64330-2A110

main64330-2A120-E0iGX90,JZX90,93,LX90,SX90..AVT,AVTG,RAF199210-199609

sub64330-2A120

main64330-2A120-G0iGX90,JZX90,93,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199609

sub64330-2A120

main64330-2A120-J0iJZX90..TOUS,TOUV199210-199609

sub64330-2A120

main64330-2A130-E0iGX90,JZX90,93,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

BEIGE,TRIM4#

sub64330-2A130

main64330-2A130-G0iGX90,JZX90,93,LX90,SX90..AVT,AVTG,RAF199210-199609

JADE,TRIM6#

sub64330-2A130

main64330-2A130-G0iJZX90..TOUS,TOUV199310-199609

sub64330-2A130

main64330-2A130-J0iJZX90..TOUS,TOUV199310-199609

sub64330-2A130

main64330-2A130-J0iGX90,JZX90,LX90,SX90..AVT,AVTG,RAF,XL199210-199409

GRAYISH BLUE,TRIM8#

sub64330-2A130

main64330-2A140-G0iJZX90..TOUV199210-199609

sub64330-2A140

main64330-2A140-J0iJZX90..TOUV199210-199609

sub64330-2A140

main64330-2A150-E0iGX90,JZX90..AVT199210-199609

sub64330-2A150

main64330-2A150-E0iJZX91199210-199609

sub64330-2A150

main64330-2A150-G0iJZX90..AVT;JZX93..AVTG199210-199609

sub64330-2A150

main64330-2A150-G0iJZX91199210-199609

sub64330-2A150

main64330-2A150-J0iJZX90..AVT,AVTG199210-199609

sub64330-2A150

main64330-2A150-J0iJZX91199210-199409

sub64330-2A150

main64330-2A160-E0iJZX93..AVTG199210-199609

sub64330-2A160

main64330-2A160-E0iJZX91199210-199609

BEIGE,TRIM4#

sub64330-2A160

main64330-2A160-G0iGX90,JZX93199310-199609

sub64330-2A160

main64330-2A160-G0iGX90,JZX93199210-199609

sub64330-2A160

main64330-2A160-G0iJZX91199210-199609

JADE,TRIM6#

sub64330-2A160

main64330-2A160-J0iJZX90..AVT,AVTG199210-199409

sub64330-2A160

main64330-2A160-J0iJZX90..TOUS,TOUV199310-199609

sub64330-2A160

main64330-2A160-J0iJZX91199210-199409

GRAYISH BLUE,TRIM8#

sub64330-2A160

main64330-2A180-E0iJZX90,91..AVT,AVTG199210-199409

main64330-2A180-G0iJZX90,91..AVT,AVTG199210-199409

main64330-2A180-J0iJZX90,91..AVT,AVTG199210-199409

main64330-2A190-E0iJZX9#..AVTG199210-199409

main64330-2A190-G0iJZX9#..AVTG199210-199409

main64330-2A190-J0iJZX9#..AVTG199210-199409

64337CGARNISH, PACKAGE TRAY TRIM

main64337-22040-E0iJZX9#..AVTG199210-199409

SABLE,TRIM4#

sub64337-22040

main64337-22040-G0iJZX90,91..AVT,AVTG199210-199409

JADE,TRIM6#

sub64337-22040

main64337-22040-J0iJZX9#..AVTG199210-199409

GRAYISH BLUE,TRIM8#

sub64337-22040

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-22310-C0iLX90,SX90..XL199210-199409

BLACK,TRIM4#,6#,8#

main64711-22310-C0iJZX93199210-199609

BLACK,TRIM4#,6#

main64711-22310-C0iJZX93199210-199409

BLACK,TRIM4#,8#

main64711-22310-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

main64711-22310-C0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF199409-199609

BLACK,TRIM4#

main64711-22320-C0iJZX90,91..AVT,AVTG199409-199509

main64711-22320-C0iJZX9#..AVTG199210-199409

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-07152-C0iJZX93199210-199609

sub90467-07152

main90467-07152-C0iJZX93199210-199409

sub90467-07152

main90467-07152-C0iLX90,SX90..XL199210-199609

sub90467-07152

main90467-07152-C0iLX90,SX90..XL199210-199409

sub90467-07152

main90467-07152-C0iJZX90..TOUS,TOUV199409-199609

sub90467-07152

main90467-10018iGX90,JZX9#,LX90,SX90199210-199609

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-22240-C0iJZX93199210-199609

BLACK,TRIM4#,6#

main64714-22240-C0iJZX93199210-199409

BLACK,TRIM4#,8#

main64714-22240-C0iJZX93199210-199409

BLACK,TRIM4#,6#,8#

main64714-22240-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

main64714-22240-C0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF199409-199609

BLACK,TRIM4#

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-22200-C0iLX90,SX90..XL199409-199609

BLACK,TRIM4#

main64715-22200-C0iJZX93199210-199609

BLACK,TRIM4#,6#

main64715-22200-C0iJZX93199210-199409

BLACK,TRIM4#,8#

main64715-22200-C0iJZX93199210-199409

BLACK,TRIM4#,6#,8#

main64715-22200-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

main64715-22210-C0iGX90,JZX90,91..AVT,AVTG199409-199609

main64715-22210-C0iJZX90..TOUS,TOUV199509-199609

main64715-22210-C0iJZX9#..AVTG199210-199409

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-07152-C0iGX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF199210-199409

BLACK,TRIM4#,6#,8#

sub90467-07152

main90467-07152-C0iJZX93199210-199609

BLACK,TRIM4#,6#

sub90467-07152

main90467-07152-C0iJZX93199210-199409

BLACK,TRIM4#,8#

sub90467-07152

main90467-07152-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

sub90467-07152

main90467-07152-C0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF199409-199609

BLACK,TRIM4#

sub90467-07152

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-22260-C0iJZX93199210-199409

BLACK,TRIM4#,6#,8#

main64716-22260-C0iJZX93199210-199609

BLACK,TRIM4#,6#

main64716-22260-C0iJZX93199210-199409

BLACK,TRIM4#,8#

main64716-22260-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

main64716-22260-C0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF199409-199609

BLACK,TRIM4#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-22100-C0iLX90,SX90..XL199210-199609

BLACK,TRIM4#,6#

main64717-22100-C0iLX90,SX90..XL199210-199409

BLACK,TRIM4#,8#

main64717-22100-C0iLX90,SX90..XL199210-199409

BLACK,TRIM4#,6#,8#

main64717-22100-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

main64717-22100-C0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF199409-199609

BLACK,TRIM4#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-07152-C0iJZX93199210-199409

BLACK,TRIM4#,6#,8#

sub90467-07152

main90467-07152-C0iLX90,SX90..XL199210-199609

BLACK,TRIM4#,6#

sub90467-07152

main90467-07152-C0iLX90,SX90..XL199210-199409

BLACK,TRIM4#,8#

sub90467-07152

main90467-07152-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

sub90467-07152

main90467-07152-C0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF199409-199609

BLACK,TRIM4#

sub90467-07152

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-22020-C0iLX90,SX90..XL199210-199609

BLACK,TRIM4#,6#

main64719-22020-C0iLX90,SX90..XL199409-199609

BLACK,TRIM4#

main64719-22020-C0iJZX93199210-199409

BLACK,TRIM4#,6#,8#

main64719-22020-C0iJZX93199210-199409

BLACK,TRIM4#,8#

main64719-22020-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07152-C0iGX90,JZX90,LX90,SX90..AVT,RAF199210-199609

BLACK,TRIM4#,6#

sub90467-07152

main90467-07152-C0iJZX93199210-199409

BLACK,TRIM4#,8#

sub90467-07152

main90467-07152-C0iJZX93199210-199409

BLACK,TRIM4#,6#,8#

sub90467-07152

main90467-07152-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

sub90467-07152

main90467-07152-C0iJZX90,91..AVTG199409-199609

BLACK,TRIM4#

sub90467-07152

64770COVER ASSY, SPARE WHEEL

main64770-22160iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,XL199210-199409

sub64770-22161

sub64775-22030

sub64779-22020

main64770-22161iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,XL199409-199609

main64770-22170iGX90,LX90,SX90199210-199409

sub64770-22161

sub64779-22030

main64770-22180iGX90199210-199609

main64770-22180iJZX90..TOUV199210-199609

main64770-22180iGX90..MTM;LX90,SX90..RAF199412-199609

64775CSUPPORT, SPARE WHEEL COVER

main64775-22030iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,XL199409-199609

64779ASTOPPER, SPARE WHEEL COVER

main64779-22020iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,XL199409-199609

main64779-22030iGX90,LX90,SX90199409-199609

6792191601RETAINER, FRONT DOOR SCUFF PLATE

main67921-91601

9018304046

main90183-04046

9018305016

main90183-05016

9046707148

main90467-07148

9046805017

main90468-05017

9095001846

main90950-01846

26 parts on this diagram · 1 diagram in section
