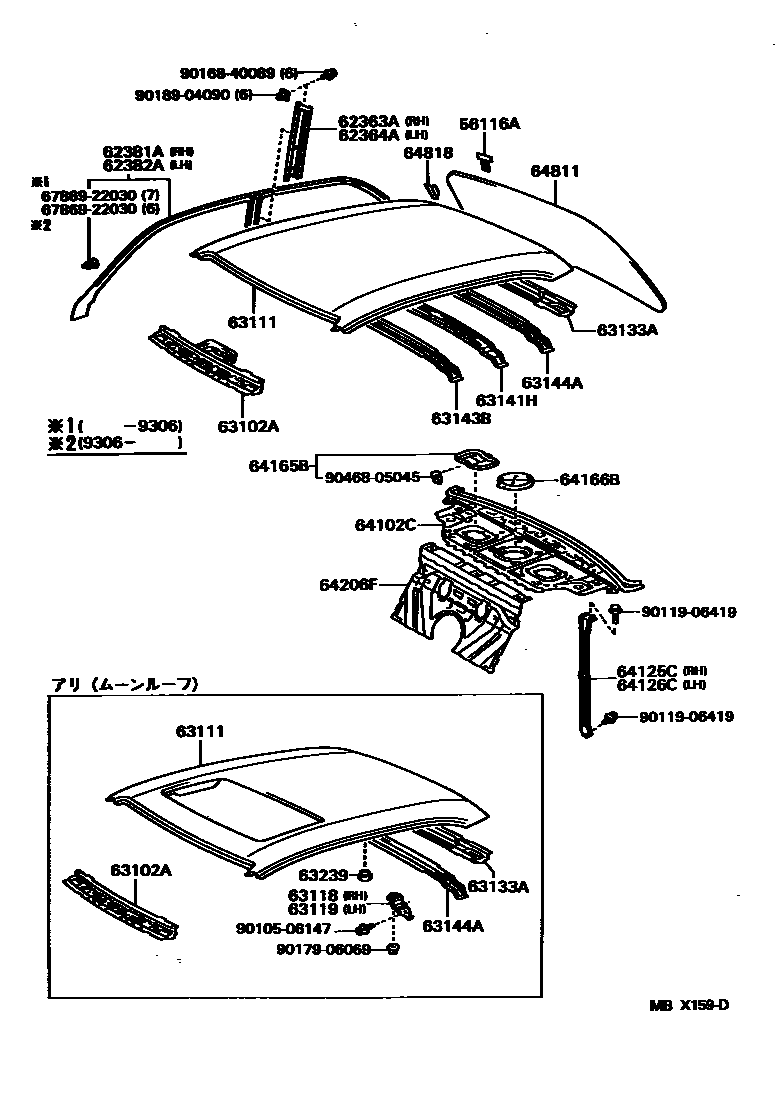

ROOF PANEL & BACK WINDOW GLASS
56116ASPACER, WINDSHIELD GLASS
PLANT NO.M21-22
PLANT NO.Q11
62363ARETAINER, ROOF SIDE RAIL WEATHERSTRIP, NO.3
62364ARETAINER, ROOF SIDE RAIL WEATHERSTRIP, NO.4
62381AWEATHERSTRIP, ROOF SIDE RAIL, RH
62382AWEATHERSTRIP, ROOF SIDE RAIL, LH
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63111PANEL, ROOF
63118SUPPORT, ROOF PANEL, RH
63119SUPPORT, ROOF PANEL, LH
63133AFRAME, BACK WINDOW, UPPER
63141HREINFORCEMENT, ROOF PANEL, CENTER
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63239STOPPER, SLIDING ROOF PANEL
64125CBRACKET, UPPER BACK PANEL, RH
64126CBRACKET, UPPER BACK PANEL, LH
64165BCOVER, UPPER BACK PANEL HOLE, NO.1
64166BCOVER, UPPER BACK PANEL HOLE, NO.2
64206FPANEL SUB-ASSY, ROOM PARTITION
64818SPACER, BACK WINDOW GLASS
6786922030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
main67869-22030
9010506147
main90105-06147
9011906419
main90119-06419
9016840089
main90168-40089
9017906069
main90179-06069
9018904090
main90189-04090
9046805045
main90468-05045
29 parts on this diagram · 2 diagrams in section
