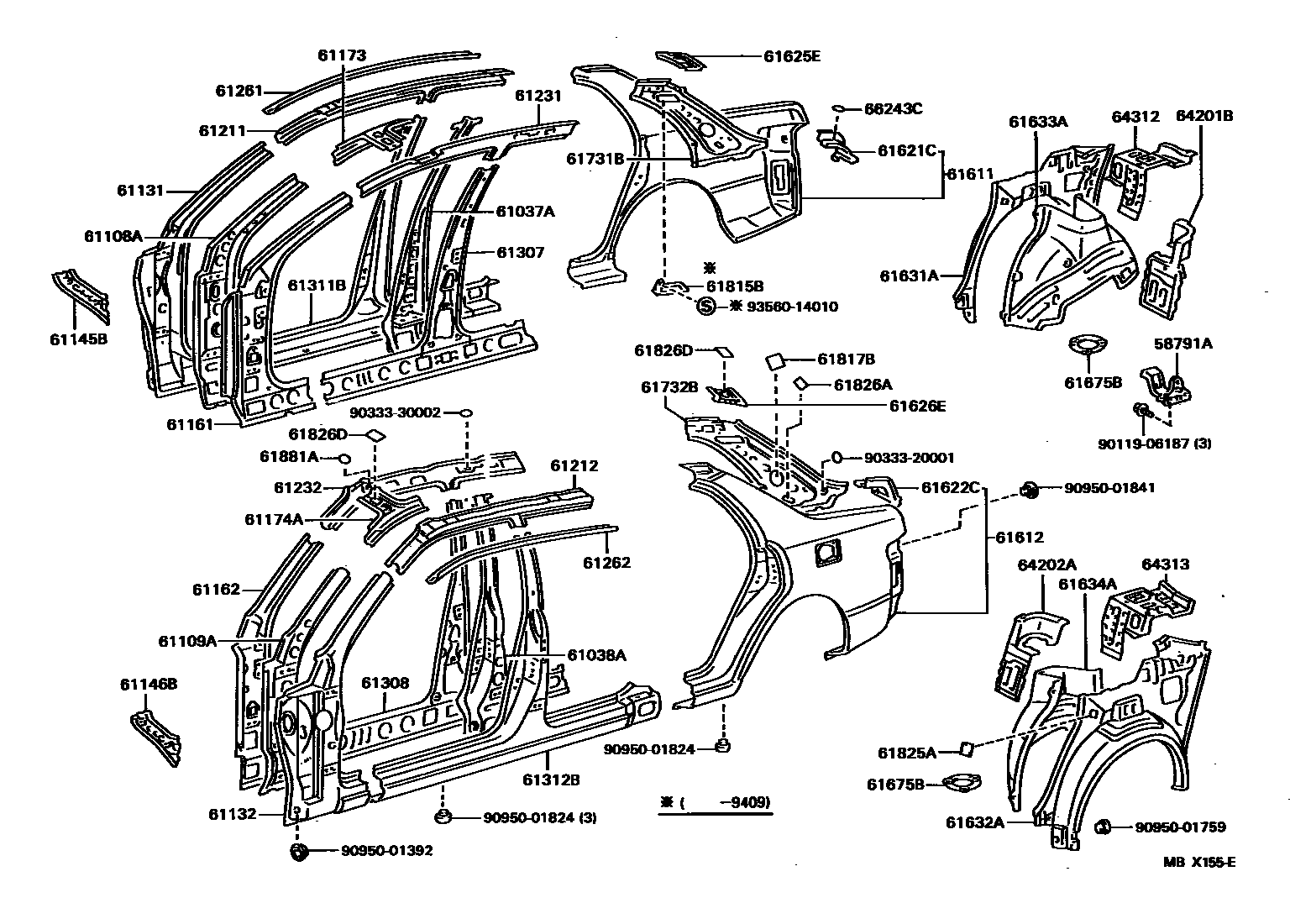

SIDE MEMBER
58791ACARRIER, JACK
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
sub61145-22071
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
sub61146-22071
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER
61174AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61625EEXTENSION, QUARTER PANEL, INNER REAR RH
61626EEXTENSION, QUARTER PANEL, INNER REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61675BREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61815BCOVER, ROOF SIDE, INNER UPPER RH
61817BCOVER, ROOF SIDE, INNER LOWER RH
61826APLATE, NOISE CONTROL, NO.3
61826DPLATE, NOISE CONTROL, NO.3
61881APLATE, DUST PROOF, NO.8
64201BSTRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH
64202ASTRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, LH
64312BRACKET, PACKAGE TRAY, RH
64313BRACKET, PACKAGE TRAY, LH
66243CPROTECTOR, REAR BODY, NO.1
9011906187
main90119-06187
9033320001
main90333-20001
9033330002
main90333-30002
9095001392
main90950-01392
9095001759
main90950-01759
9095001824
main90950-01824
9095001841
main90950-01841
9356014010
main93560-14010
55 parts on this diagram · 1 diagram in section
