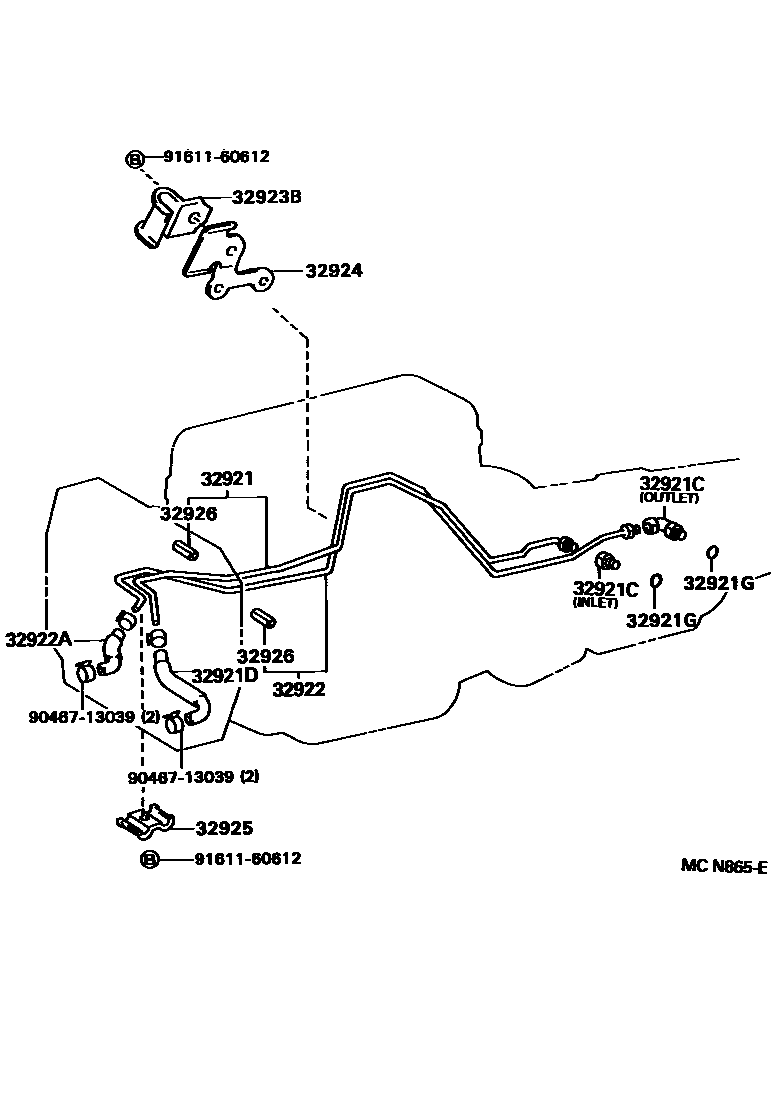

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-22620iJZX91199210-199609

main32921-22630iJZX90..AVT,AVTG,TOUS199210-199609

main32921-22640iJZX90..ATM..TOUV199210-199609

main32921-22650iGX90..ATM199210-199609

main32921-22660iSX90..ATM199210-199609

main32921-22670iLX90..ATM199210-199609

main32921-22710iJZX93199310-199609

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iGX90,LX90,SX90..ATM199210-199609

INLET

main90404-16029iJZX90,91..ATM199210-199609

INLET

main90407-14003iSX90..ATM199210-199609

OUTLET

main90407-14003iSX90..ATM199409-199609

OUTELT

main90407-16009iJZX9#..ATM199210-199609

OUTLET

main90407-16012iJZX93199310-199609

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-22260iLX90..ATM199210-199609

sub90445-15042

main32941-22280iGX90..ATM199210-199609

sub90445-15048

main32941-22300iSX90..ATM199210-199609

main32941-22320iJZX9#..AVT,AVTG,TOUS199210-199609

main32941-22360iJZX90..ATM..TOUV199210-199609

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iGX90,LX90,SX90..ATM199210-199609

main90301-11006iJZX9#..ATM199210-199609

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-22620iJZX91199210-199609

main32922-22630iJZX90..AVT,AVTG,TOUS199210-199609

main32922-22640iJZX90..ATM..TOUV199210-199609

main32922-22650iGX90..ATM199210-199609

main32922-22660iSX90..ATM199210-199609

main32922-22670iLX90..ATM199210-199603

sub32922-22760

main32922-22710iJZX93199310-199609

main32922-22760iLX90..ATM199603-199609

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-22260iGX90..ATM199210-199609

sub90445-15042

main32941-22340iJZX9#..AVT,AVTG,TOUS199210-199609

main32942-22220iLX90..ATM199210-199609

main32942-22260iSX90..ATM199210-199609

main32942-22280iJZX90..ATM..TOUV199210-199609

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-22070iLX90..ATM199210-199609

main32928-22091iSX90..ATM199210-199609

main32929-30090iGX90..ATM199210-199609

main32929-30140iJZX9#..ATM199210-199609

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-22041iLX90..ATM199210-199609

main32924-22070iSX90..ATM199210-199609

main32924-22090iJZX90,91..ATM199210-199609

main32924-22120iGX90..ATM199210-199609

main32924-22130iJZX93199310-199603

sub32924-22131

main32924-22131iJZX93199603-199609

32925CLAMP, OIL COOLER TUBE, NO.3

main32929-22050iJZX9#..ATM199210-199609

main90462-12085iGX90,LX90,SX90..ATM199210-199609

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010iGX90,SX90..ATM199210-199609

main32926-22040iLX90..ATM199210-199609

main32926-30011iSX90..ATM199210-199609

main32926-30020iJZX9#..ATM199210-199609

main32926-30030iJZX9#..ATM199210-199609

9046713039

main90467-13039

9161160612

main91611-60612

12 parts on this diagram · 5 diagrams in section
