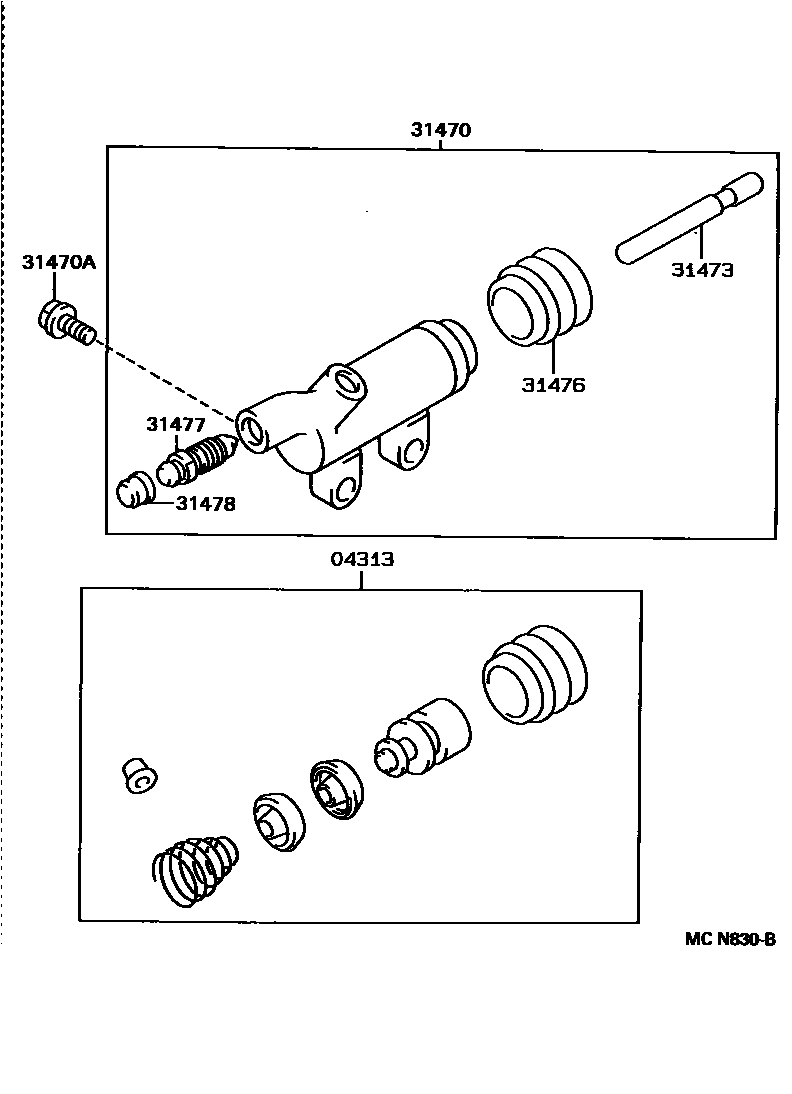

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-14010iJZX90..MTM¥1,070199210-199512

sub04313-14011¥1,070

main04313-14011iJZX90..MTM¥1,070199512-199609

main04313-17010iLX90..MTM¥780199210-199609

main04313-22030iGX90,SX90..MTM¥860199210-199609

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-14050iJZX90..MTM¥7,500199210-199609

main31470-22112iLX90..MTM¥7,400199210-199609

main31470-22170iSX90..MTM¥7,400199210-199609

main31470-22190iGX90..MTM¥7,400199210-199609

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iJZX90..MTM¥170199210-199609

main91611-60825iGX90,LX90,SX90..MTM¥140199210-199609

sub91611-B0825¥160

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14020iJZX90..MTM¥700199210-199609

main31473-20031iSX90..MTM¥470199210-199603

main31473-22030iLX90,SX90..MTM¥520199210-199609

main31473-32010iGX90..MTM¥450199210-199609

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iGX90,JZX90,LX90,SX90..MTM¥230199210-199609

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGX90,JZX90,LX90,SX90..MTM¥180199210-199609

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGX90,JZX90,LX90,SX90..MTM¥160199210-199609

7 parts on this diagram · 2 diagrams in section
