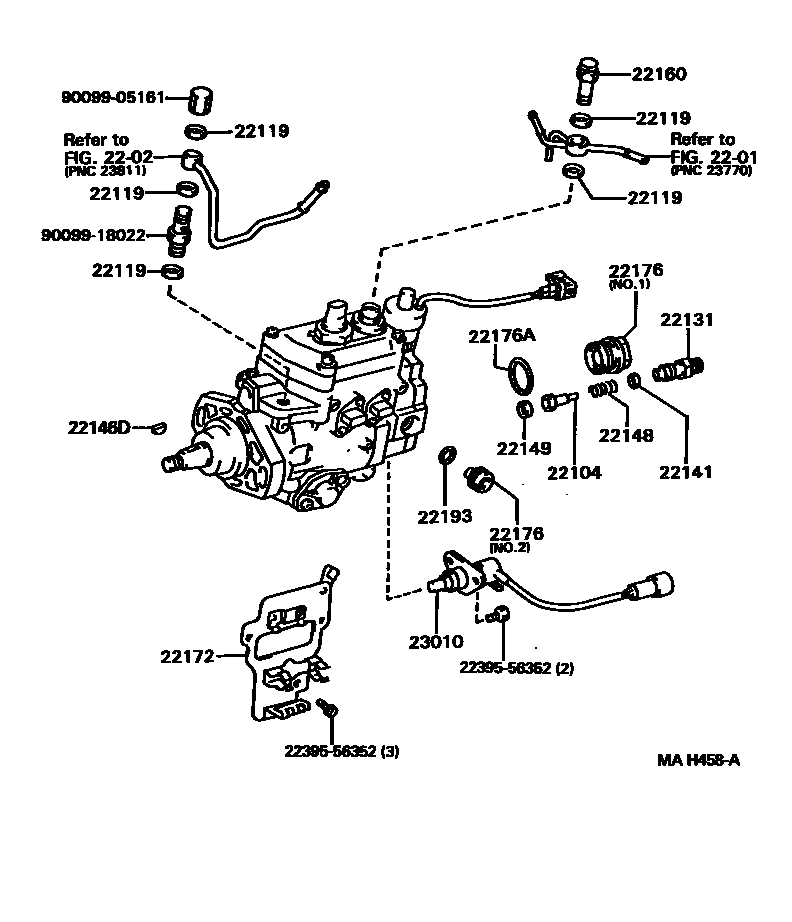

INJECTION PUMP BODY

0001 1 0002 1

2201

2202

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-5B250i2LTE..LX90199210-199509

main22104-5B440i2LTE..LX90199509-199609

22119WASHER, AIR BLEEDER NIPPLE

main90201-12109i2LTE..LX90199210-199609

22131HOLDER, DELIVERY VALVE

main22131-5B250i2LTE..LX90199210-199609

22141SEAT, DELIVERY VALVE SPRING

main22141-54010i2LTE..LX90199210-199609

22146DKEY(FOR DRIVE GEAR)

main90099-13017i2LTE..LX90199210-199609

22148SPRING, DELIVERY VALVE

main22148-5B250i2LTE..LX90199210-199609

22149GASKET, DELIVERY VALVE

main22149-56351i2LTE..LX90199210-199609

22160SCREW SUB-ASSY, OVERFLOW

main22160-54271i2LTE..LX90199210-199609

22172CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-5B300i2LTE..LX90199210-199509

main22172-67030i2LTE..LX90199509-199609

22176PLUG, DISTRIBUTIVE HEAD

main22176-54640i2LTE..LX90199210-199609

main22176-5B302i2LTE..LX90199210-199609

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main90099-14052i2LTE..LX90199210-199609

sub22193-54772

22193RING, O(FOR LEVER CONNECTING PIN)

main22193-5B302i2LTE..LX90199210-199609

23010VALVE ASSY, TIMING CONTROL

main23010-54030i2LTE..LX90199210-199509

main23010-54040i2LTE..LX90199509-199609

sub23010-67030

2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56352

9009905161

main90099-05161

9009918022

main90099-18022

18 parts on this diagram · 2 diagrams in section
