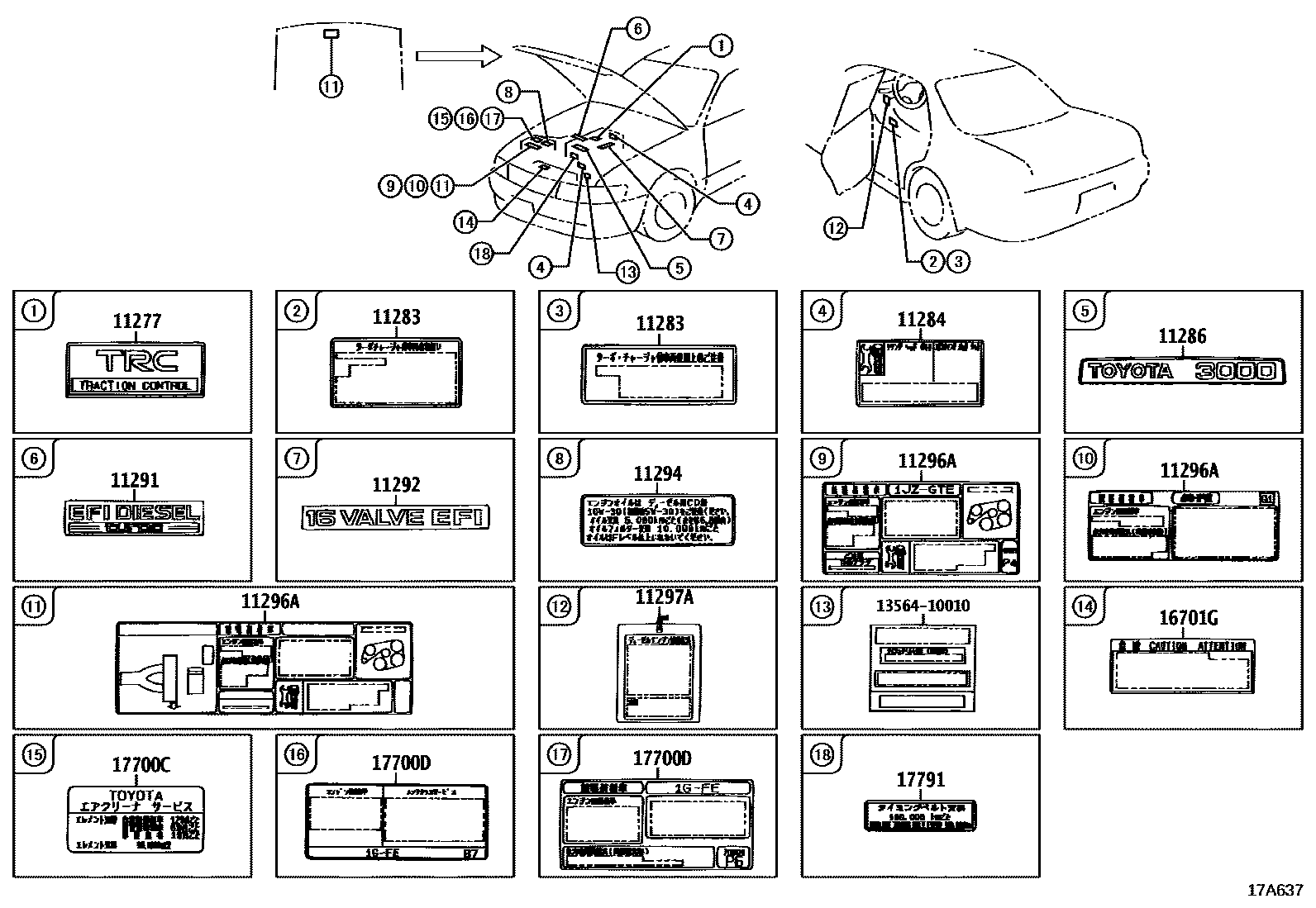

CAUTION PLATE & NAME PLATE (ENGINE)

11277PLATE, ENGINE SPECIFICATION, NO.2

main11277-46010i1JZGE..JZX90199210-199308

sub11277-46090

main11277-46040i2JZGE..JZX91199210-199308

sub11277-46100

main11277-46060i1JZGTE..JZX90199210-199609

sub11277-42020

main11277-46090i1JZGE..JZX90199409-199609

main11277-46090i1JZGE..JZX90199308-199409

main11277-46100i2JZGE..JZX91199308-199609

11283PLATE, TURBOCHARGER CAUTION

main11283-41010i1JZGTE..JZX90199210-199504

AIR CLEANER

main11294-46010i2LTE..LX90199210-199306

sub11294-55010

main11294-46010i1JZGTE..JZX90199210-199308

CONSOLE BOX

sub11294-55010

main11294-55010i2LTE..LX90199306-199609

main11294-55010i1JZGTE..JZX90199308-199504

CONSOLE BOX

11284PLATE, ENGINE BOLT INFORMATION

main11284-54040i2LTE..LX90199210-199403

main11284-74040i4SFE..SX90199305-199403

main11284-74050i4SFE..SX90199210-199305

sub11284-74040

11286PLATE, ENGINE SPECIFICATION

main11286-46050i1JZGE..JZX90,93199210-199609

main11286-46060i2JZGE..JZX91199210-199308

sub11286-46061

main11286-46061i2JZGE..JZX91199308-199609

11291PLATE, ENGINE NAME

main11291-54090i2LTE..LX90199210-199509

11292PLATE, ENGINE NAME, NO.2

main11292-74110i4SFE..SX90199210-199609

11294PLATE, ENGINE CAUTION, NO.2

main15369-54010i2LTE..LX90199210-199505

11296ALABEL, ENGINE SERVICE INFORMATION

main11296-46060i2JZGE..JZX91199210-199504

sub11296-46230

main11296-46080i1JZGE,2JZGE..JZX9#199504-199609

sub11296-46360

main11296-46100i1JZGE..JZX90,93199210-199504

sub11296-46080

main11296-46110i1JZGTE..JZX90199210-199504

sub11296-46200

main11296-46200i1JZGTE..JZX90199504-199609

main11296-54040i2LTE..LX90199505-199609

sub11296-54041

main11296-74041i4SFE..SX90199210-199405

sub11296-74042

main11296-74042i4SFE..SX90199405-199504

sub11296-74112

main11296-74112i4SFE..SX90199504-199609

11297APLATE, ENGINE START CAUTION

main11297-54011i2LTE..LX90199210-199309

16701GLABEL, CAUTION

main88723-12100i4SFE..SX90199210-199609

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main90917-07095i2LTE..LX90199210-199505

17700DPLATE, ENGINE CAUTION

main11296-70091i1GFE..GX90199210-199504

sub11296-70170

main11296-70170i1GFE..GX90199504-199609

17791LABEL, MAINTENANCE INFORMATION

main17791-15010i1JZGTE..JZX90199307-199609

main17791-55010i2LTE..LX90199210-199609

main17791-74040i1GFE,1JZGE,2JZGE,4SFE..GX90,JZX9#,SX90199210-199609

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

14 parts on this diagram · 1 diagram in section
