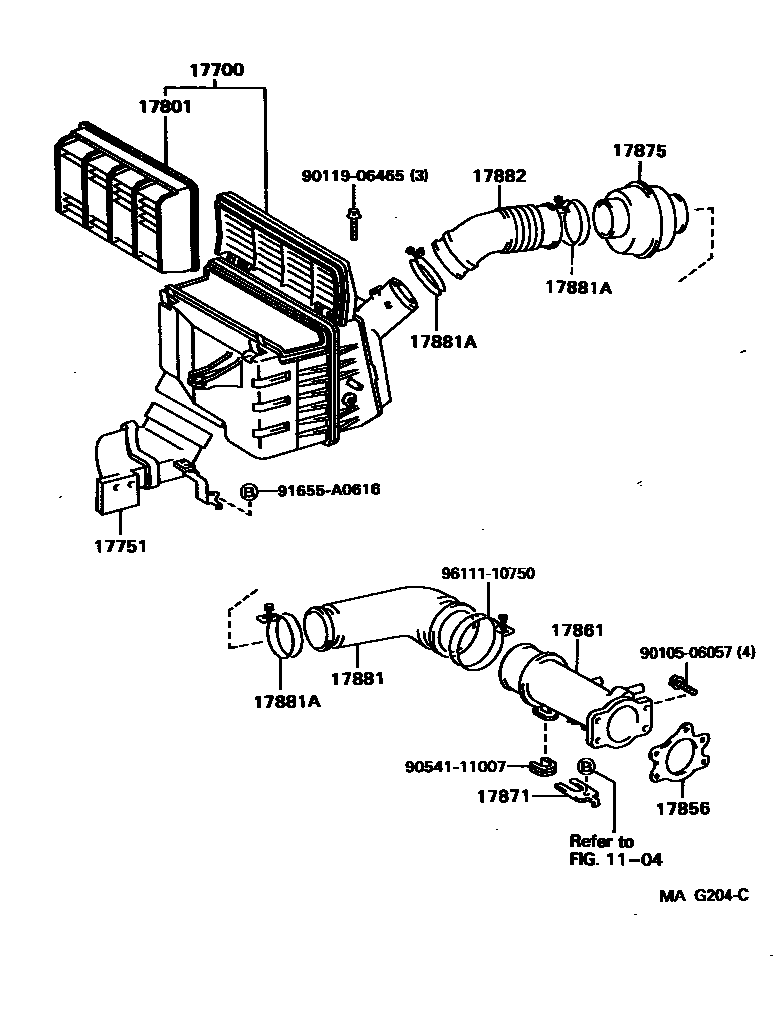

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1104

17700CLEANER ASSY, AIR

main17700-46150i1JZGE,2JZGE..JZX9#199210-199609

main17700-46160i1JZGTE..JZX90199210-199609

main17700-54740i2LTE..LX90199210-199609

main17700-70150i1GFE..GX90199210-199609

main17700-74470i4SFE..SX90199210-199609

17751INLET, AIR CLEANER, NO.1

main17751-46020i1JZGE,2JZGE..JZX9#199210-199609

main17751-46030i1JZGTE..JZX90199210-199609

main17751-70030i1GFE..GX90199210-199609

main17751-74020i4SFE..SX90199210-199609

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-46060i4SFE..SX90199210-199609

main17801-54130i2LTE..LX90199210-199609

17856GASKET, AIR INTAKE FLANGE

main17856-70020i1GFE..GX90199210-199609

17861CONNECTOR, INTAKE AIR

main17860-46010i1JZGE..JZX90,93199210-199609

main17860-46030i2JZGE..JZX91199210-199409

sub17860-46031

main17860-46030i2JZGE..JZX91199409-199512

sub17860-46031

main17860-46031i2JZGE..JZX91199512-199609

main17861-46060i1JZGE,2JZGE..JZX9#199210-199609

main17861-70070i1GFE..GX90199210-199609

main17861-88401i1JZGTE..JZX90199210-199609

17871STAY, AIR CONNECTOR

main17871-70040i1GFE..GX90199210-199609

17875PIPE, INTAKE AIR CONNECTOR

main17875-70140i1GFE..GX90199210-199609

17881HOSE, AIR CLEANER, NO.1

main17881-46140i1JZGE..JZX90,93199210-199609

main17881-46150i2JZGE..JZX91199210-199609

main17881-46160i1JZGTE..JZX90199210-199609

main17881-54520i2LTE..LX90199210-199306

sub17881-54521

main17881-54521i2LTE..LX90199306-199509

main17881-54570i2LTE..LX90199509-199609

main17881-70250i1GFE..GX90199210-199609

main17881-74470i4SFE..SX90199210-199609

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-70005i2LTE..LX90199210-199301

TURBO SIDE

sub90460-70003

main90460-73006i2LTE..LX90199301-199403

TURBO SIDE

sub90460-73011

main90460-88001i2LTE..LX90199210-199403

AIR CLEANER SIDE

main96111-10600i2LTE..LX90199509-199609

TURBO SIDE

main96111-10710i4SFE..SX90199210-199609

main96111-10730i2LTE..LX90199403-199509

TURBO SIDE

main96111-10830i1GFE..GX90199210-199609

THROTTLE BODY SIDE

main96111-10830i1JZGTE..JZX90199210-199609

main96111-10830i1JZGTE..JZX90199210-199609

AIR CONNECTOR SIDE

main96111-10880i2LTE..LX90199210-199609

AIR CLEANER SIDE

main96111-10880i2JZGE..JZX91199210-199609

main96111-10880i1GFE..GX90199409-199609

AIR CLENAER SIDE

main96111-10900i1JZGTE..JZX90199210-199609

AIR CLEANER SIDE

17882HOSE, AIR CLEANER, NO.2

main17882-46120i1JZGE,2JZGE..JZX9#199210-199609

main17882-54380i2LTE..LX90199210-199306

sub17882-54381

main17882-54381i2LTE..LX90199306-199509

main17882-54470i2LTE..LX90199509-199609

main17882-70160i1GFE..GX90199210-199609

main17882-74180i4SFE..SX90199210-199609

9010506057

main90105-06057

9011906465

main90119-06465

9054111007

main90541-11007

91655A0616

main91655-A0616

9611110750

main96111-10750

16 parts on this diagram · 6 diagrams in section
