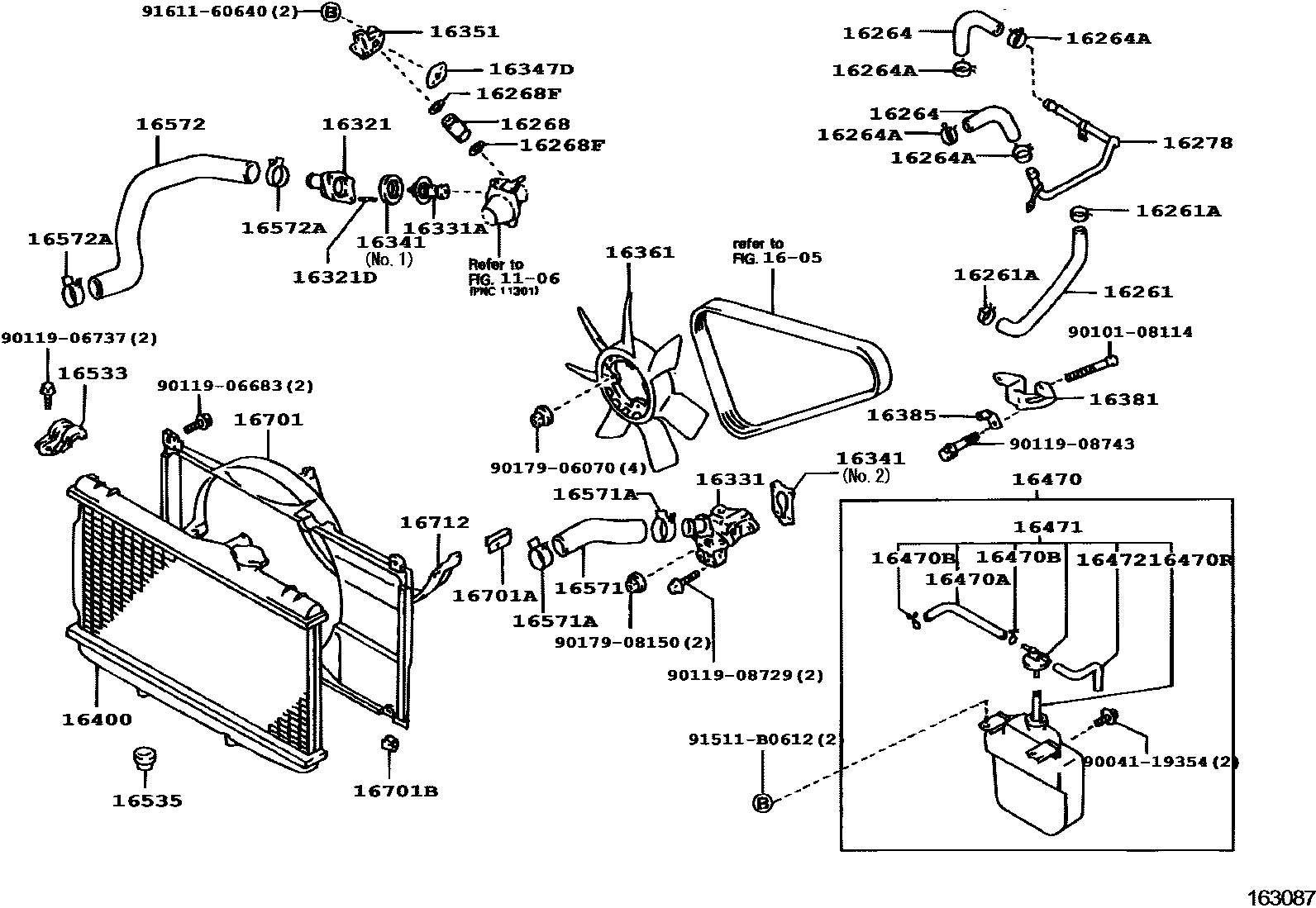

RADIATOR & WATER OUTLET
1106
1605
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub96135-51300
sub96135-51300
sub96135-51300
sub96134-41900
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
sub96135-51300
sub96135-51300
sub96134-41900
sub90467-21010
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
16321DBOLT, STUD(FOR WATER INLET)
16347DGASKET, WATER BY-PASS
16361FAN
16381BAR, FAN BELT ADJUSTING
16385SLIDER, FAN BELT ADJUSTING
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-37005
sub90467-37005
sub90467-37005
sub90466-41003
sub90467-41002
16701SHROUD SUB-ASSY, FAN
16701ACLIP(FOR FAN SHROUD)
16701BCUSHION, FAN SHROUD
16712SHROUD, FAN, NO.2
9004119354
main90041-19354
9010108114
main90101-08114
9011906683
main90119-06683
9011906737
main90119-06737
9011908729
main90119-08729
9011908743
main90119-08743
9017906070
main90179-06070
9017908150
main90179-08150
91511B0612
main91511-B0612
9161160640
main91611-60640
46 parts on this diagram · 9 diagrams in section
