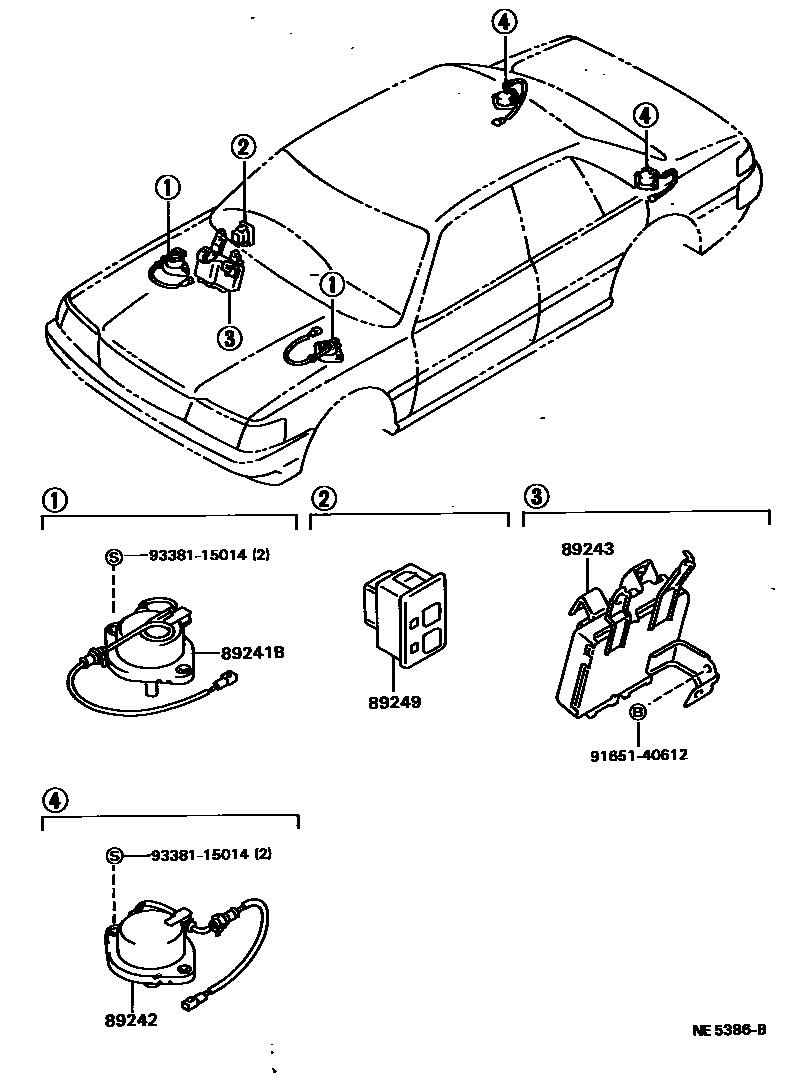

ELECTRONIC MODULATED SUSPENSION

89241BACTUATOR, ABSORBER CONTROL

main89241-22030iGX81,MX83..SPC,TWC198808-199008

sub89241-22050

main89241-22050iGX81,JZX81,MX83..TWC199008-199210

89242ACTUATOR, ABSORBER CONTROL, RR

main89242-22020iGX81,MX83..SPC,TWC198808-199008

sub89242-22040

main89242-22040iGX81,JZX81,MX83..TWC199008-199210

89243COMPUTER, ABSORBER CONTROL

main89243-22070iGX81,MX83..SPC,TWC198808-199008

sub89243-22090

main89243-22090iGX81,JZX81,MX83..TWC199008-199210

89249SWITCH, ABSORBER CONTROL

main89249-22050iGX81,JZX81,MX83..SPC,TWC198808-199210

9165140612

main91651-40612

9338115014

main93381-15014

6 parts on this diagram · 1 diagram in section
