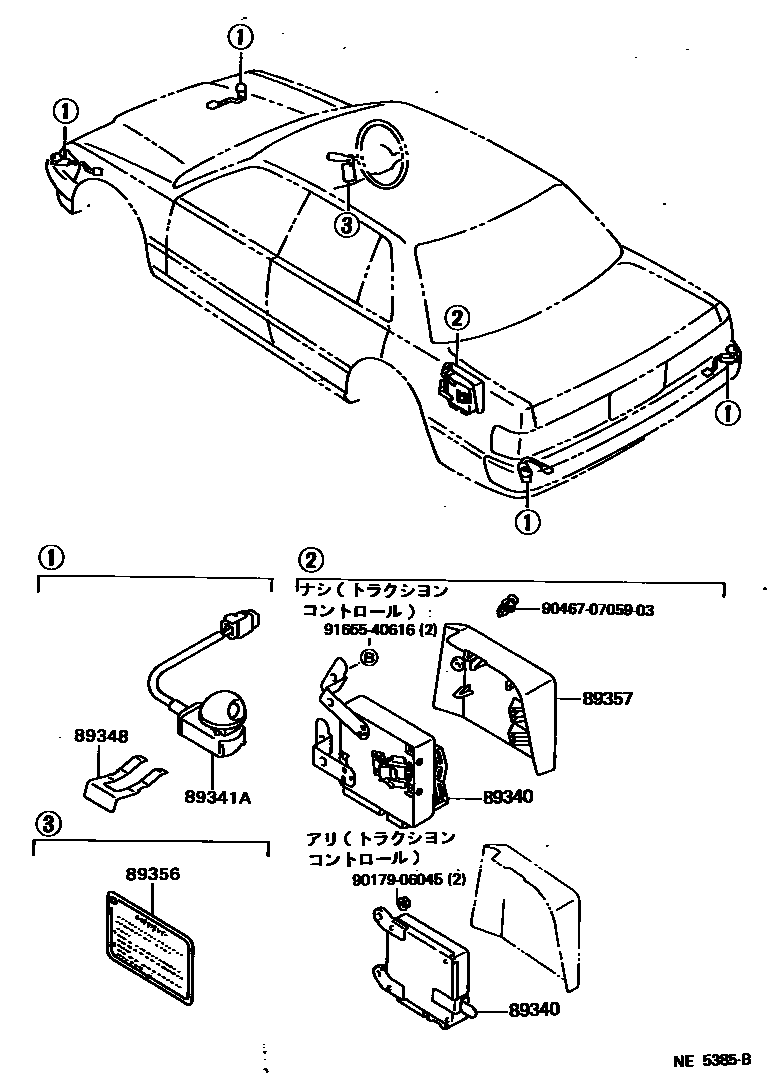

CLEARANCE & BACK SONAR

89340COMPUTER ASSY, REAR CLEARANCE WARNING

main89340-22010iGX81..AVT,AVTG,GT198808-198811

main89340-22030iGX81..SPC198908-199008

main89340-22050iJZX81,MX83..AVTG,GT198908-199210

89341ASENSOR, ULTRASONIC, NO.1

main89341-22010-01×2iJZX81,MX83199008-199103

EXCELENT T0NNING,24S,FRONT

sub89341-22020

main89341-22010-02×2iGX81..AVT,GT198808-198908

DARK RED MICA,3H3,FRONT

sub89341-22020

main89341-22010-03×2iGX81..AVT,GT198808-199008

MIST GRAY,177,FRONT

sub89341-22020

main89341-22010-04×2iGX81,MX83..AVT,AVTG,GT198903-199008

BLUE MICA,8E3,FRONT

sub89341-22020

main89341-22010-07×2iGX81,JZX81,MX83..AVT,AVTG,GT199008-199103

DARK GRAISH GREEN M,6L8,FRONT

sub89341-22020

main89341-22010-08×2iGX81,JZX81,MX83..AVTG198808-199103

WHITE PEARL MICA,22K,FRONT

sub89341-22020

main89341-22010-12×2iGX81,JZX81,MX83..AVT,AVTG,GT199008-199103

DARK MAUVE MICA,3K1,FRONT

sub89341-22020

main89341-22010-13×2iGX81,MX83..AVT,AVTG,GT198808-199008

GRAY MICA M,170,FRONT

sub89341-22020

main89341-22010-14×2iGX81,JZX81,MX83..AVT,AVTG,GT199008-199103

BLUE M,869,FRONT

sub89341-22020

main89341-22010-15×2iGX81,JZX81,MX83..AVT,AVTG,GT199008-199103

BEIGE M.M.,4J1,FRONT

sub89341-22020

main89341-22010-18×2iGX81,JZX81,MX83..AVT,AVTG,GT198808-199103

SUPER WHITE 4,050,FRONT

sub89341-22020

main89341-22010-23×2iGX81,MX83..AVT,AVTG,GT198908-199008

GREENISH SILVER M,174,FRONT

sub89341-22020

main89341-22010-33×2iGX81,JZX81,MX83..AVT,AVTG,GT198908-199103

DARK BLUEISH GRAY M,183,FRONT

sub89341-22020

main89341-22010-43×2iJZX81,MX83..TWC199008-199103

BLUISH GRAY M,182,FRONT

sub89341-22020

main89341-22011-31×2iGX81,JZX81,MX83..AVT,AVTG,GT199103-199210

DARK MAUVE MICA,3K1,FRONT

main89341-22011-41×2iGX81,JZX81,MX83..AVT,AVTG,GT199103-199210

BEIGE M.M.,4J1,FRONT

main89341-22011-A0×2iGX81,JZX81,MX83..AVT,AVTG,GT199103-199210

SUPER WHITE 4,050,FRONT

main89341-22011-A1×2iJZX81,MX83..AVTG199103-199210

WHITE PEARL MICA,22K,FRONT

main89341-22011-B0×2iGX81,JZX81,MX83..AVT,AVTG,GT199103-199210

DARK BLUEISH GRAY M.,183,FRONT

main89341-22011-B1×2iJZX81,MX83..TWC199103-199210

BLUEISH GRAY M.,182,FRONT

main89341-22011-C0×2iJZX81,MX83199103-199210

EXCELENT TONNING,24S,FRONT

main89341-22011-G0×2iGX81,JZX81,MX83..AVT,AVTG,GT199103-199210

DARK GRAISH GREEN M.,6L8,FRONT

main89341-22011-J0×2iGX81,JZX81,MX83..AVT,AVTG,GT199103-199210

BLUE M.,869,FRONT

main89341-22030-01×2iJZX81,MX83199008-199103

EXCELENT T0NNING,24S,REAR

main89341-22030-02×2iGX81..AVT,GT198808-198908

DARK RED MICA,3H3,REAR

main89341-22030-03×2iGX81..AVT,GT198808-199008

MIST GRAY M,177,REAR

main89341-22030-04×2iGX81,MX83..AVT,AVTG,GT198903-199008

BLUE MICA,8E3,REAR

main89341-22030-05×2iGX81,JZX81,MX83..AVT,AVTG,GT199008-199103

BEIGE M M,4J1,REAR

main89341-22030-07×2iGX81,JZX81,MX83..AVT,AVTG,GT199008-199103

DRAK GRAISH GREEN M,6L8,REAR

main89341-22030-08×2iGX81,JZX81..AVT,GT198808-199103

WHITE PEARL MICA,049 ,22K,REAR

main89341-22030-12×2iGX81,JZX81,MX83..AVT,AVTG,GT199008-199103

DARK MAUVE MICA,3K1,REAR

main89341-22030-13×2iGX81,MX83..AVT,AVTG,GT198808-199008

GRAY MICA M,170,REAR

main89341-22030-14×2iGX81,JZX81,MX83..AVT,AVTG,GT199008-199103

BLUE M,869,REAR

main89341-22030-18×2iGX81,JZX81,MX83..AVT,AVTG,GT198808-199103

SUPER WHITE 4,050,REAR

main89341-22030-23×2iGX81,MX83..AVT,AVTG,GT198908-199008

GREENISH SILVER M,174,REAR

main89341-22030-33×2iGX81,JZX81,MX83..AVT,AVTG,GT198908-199103

DARK BLUEISH GRAY M,183,REAR

main89341-22030-43×2iJZX81,MX83..TWC199008-199103

BLUISH GRAY M,182,REAR

main89341-22031-31×2iGX81,JZX81,MX83..AVT,AVTG,GT199103-199210

DARK MOUVE MICA,3K1,REAR

main89341-22031-41×2iGX81,JZX81,MX83..AVT,AVTG,GT199103-199210

BEIGE MICA METALLIC,4J1,REAR

main89341-22031-A0×2iGX81,JZX81,MX83..AVT,AVTG,GT199103-199210

SUPER WHITE 4,050,REAR

main89341-22031-A1×2iJZX81,MX83..AVTG199103-199210

WHITE PEARL MICA,049 ,22K,REAR

main89341-22031-B0×2iGX81,JZX81,MX83..AVT,AVTG,GT199103-199210

DARK BLUEISH GRAY M.,183,REAR

main89341-22031-B1×2iJZX81,MX83..TWC199103-199210

BLUEISH GRAY M.,182,REAR

main89341-22031-C0×2iJZX81,MX83199103-199210

EXCELENT TONNING,24S,REAR

main89341-22031-G0×2iGX81,JZX81,MX83..AVT,AVTG,GT199103-199210

DARK GRALSH GREEN M.,6L8,REAR

main89341-22031-J0×2iGX81,JZX81,MX83..AVT,AVTG,GT199103-199210

BLUE M.,869,REAR

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-22010×4iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

89356LABEL, CLEARANCE WARNING INFORMATION

main89356-22010iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

89357COVER, CLEARANCE COMPUTER

main89357-22010iJZX81..AVT;GX81..AVT,AVTG,GT198808-199210

9017906045

main90179-06045

904670705903

main90467-0705903

9165540616

main91655-40616

8 parts on this diagram · 1 diagram in section
