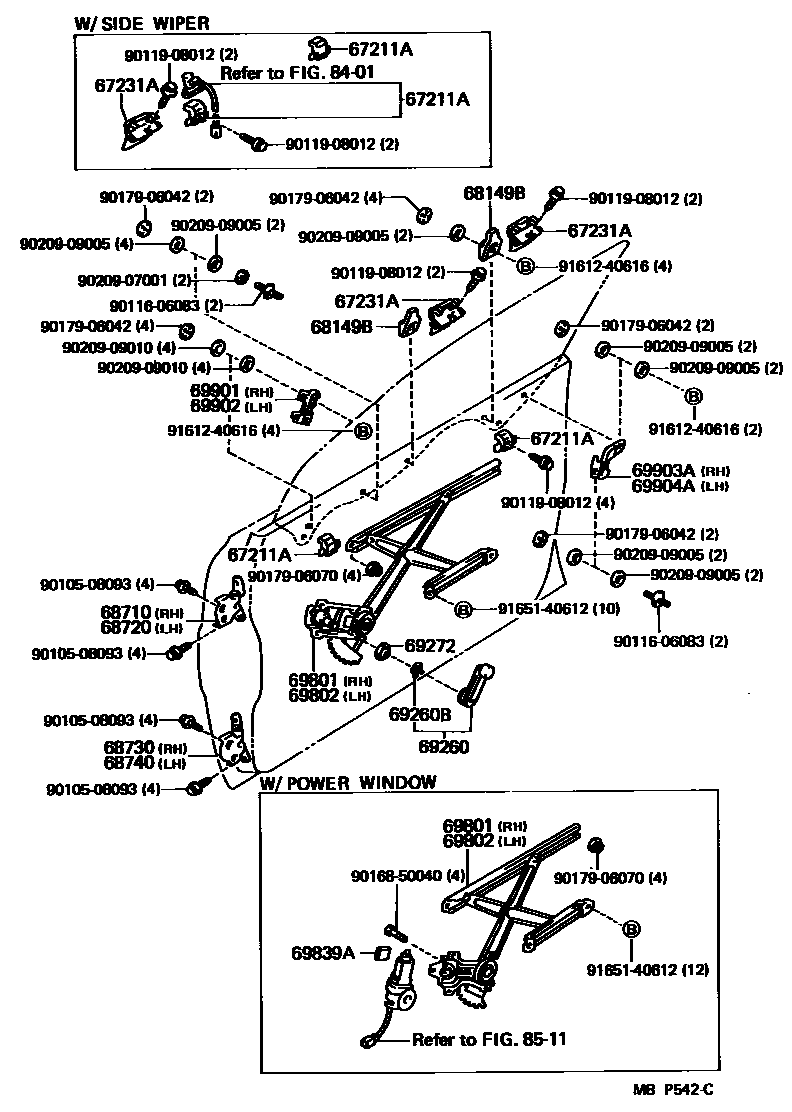

FRONT DOOR WINDOW REGULATOR & HINGE

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67205-22040iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

main67206-22030iGX81,MX83..AVT,AVTG,GT198808-199008

main67211-22020×2iGX81,MX83..AVT,AVTG,GT198808-199008

67231ASUPPORT, FRONT DOOR TRIM

main67231-22070×4iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

68149BSTABILIZER, FRONT DOOR GLASS MALE

main68149-22020×4iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-22060iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

sub68710-22070

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-22050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

sub68720-22060

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22030-16×2iLX80,SX80..XL198808-199210

SABLE,TRIM4#

main69260-22030-23×2iLX80,SX80,YX80..KYO,XL199008-199210

MEDIUM GRAY,TRIM1#

main69260-22030-24×2iLX80,SX80,YX80..KYO,XL198808-199008

DARK BLUE,TRIM8#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iLX80,SX80,YX80..KYO,XL198808-199210

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iLX80,SX80,YX80..KYO199008-199210

NATURAL WHITE,TRIM1#,4#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-22120iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199210

main69810-22240iLX80,SX80,YX80..KYO,XL198808-199008

main69810-22270iLX80,SX80,YX80..KYO,XL199008-199210

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-22120iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199210

main69820-22230iLX80,SX80,YX80..KYO,XL198808-199008

main69820-22260iLX80,SX80,YX80..KYO,XL199008-199210

69839APAD, FRONT DOOR WINDOW REGULATOR

main69839-95800×2iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199210

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-22080iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69903ABRACKET SUB-ASSY, FRONT DOOR GLASS, REAR RH

main69903-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69904ABRACKET SUB-ASSY, FRONT DOOR GLASS, REAR LH

main69904-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

8401

8511

9010508093

main90105-08093

9011606083

main90116-06083

9011908012

main90119-08012

9016850040

main90168-50040

9017906042

main90179-06042

9017906070

main90179-06070

9020907001

main90209-07001

9020909005

main90209-09005

9020909010

main90209-09010

9161240616

main91612-40616

9165140612

main91651-40612

30 parts on this diagram · 1 diagram in section
