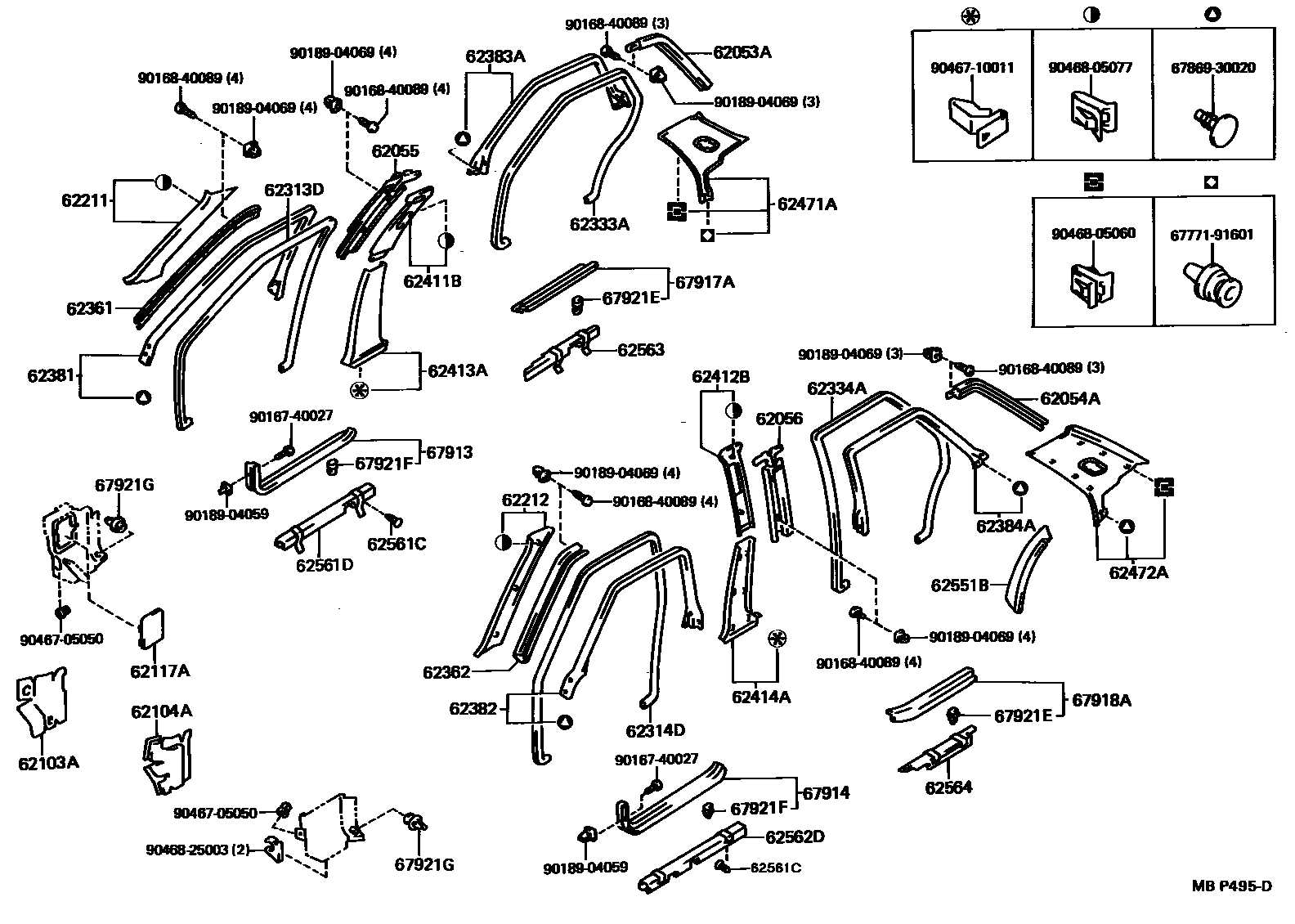

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62053ARETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, REAR RH

main62053-22050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

62054ARETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, REAR LH

main62054-22050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

62055RETAINER SUB-ASSY, CENTER PILLAR WEATHERSTRIP, RH

main62055-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

62056RETAINER SUB-ASSY, CENTER PILLAR WEATHERSTRIP, LH

main62056-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-22070-02iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199008

NEW MAROON,TRIM3#

main62117-22070-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

main62117-22070-06iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL198808-199008

SABLE,TRIM4#

main62117-22090-02iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199008-199210

NEW MAROON,TRIM3#

main62117-22090-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

MEDIUM GRAY,TRIM1#

main62117-22090-06iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL199008-199210

SABLE,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62211-22250-02iGX81,LX80,SX80..SXL,XG198808-199210

NEW MAROON,TRIM3#

sub62211-22260

main62211-22250-03iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL199008-199210

MEDIUM GRAY,TRIM1#

sub62211-22260

main62211-22250-04iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL198808-199008

DARK BLUE,TRIM8#

sub62211-22260

main62211-22250-06iGX81,LX80,SX80..SXL,XG,XL198808-199210

SABLE,TRIM4#

sub62211-22260

main62211-22260-02iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

NEW MAROON,TRIM3#

sub62211-22260

main62211-22260-03iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

MEDIUM GRAY,TRIM1#

sub62211-22260

main62211-22260-04iGX81,MX83..AVT,AVTG,GT198808-199008

DARK BLUE,TRIM8#

sub62211-22260

main62211-22260-06iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

SABLE,TRIM4#

sub62211-22260

62212GARNISH, FRONT PILLAR, LH

main62212-22260-02iGX81,LX80,SX80..SXL,XG198808-199210

NEW MAROON,TRIM3#

sub62212-22270

main62212-22260-03iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL199008-199210

MEDIUM GRAY,TRIM1#

sub62212-22270

main62212-22260-04iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL198808-199008

DARK BLUE,TRIM8#

sub62212-22270

main62212-22260-06iGX81,LX80,SX80..SXL,XG,XL198808-199210

SABLE,TRIM4#

sub62212-22270

main62212-22270-02iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

NEW MAROON,TRIM3#

sub62212-22270

main62212-22270-03iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

MEDIUM GRAY,TRIM1#

sub62212-22270

main62212-22270-04iGX81,MX83..AVT,AVTG,GT198808-199008

DARK BLUE,TRIM8#

sub62212-22270

main62212-22270-06iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

SABLE,TRIM4#

sub62212-22270

62313DTRIM, FRONT DOOR OPENING, RH

main62313-22160-02iGX81,LX80,SX80..SXL,XG198808-199210

NEW MAROON,TRIM3#

main62313-22160-03iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL199008-199210

MEDIUM GRAY,TRIM1#

main62313-22160-04iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL198808-199008

DARK BLUE,TRIM8#

main62313-22160-06iGX81,LX80,SX80..SXL,XG,XL198808-199210

SABLE,TRIM4#

main62313-22170-02iGX81..AVT,AVTG,GT198808-198903

NEW MAROON,TRIM3#

main62313-22170-03iJZX81,MX83..AVTG199008-199210

main62313-22170-04iGX81..AVT,AVTG,GT198808-198903

DARK BLUE,TRIM8#

main62313-22170-06iGX81..AVT,AVTG,GT198808-198903

SABLE,TRIM4#

main62313-22170-06iMX83198908-199210

main62313-22180-02iGX81,JZX81,MX83..AVT,AVTG,GT198903-199210

NEW MAROON,TRIM3#

main62313-22180-03iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

MEDIUM GRAY,TRIM1#

main62313-22180-04iGX81,MX83..AVT,AVTG,GT198903-199008

DARK BLUE,TRIM8#

main62313-22180-06iGX81,JZX81,MX83..AVT,AVTG,GT198903-199210

SABLE,TRIM4#

62314DTRIM, FRONT DOOR OPENING, LH

main62314-22040-02iGX81,LX80,SX80..SXL,XG198808-199210

NEW MAROON,TRIM3#

main62314-22040-03iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL199008-199210

MEDIUM GRAY,TRIM1#

main62314-22040-04iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL198808-199008

DARK BLUE,TRIM8#

main62314-22040-06iGX81,LX80,SX80..SXL,XG,XL198808-199210

SABLE,TRIM4#

main62314-22050-02iGX81..AVT,AVTG,GT198808-198903

NEW MAROON,TRIM3#

main62314-22050-03iJZX81,MX83..AVTG199008-199210

main62314-22050-04iGX81..AVT,AVTG,GT198808-198903

DARK BLUE,TRIM8#

main62314-22050-06iMX83198908-199210

main62314-22050-06iGX81..AVT,AVTG,GT198808-198903

SABLE,TRIM4#

main62314-22060-02iGX81,JZX81,MX83..AVT,AVTG,GT198903-199210

NEW MAROON,TRIM3#

main62314-22060-03iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

MEDIUM GRAY,TRIM1#

main62314-22060-04iGX81,MX83..AVT,AVTG,GT198903-199008

DARK BLUE,TRIM8#

main62314-22060-06iGX81,JZX81,MX83..AVT,AVTG,GT198903-199210

SABLE,TRIM4#

62333ATRIM, REAR DOOR OPENING, RH

main62333-22110-02iGX81,LX80,SX80..SXL,XG198808-199210

NEW MAROON,TRIM3#

main62333-22110-03iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL199008-199210

MEDIUM GRAY,TRIM1#

main62333-22110-04iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL198808-199008

DARK BLUE,TRIM8#

main62333-22110-06iGX81,LX80,SX80..SXL,XG,XL198808-199210

SABLE,TRIM4#

main62333-22120-02iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

NEW MAROON,TRIM3#

main62333-22120-03iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

MEDIUM GRAY,TRIM1#

main62333-22120-04iGX81,MX83..AVT,AVTG,GT198808-199008

DARK BLUE,TRIM8#

main62333-22120-06iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

SABLE,TRIM4#

62334ATRIM, REAR DOOR OPENING, LH

main62334-22030-02iGX81,LX80,SX80..SXL,XG198808-199210

NEW MAROON,TRIM3#

main62334-22030-03iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL199008-199210

MEDIUM GRAY,TRIM1#

main62334-22030-04iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL198808-199008

DARK BLUE,TRIM8#

main62334-22030-06iGX81,LX80,SX80..SXL,XG,XL198808-199210

SABLE,TRIM4#

main62334-22040-02iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

NEW MAROON,TRIM3#

main62334-22040-03iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

MEDIUM GRAY,TRIM1#

main62334-22040-04iGX81,MX83..AVT,AVTG,GT198808-199008

DARK BLUE,TRIM8#

main62334-22040-06iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

SABLE,TRIM4#

62361RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH

main62361-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

62362RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH

main62362-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-22050iSX80198808-199102

sub62381-22051

main62381-23030iGX81,JZX81,LX80,MX83,SX80,YX80199102-199210

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-22050iSX80198808-199102

sub62382-22051

main62382-23030iGX81,JZX81,LX80,MX83,SX80,YX80199102-199210

62383AWEATHERSTRIP, ROOF SIDE RAIL, REAR RH

main62383-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199102

main62383-23010iGX81,JZX81,LX80,MX83,SX80,YX80199102-199210

62384AWEATHERSTRIP, ROOF SIDE RAIL, REAR LH

main62384-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199102

main62384-23010iGX81,JZX81,LX80,MX83,SX80,YX80199102-199210

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-22270-02iGX81,LX80,SX80..SXL,XG198808-199210

NEW MAROON,TRIM3#

sub62411-22280

main62411-22270-03iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL199008-199210

MEDIUM GRAY,TRIM1#

sub62411-22280

main62411-22270-04iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL198808-199008

DARK BLUE,TRIM8#

sub62411-22280

main62411-22270-06iGX81,LX80,SX80..SXL,XG,XL198808-199210

SABLE,TRIM4#

sub62411-22280

main62411-22280-02iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

NEW MAROON,TRIM3#

main62411-22280-03iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

MEDIUM GRAY,TRIM1#

main62411-22280-04iGX81,MX83..AVT,AVTG,GT198808-199008

DARK BLUE,TRIM8#

main62411-22280-06iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

SABLE,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-22290-02iGX81,LX80,SX80..SXL,XG198808-199210

NEW MAROON,TRIM3#

main62412-22290-03iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL199008-199210

MEDIUM GRAY,TRIM1#

main62412-22290-04iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL198808-199008

DARK BLUE,TRIM8#

main62412-22290-06iGX81,LX80,SX80..SXL,XG,XL198808-199210

SABLE,TRIM4#

main62412-22300-02iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

NEW MAROON,TRIM3#

main62412-22300-03iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

MEDIUM GRAY,TRIM1#

main62412-22300-04iGX81,MX83..AVT,AVTG,GT198808-199008

DARK BLUE,TRIM8#

main62412-22300-06iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

SABLE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-22080-02iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199210

NEW MAROON,TRIM3#

main62413-22080-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

MEDIUM GRAY,TRIM1#

main62413-22080-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

main62413-22080-06iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL198808-199210

SABLE,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-22080-02iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199210

NEW MAROON,TRIM3#

main62414-22080-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

MEDIUM GRAY,TRIM1#

main62414-22080-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

main62414-22080-06iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL198808-199210

SABLE,TRIM4#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-23020-02iGX81,LX80,SX80..SXL,XG199008-199210

NEW MAROON,TRIM3#

main62470-23020-03iGX81,LX80,SX80..SXL,XG,XL199008-199210

MEDIUM GRAY,TRIM1#

main62470-23020-06iGX81,LX80,SX80..SXL,XG,XL199008-199210

SABLE,TRIM4#

main62470-91601-03iLX80,SX80,YX80..KYO199008-199210

MEDIUM GRAY,TRIM1#

main62470-91601-04iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL198808-199008

LIGHT BLUE,TRIM8#

main62470-91601-06iGX81,LX80,SX80..SXL,XG198808-199008

LIGHT SABLE,TRIM3#,4#

main62470-91601-06iGX81,LX80,SX80..SXL,XG198808-199008

LIGHT SABLE,TRIM4#

main62470-91603-02iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

NEW MAROON,TRIM3#

main62470-91603-03iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

MEDIUM GRAY,TRIM1#

main62470-91603-04iGX81,MX83..AVT,AVTG,GT198808-199008

LIGHT BLUE,TRIM8#

main62470-91603-06iGX81,MX83..AVT,AVTG,GT198808-199008

LIGHT SABLE,TRIM3#,4#

main62470-91603-16iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

SABLE,TRIM4#

62472AGARNISH, ROOF SIDE, INNER LH

main62480-23020-02iGX81,LX80,SX80..SXL,XG199008-199210

NEW MAROON,TRIM3#

main62480-23020-03iGX81,LX80,SX80..SXL,XG,XL199008-199210

MEDIUM GRAY,TRIM1#

main62480-23020-06iGX81,LX80,SX80..SXL,XG,XL199008-199210

SABLE,TRIM4#

main62480-91601-03iLX80,SX80,YX80..KYO199008-199210

MEDIUM GRAY,TRIM1#

main62480-91601-04iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL198808-199008

LIGHT BLUE,TRIM8#

main62480-91601-06iLX80,SX80..XL198808-199008

LIGHT SABLE,TRIM3#,4#

main62480-91601-06iLX80,SX80..XL198808-199008

LIGHT SABLE,TRIM4#

main62480-91603-02iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

NEW MAROON,TRIM3#

main62480-91603-03iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

MEDIUM GRAY,TRIM1#

main62480-91603-04iGX81,MX83..AVT,AVTG,GT198808-199008

LIGHT BLUE,TRIM8#

main62480-91603-06iGX81,MX83..AVT,AVTG,GT198808-199008

LIGHT SABLE,TRIM3#,4#

main62480-91603-16iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

SABLE,TRIM4#

62551BGARNISH, REAR SEAT SIDE

main62551-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)

main90467-08056-01iLX80,SX80,YX80..KYO198808-199008

BLACK,TRIM3#,4#,8#

sub90467-08056

main90467-08056-01iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199008

BLACK,TRIM4#,8#

sub90467-08056

main90467-08056-01iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199008

BLACK,TRIM8#

sub90467-08056

main90467-08056-01iLX80,SX80..XL199008-199210

BLACK,TRIM1#,4#

sub90467-08056

main90467-08056-01iLX80,SX80..XL199008-199210

BLACK,TRIM1#,3#,4#

sub90467-08056

main90467-08056-01iLX80,SX80..XL199008-199210

BLACK,TRIM1#

sub90467-08056

62561DPROTECTOR, ROCKER PANEL, INNER FRONT RH

main62561-22050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

62562DPROTECTOR, ROCKER PANEL, INNER FRONT LH

main62562-22050iGX81,LX80,SX80,YX80198808-199210

main62562-22070iLX80,YX80;SX80..KYO198810-199210

62563PROTECTOR, ROCKER PANEL, INNER REAR RH

main62563-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

62564PROTECTOR, ROCKER PANEL, INNER REAR LH

main62564-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

67913PLATE, FRONT DOOR SCUFF, RH

main67913-22070-02iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199210

NEW MAROON,TRIM3#

sub67913-22070

main67913-22070-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

MEDIUM GRAY,TRIM1#

sub67913-22070

main67913-22070-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

sub67913-22070

main67913-22070-06iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL198808-199210

SABLE,TRIM4#

sub67913-22070

67914PLATE, FRONT DOOR SCUFF, LH

main67914-22050-02iGX81,JZX81,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199210

NEW MAROON,TRIM3#

sub67914-22050

main67914-22050-03iGX81,JZX81,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL199008-199210

MEDIUM GRAY,TRIM1#

sub67914-22050

main67914-22050-04iGX81,LX80,SX80,YX80198808-199008

DARK BLUE,TRIM8#

sub67914-22050

main67914-22050-06iGX81,JZX81,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL198808-199210

SABLE,TRIM4#

sub67914-22050

main67914-22070-02iLX80..XG198810-199210

NEW MAROON,TRIM3#

sub67914-22070

main67914-22070-03iLX80,YX80;SX80..KYO199008-199210

MEDIUM GRAY,TRIM1#

sub67914-22070

main67914-22070-04iLX80,YX80;SX80..KYO198810-199008

DARK BLUE,TRIM8#

sub67914-22070

main67914-22070-06iLX80..XG,XL198810-199210

SABLE,TRIM4#

sub67914-22070

67917APLATE, REAR DOOR SCUFF, RH

main67917-22070-02iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199210

NEW MAROON,TRIM3#

sub67917-22070

main67917-22070-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

MEDIUM GRAY,TRIM1#

sub67917-22070

main67917-22070-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

sub67917-22070

main67917-22070-06iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL198808-199210

SABLE,TRIM4#

sub67917-22070

67918APLATE, REAR DOOR SCUFF, LH

main67918-22070-02iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199210

NEW MAROON,TRIM3#

sub67918-22070

main67918-22070-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

MEDIUM GRAY,TRIM1#

sub67918-22070

main67918-22070-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

sub67918-22070

main67918-22070-06iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL198808-199210

SABLE,TRIM4#

sub67918-22070

67921ERETAINER, REAR DOOR SCUFF PLATE

main67921-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

67921FRETAINER, FRONT DOOR SCUFF PLATE

main67921-22010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

FRONT

main67921-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

REAR

67921GRETAINER, FRONT DOOR SCUFF PLATE

main67921-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

6777191601WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-91601

6786930020PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-30020

9016740027

main90167-40027

9016840089

main90168-40089

9018904059

main90189-04059

9018904069

main90189-04069

9046705050

main90467-05050

9046710011

main90467-10011

9046805060

main90468-05060

9046805077

main90468-05077

9046825003

main90468-25003

49 parts on this diagram · 1 diagram in section
