SIDE MEMBER

58354SUPPORT, LUGGAGE COMPARTMENT SIDE COVER

main58354-22030iYX80198808-199210

58791ACARRIER, JACK

main58791-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-22280iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-22270iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-22090iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

6105

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-22060iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

sub61145-43010

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-22060iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61211RAIL, ROOF SIDE, OUTER RH

main61211-22110iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61212RAIL, ROOF SIDE, OUTER LH

main61212-22110iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61231RAIL, ROOF SIDE, INNER RH

main61231-22230iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61232RAIL, ROOF SIDE, INNER LH

main61232-22210iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61261CHANNEL, ROOF DRIP, RH

main61261-22100iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61262CHANNEL, ROOF DRIP, LH

main61262-22100iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-22040iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

61282ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.2

main61282-22020iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH

main61283-91601iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH

main61284-91601iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH

main61301-22912iGX81,LX80,MX83,SX80,YX80198808-199008

61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH

main61302-22912iJZX81199008-199210

61343APILLAR, CENTER BODY, INNER RH

main61343-22912iGX81,LX80,MX83,SX80,YX80198808-199008

61344APILLAR, CENTER BODY, INNER LH

main61344-22912iGX81,LX80,MX83,SX80,YX80198808-199008

61411PANEL, ROCKER, OUTER RH

main61401-22050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61412PANEL, ROCKER, OUTER LH

main61402-22050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61609BBRACE SUB-ASSY, QUARTER PANEL

main61609-91604iGX81,LX80,MX83,SX80,YX80198808-199008

61611PANEL, QUARTER, RH

main61601-23912iJZX81199008-199210

main61601-91690iGX81,LX80,SX80,YX80198808-198812

main61601-91799iGX81,LX80,MX83,SX80,YX80198812-199008

61612PANEL, QUARTER, LH

main61602-23910iJZX81199008-199210

main61602-91690iGX81,LX80,SX80,YX80198808-198812

main61602-91797iGX81,LX80,MX83,SX80,YX80198812-199008

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-91602iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

sub61621-22901

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-91602iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61625EEXTENSION, QUARTER PANEL, INNER REAR RH

main61625-91602iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61626EEXTENSION, QUARTER PANEL, INNER REAR LH

main61626-91602iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61628DEXTENSION, QUARTER PANEL, REAR LOWER LH

main61628-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-22907iGX81,LX80,MX83,SX80,YX80198808-199008

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-22110iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-91606iGX81..SPC198908-199008

main61607-91610iJZX81..AVT;GX81..AVT,GT198808-199210

main61607-91612iYX80198808-199210

main61607-91614iLX80,SX80198808-199210

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-91607iGX81,YX80198808-198908

main61608-91611iGX81..AVT,GT198908-199210

main61608-91613iLX80,SX80198808-199210

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61689BLINING, QUARTER PANEL REINFORCEMENT, LH

main61689-91604iGX81..TWT198808-198812

main61689-91606iGX81..TWT198808-198812

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-91609iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-91610iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-91690iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-91690iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-91601iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

main61769-91601iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61791BCOVER, ROOF SIDE INNER SERVICE HOLE

main61791-91602iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main61792-91602iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61813BPLATE, DUST PROOF, NO.1

main61813-22040×2iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61815BCOVER, ROOF SIDE, INNER UPPER RH

main61815-91602iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61816BCOVER, ROOF SIDE, INNER UPPER LH

main61816-91602iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

61824PLATE, NOISE CONTROL, NO.1

main61824-22030×13iLX80,SX80,YX80..KYO198808-198810

40X35,T=2.0

main61824-22050×9iLX80,SX80,YX80..KYO199008-199210

50 X 50,T=2.0

main61824-22080iGX81,LX80,MX83,SX80,YX80198808-199008

50X50,T=50

main62939-23010iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

50 X 50,T=50

sub61824-12110

61825APLATE, NOISE CONTROL, NO.2

main61825-22020×10iLX80,SX80,YX80..KYO198810-199010

61827APLATE, NOISE CONTROL, NO.4

main61827-22030×2iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

62429COVER, CENTER PILLAR SERVICE HOLE

main62429-22020×2iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

62939ASILENCER, QUARTER VENT

main62939-22070iGX81,MX83..AVT,AVTG,GT198808-199008

main62939-23010iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

sub61824-12110

main62939-91602iGX81,LX80,MX83,SX80,YX80198808-199008

50X250,T=50

66243CPROTECTOR, REAR BODY, NO.1

main66243-20010×2iGX81,JZX81,LX80,MX83,SX80,YX80199009-199205

main90950-06051×4iGX81,JZX81,LX80,MX83,SX80,YX80199205-199210

77276APROTECTOR, FUEL HOSE

main77276-23010iGX81,JZX81,LX80,MX83,SX80198808-199210

9017908025

main90179-08025

9095001061

main90950-01061

9095001431

main90950-01431

9095001580

main90950-01580

9095001685

main90950-01685

9095006013

main90950-06013

9095006051

main90950-06051

9163140612

main91631-40612

9165660820

main91656-60820

9166540616

main91665-40616

9166560616

main91665-60616

9356014010

main93560-14010

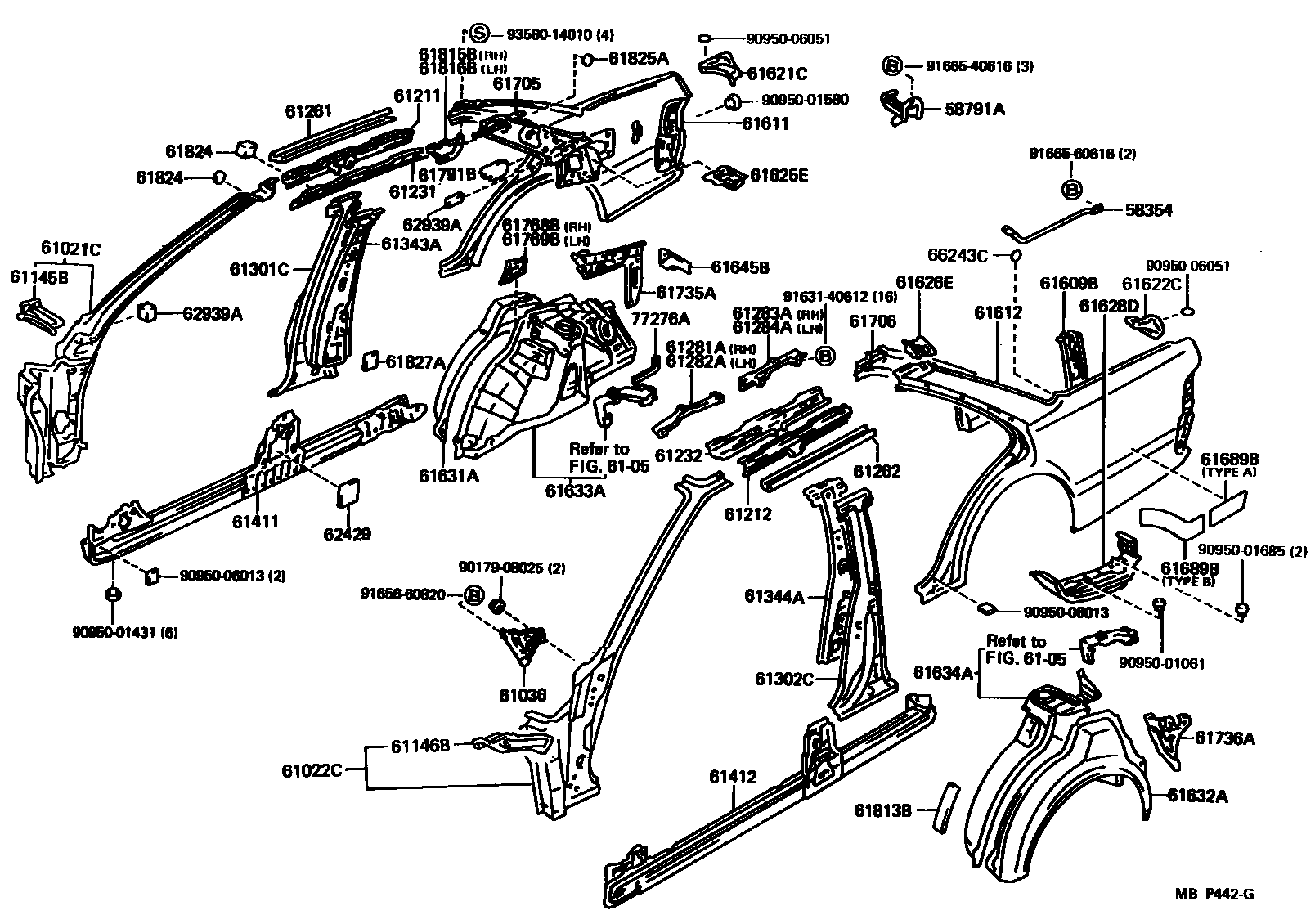

67 parts on this diagram · 1 diagram in section
