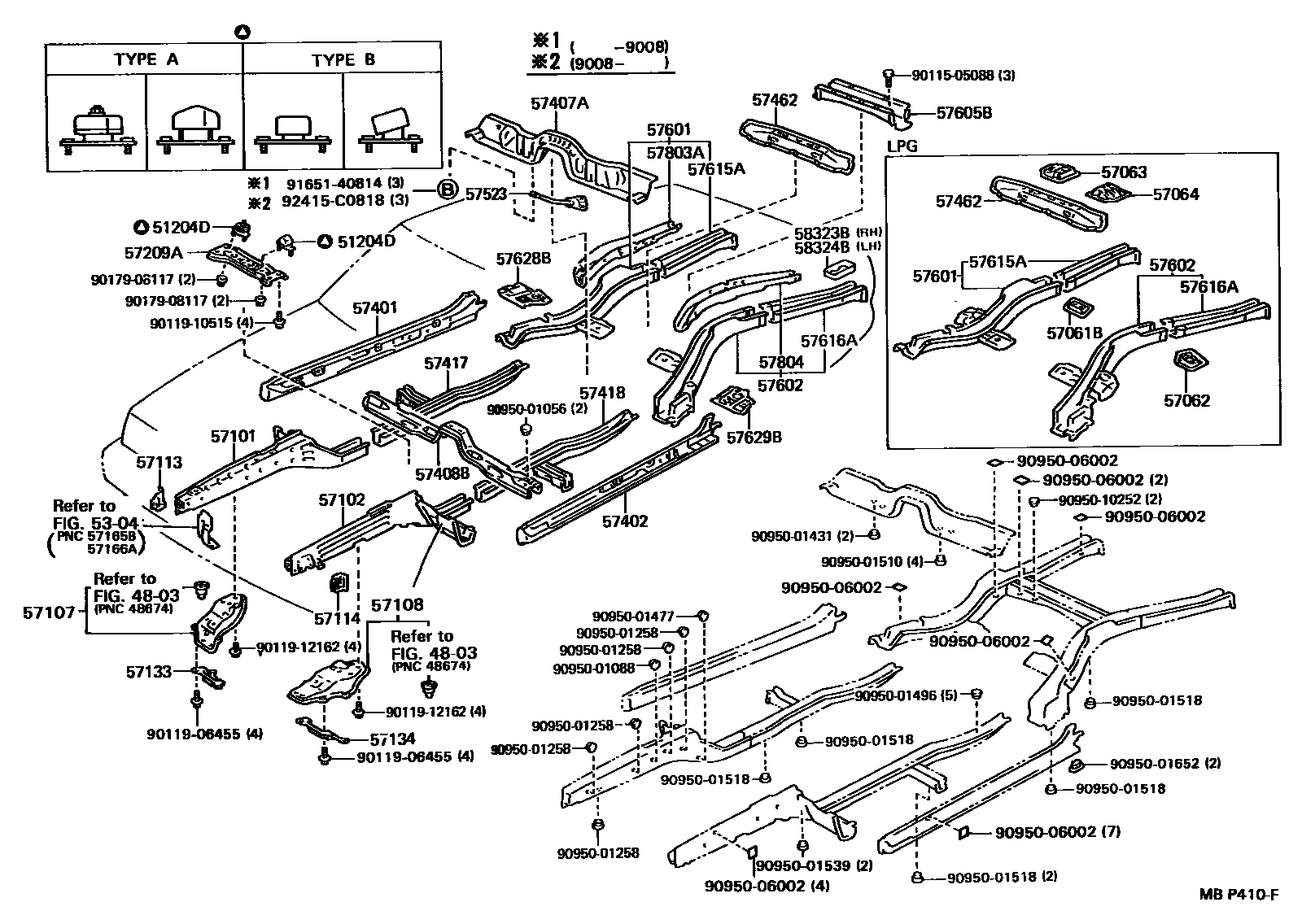

FLOOR SIDE MEMBER

4803

51204DDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER

main51204-22100iGX81,JZX81..AVTG198909-199210

main51204-22110iSX80..4FC..HTWC198808-199210

main51204-22120iMX83;GX81,JZX81..4FC..(AVT,GT,SXL)198909-199210

main51204-22130iGX81..5F198808-199210

main51204-22140iLX80198808-199210

main51204-22150iSX80..5F199008-199210

5304

57061BBRACKET SUB-ASSY, FUEL TANK MOUNTING, FRONT RH

main57061-22100iYX80198808-199210

57062BRACKET SUB-ASSY, FUEL TANK MOUNTING, FRONT LH

main57062-22020iYX80198808-199210

57063BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR RH

main57063-22030iYX80198808-199210

57064BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR LH

main57064-22030iYX80198808-199210

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-22300iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-22340iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-22080iGX81,LX80,MX83,SX80,YX80198808-199008

main57107-22091iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-22110iGX81,LX80,MX83,SX80,YX80198808-199008

main57108-22151iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-22060iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-22060iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

57133PROTECTOR, STRUT BAR BRACKET, RH

main57133-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

57134PROTECTOR, STRUT BAR BRACKET, LH

main57134-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-22130iYX80..5F198808-199210

main57209-22140iYX80..3FC198808-199210

main57209-22160iGX81,MX83..4FC198808-199210

main57209-22170iJZX81199008-199210

main57255-22190iSX80;GX81..5F;LX80..4FC198808-199210

main57255-22240iLX80..5F198808-199210

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-22130iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-22130iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-22080iGX81,JZX81,MX83198808-199210

main57407-22090iLX80,SX80,YX80198808-199210

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-22031iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57505-22070iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57506-22070iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

57462MEMBER, CENTER FLOOR CROSS, NO.2

main57462-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

57523BRACE, CENTER FLOOR CROSSMEMBER

main57523-22020iGX81,JZX81,MX83198808-199210

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-22210iGX81,JZX81,MX83198808-199210

main57601-22220iLX80,SX80,YX80198811-199210

main57601-22290iLX80,SX80,YX80198808-198811

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-22190iGX81,JZX81,MX83198808-199210

main57602-22210iLX80,SX80,YX80198811-199210

main57602-22280iLX80,SX80,YX80198808-198811

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-22900×2iGX81,JZX81,MX83199008-199210

main57605-22901iLX80,SX80,YX80198808-199008

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-22904iLX80,SX80,YX80198808-198809

main57615-22905×2iGX81,JZX81,MX83199008-199210

main57615-22906iGX81198808-198809

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-22070iLX80,SX80,YX80198808-198809

main57616-22090iGX81198808-198809

57628BPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

57629BPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-22010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-22050iGX81,JZX81,MX83198808-199210

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-22050iGX81,JZX81,MX83198808-199210

58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH

main58303-22060iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH

main58304-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

9011505088

main90115-05088

9011906455

main90119-06455

9011910515

main90119-10515

9011912162

main90119-12162

9017908117

main90179-08117

9095001056

main90950-01056

9095001088

main90950-01088

9095001258

main90950-01258

9095001431

main90950-01431

9095001477

main90950-01477

9095001496

main90950-01496

9095001510

main90950-01510

9095001518

main90950-01518

9095001539

main90950-01539

9095001652

main90950-01652

9095006002

main90950-06002

9095010252

main90950-10252

9165140814

main91651-40814

92415C0818

main92415-C0818

54 parts on this diagram · 1 diagram in section
