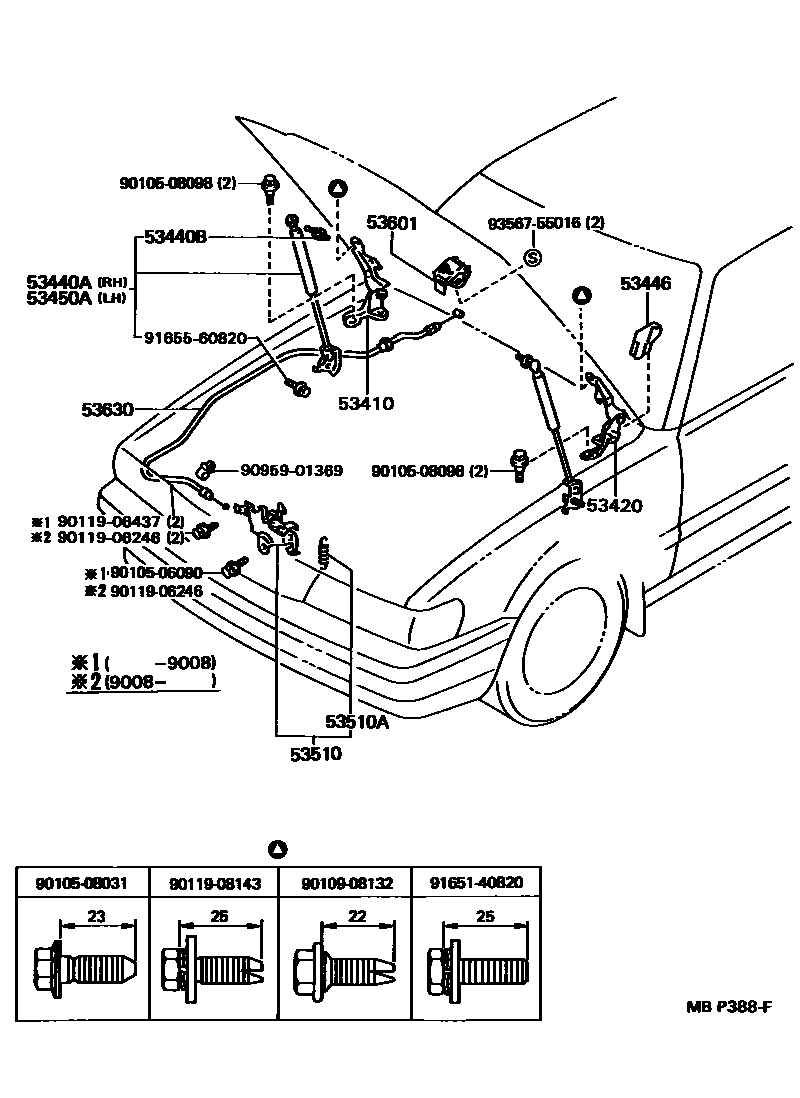

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-22080iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53420HINGE ASSY, HOOD, LH

main53420-22080iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53440ASUPPORT ASSY, HOOD, RH

main53440-29046iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53440BBOLT, HOOD SUPPORT, NO.1

main68961-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53446COVER, HOOD HINGE, LH

main53446-22010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53450ASUPPORT ASSY, HOOD, LH

main53450-29046iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53510LOCK ASSY, HOOD

main53510-22280iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main90506-09039iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

main90506-18024iGX81,LX80,MX83,SX80,YX80198808-199008

CW=18,WD=1.8

main90506-18061iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-20060-10iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

sub53601-20060

main53601-20060-33iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

MEDIUM GRAY,TRIM1#

sub53601-20060

main53601-20060-36iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL198808-199210

SABLE,TRIM4#

sub53601-20060

main53601-20060-42iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199210

NEW MAROON,TRIM3#

sub53601-20060

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-22180iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

9010506090

main90105-06090

9010508031

main90105-08031

9010508098

main90105-08098

9010908132

main90109-08132

9011906246

main90119-06246

9011906437

main90119-06437

9011908143

main90119-08143

9095901369

main90959-01369

9165140820

main91651-40820

9165560820

main91655-60820

9356755016

main93567-55016

21 parts on this diagram · 1 diagram in section
