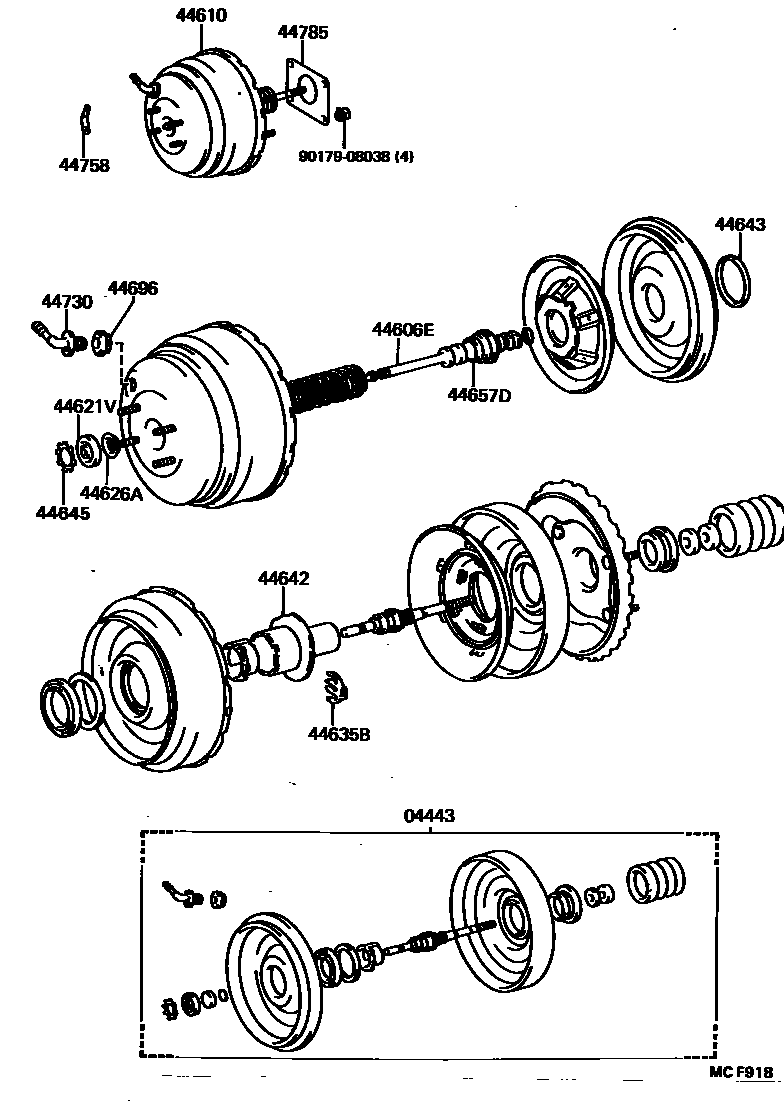

BRAKE BOOSTER & VACUUM TUBE

0001 1 0004 1JKC 0005 1��(������ ���-���� ����) 0006 1AISIN 0007 1 0008 1 0009 1 0012 1 0013 1 0015 1 0016 1 0018 1 0019 1

04443BOOSTER KIT, BRAKE

main04443-22491iLX80,SX80,YX80..KYO198808-199008

*42

main04443-22590iGX81..TWT198808-199008

main04443-22600iGX81,MX83..AVT,AVTG198808-199008

main04443-22610iGX81,SX80,YX80..KYO,SXL,XG,XL198808-199008

main04443-22620iLX80..XG,XL198808-198902

main04443-22620iLX80..KYO198808-199008

main04443-22620iLX80..XG,XL198902-199008

main04443-22660iLX80..XG,XL198902-199008

main04443-22680iGX81,SX80..SXL,XG,XL198808-199008

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iGX81,LX80,SX80..SXL,XG,XL198808-199008

main44606-20800iGX81,MX83..AVT,AVTG,GT198808-199008

main44608-32020iGX81,SX80..SXL,XG,XL198808-199008

44610BOOSTER ASSY, BRAKE

main44610-22610iLX80,SX80,YX80..KYO198808-199210

*42

sub44610-22611

main44610-22670iGX81..TWT198808-199008

main44610-22680iGX81,JZX81..AVT198808-199210

main44610-22700iSX80,YX80..KYO198808-199210

main44610-22710iLX80..KYO198808-199210

main44610-22710iLX80..XG,XL198808-198902

main44610-22710iLX80..XG,XL198902-199210

main44610-22790iLX80..XG,XL198902-199210

main44610-22810iJZX81,MX83..AVTG,GT199008-199102

main44610-22840iJZX81,MX83..AVTG,GT199102-199210

main44610-22840iJZX81..AVT199102-199210

main44610-2A030iJZX81..TWT199202-199210

44621VSEAL, BOOSTER BODY

main44621-14030iGX81,MX83..AVT,AVTG,GT198808-199008

main44621-28120iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL198808-199008

44626RETAINER, BOOSTER ROD CUP

main44626-30010iLX80,SX80,YX80..KYO198808-199008

44626ARETAINER, BOOSTER BODY SEAL

main44626-60010iGX81,MX83..AVT,AVTG,GT198808-199008

44635BKEY, VALVE STOPPER

main44633-28130iGX81,SX80..SXL,XG,XL198808-199008

main44635-20800iGX81,MX83..AVT,AVTG,GT198808-199008

main44635-28120iLX80,SX80,YX80..KYO198808-199008

44642PISTON, BRAKE BOOSTER

main44642-20800iGX81,MX83..AVT,AVTG,GT198808-199008

main44642-32010iGX81,SX80,YX80..KYO,SXL,XG,XL198808-199008

main44642-32030iLX80198808-199008

44643RETAINER, DIAPHRAGM

main44643-20800iGX81,MX83..AVT,AVTG,GT198808-199008

main44643-36040iLX80,SX80,YX80..KYO198808-199008

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-28120iLX80,SX80,YX80..KYO198808-199008

main44628-60010iGX81,MX83..AVT,AVTG,GT198808-199008

main44645-22020iGX81,SX80..SXL,XG,XL198808-199008

44657DCASE, REACTION DISC

main44657-30560iGX81,MX83..AVT,AVTG,GT198808-199008

44696GROMMET, CHECK VALVE

main90480-24439iJZX81;GX81,LX80,MX83,SX80,YX80..AVT,AVTG,KYO198808-199210

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iJZX81;GX81,MX83..AVT,AVTG198808-199210

main44730-20080iLX80,SX80,YX80..KYO198905-199008

*42

main44730-20080iLX80,SX80,YX80..KYO198808-198905

main44730-22130iLX80,SX80,YX80..KYO198905-199008

main44730-22130iLX80,SX80,YX80..KYO199008-199210

44758BRACKET, VACUUM CHECK VALVE

main44758-22200iGX81,JZX81,MX83..AVT,AVTG198808-199210

44785GASKET, BRAKE BOOSTER

main44785-32010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

9017908038

main90179-08038

16 parts on this diagram · 13 diagrams in section
