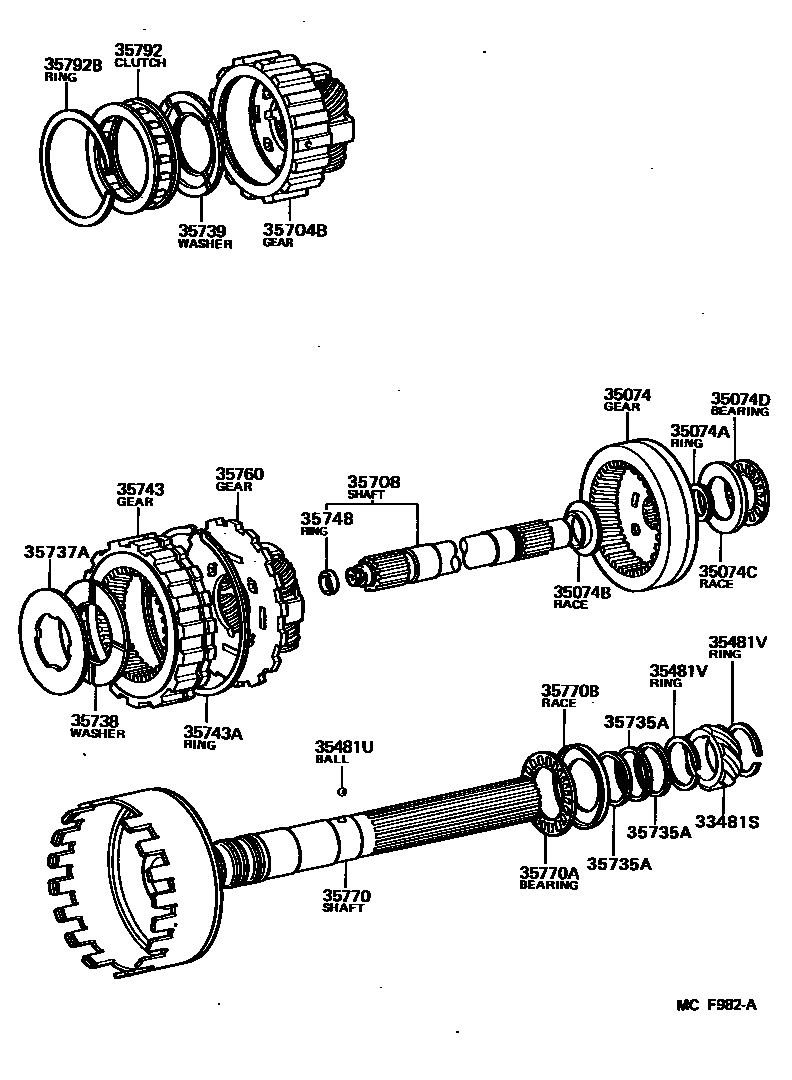

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A41,A42D,A42DL,A43D 0002 1A340E,A341E

33481SGEAR, SPEEDOMETER DRIVE (ATM)

main33481-24020iJZX81..TWC;GX81..4FC..(TWC,TWT)198808-199210

main33481-26011iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

main33481-30060iMX83;JZX81..TWT198908-199210

main33481-30070iGX81..SPC198808-199008

35074GEAR SUB-ASSY, REAR PLANETARY RING

main35074-30010iGX81,SX80,YX80..ATM..(CI,HTWC,LPG)198808-199210

main35074-30030iLX80..4FC198808-199210

35074ARING, SET (FOR REAR PLANETARY RING GEAR)

main90522-20037iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)

main35789-22050iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

main35789-30180iLX80..4FC199003-199210

35074CRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR)

main35789-22020iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)

main90374-28014iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)

main90360-06004iGX81,JZX81,LX80,MX83,SX80,YX80..ATM198808-199210

35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)

main90520-28009iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

35704BGEAR SUB-ASSY, FRONT PLANETARY

main35704-22020iYX80..3FC198808-199210

main35704-22030iGX81,SX80..4FC..(CI,HTWC)198808-199210

main35704-30030iLX80..4FC198808-199210

35708SHAFT SUB-ASSY, INTERMEDIATE

main35708-22020iYX80..3FC198808-199210

main35708-30031iGX81,SX80..4FC..(CI,HTWC)198808-199210

main35708-30041iLX80..4FC198808-199210

35735ARING, PLANETARY OUTPUT SHAFT OIL SEAL

main35735-22010iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

main35735-30020iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-22010iGX81,SX80,YX80..ATM..(CI,HTWC,LPG)198808-199210

main35737-30020iLX80..4FC198808-199210

main35737-30030iJZX81..TWC;GX81..4FC..(SPC,TWC,TWT)198808-199210

main35737-50010iMX83;JZX81..TWT198908-199210

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-22010iGX81,SX80,YX80..ATM..(CI,HTWC,LPG)198808-199210

main35738-30010iLX80..4FC198808-199210

main35739-30030iJZX81..TWC;GX81..4FC..(SPC,TWC,TWT)198808-199210

main35739-50010iMX83;JZX81..TWT198908-199210

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-14010iGX81..4FC..AVT..HTWC198808-199210

main35739-22011iGX81,SX80..4FC..(CI,HTWC)198808-199210

main35739-30010iLX80..4FC198808-199210

35743GEAR, FRONT PLANETARY RING

main35743-22010iGX81,SX80..4FC..(CI,HTWC)198808-199210

main35743-30010iLX80,YX80..ATM198808-199210

35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)

main90520-99121iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35748RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL

main35748-30010iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

35760GEAR ASSY, REAR PLANETARY

main35705-30010iJZX81..TWC;GX81..4FC..(SPC,TWC,TWT)198808-199210

main35705-50010iMX83;JZX81..TWT198908-199210

main35760-30020iGX81,SX80,YX80..ATM..(CI,HTWC,LPG)198808-199210

main35760-30030iLX80..4FC198808-199210

35770SHAFT ASSY, OUTPUT

main35770-14020iGX81,SX80,YX80..ATM..(CI,HTWC,LPG)198808-199210

main35770-22040iGX81..4FC..AVT..HTWC198808-199210

main35770-30010iLX80..4FC198808-199210

35770ABEARING, THRUST (FOR OUTPUT SHAFT)

main90374-38013iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)

main35789-22040iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35792CLUTCH, 1 WAY, NO.2

main35792-14020iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198904-199210

main35792-20010iGX81,SX80..4FC..(CI,HTWC)198808-199210

sub35792-30011

sub35739-14010

main35792-30011iGX81..4FC..AVT..HTWC198808-199210

main35792-30042iGX81..4FC..(SPC,TWC,TWT)198808-198904

sub35792-14020

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-79148iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

main90521-87001iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

23 parts on this diagram · 2 diagrams in section
