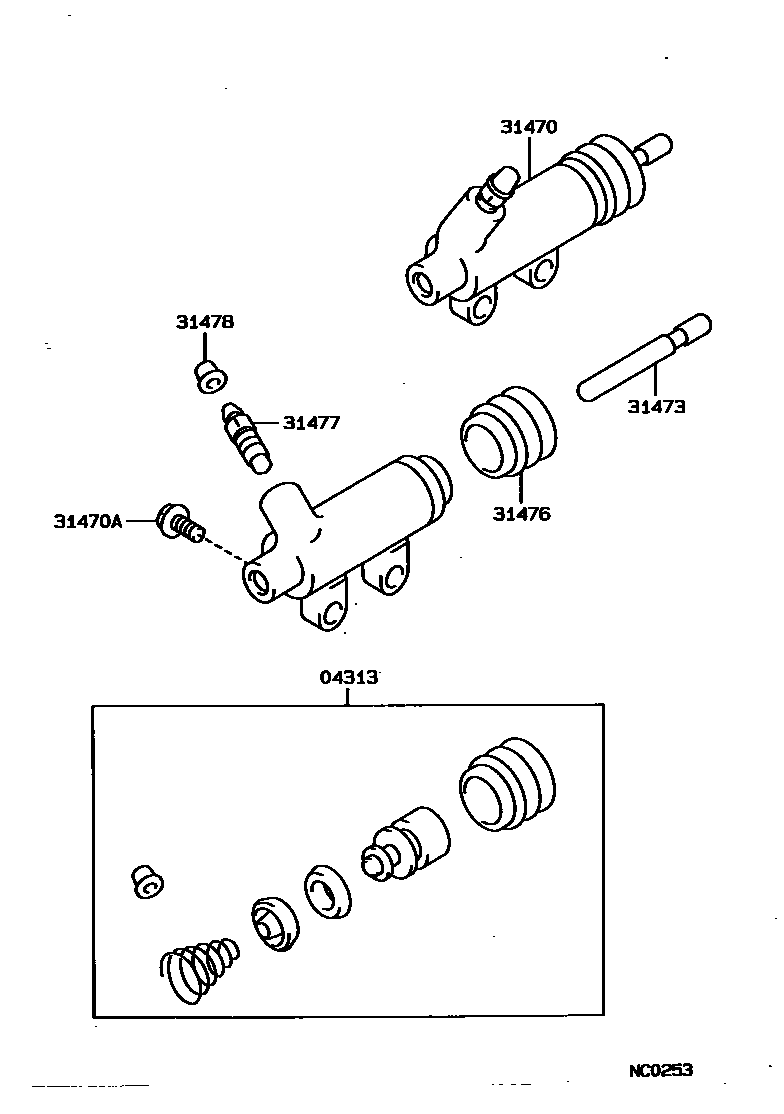

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iGX81,LX80,SX80,YX80..5F¥800198808-199103

main04313-17010iGX81..5F¥780199103-199210

main04313-22030iSX80,YX80..5F¥860199103-199210

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-22100iGX81..5F..TWT¥7,500198808-199008

sub31470-22101¥7,400

main31470-22111iLX80..5F¥7,500198808-199103

sub31470-22112¥7,400

main31470-22112iLX80..5F¥7,400199103-199210

main31470-22140iGX81..5F¥34,000199103-199210

main31470-22150iYX80..5F¥7,400199103-199210

main31470-22160iSX80..5F¥7,400199103-199210

main31470-30221iGX81,SX80..5F..(CI,HTWC,TWC)¥7,400198808-199103

sub31470-30222¥7,400

main31470-30260iYX80..5F¥7,400198808-199103

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iGX81,LX80,SX80,YX80..5F¥140198808-199210

sub91611-B0825¥160

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iGX81,LX80,SX80,YX80..5F¥720198808-199210

main31473-22030iLX80,SX80..5F¥520199103-199210

main31473-35050iYX80..5F¥250199109-199210

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iGX81,LX80,SX80,YX80..5F¥230198808-199210

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGX81,LX80,SX80,YX80..5F¥180198808-199210

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGX81,LX80,SX80,YX80..5F¥160198808-199210

7 parts on this diagram · 1 diagram in section
