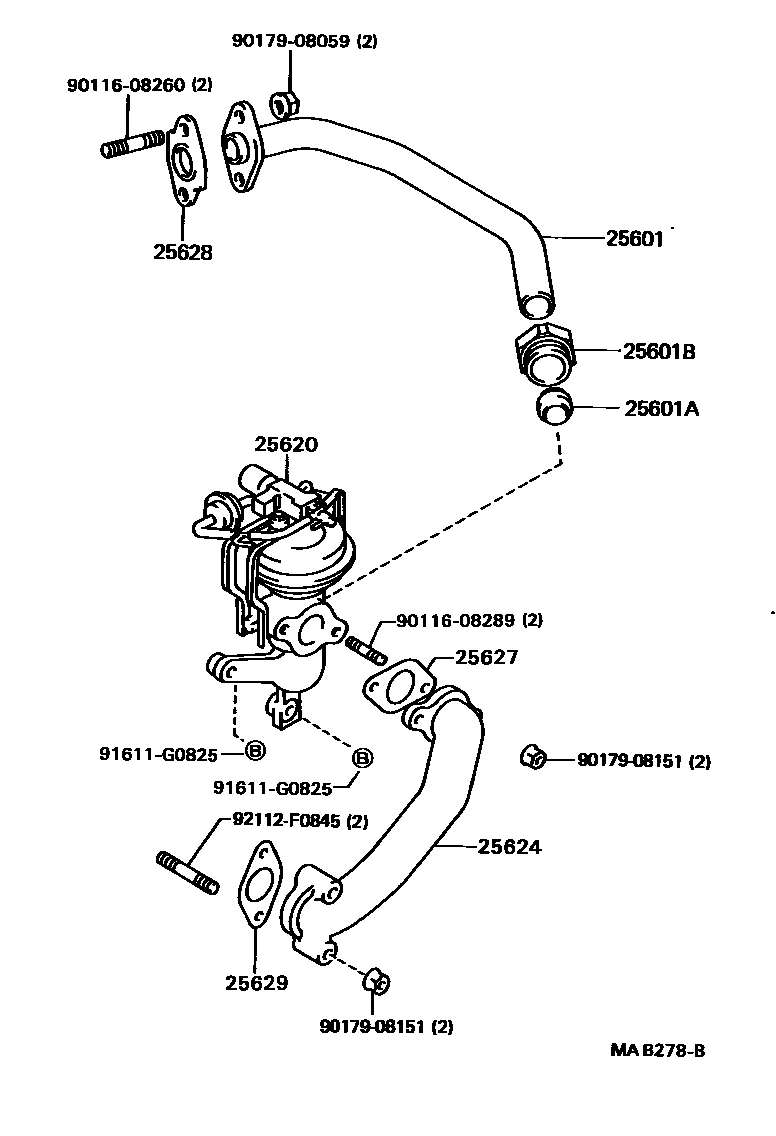

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-54060i2L..LX80198808-198908

sub25601-54061

main25601-54061i2L..LX80198908-199210

main25601-54070i2LT..LX80198808-199210

main25611-72010i3YP..YX80198808-199210

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042i3YP..YX80198808-199210

PIPE TO EGR VALVE

main90410-16001i3YP..YX80198808-199210

PIPE TO UNION

main90410-25001i2L#..LX80198808-199210

25601BNUT, UNION, EGR PIPE, NO.1

main90402-20073i3YP..YX80198808-199210

EGR VALVE TO PIPE

main90402-22010i3YP..YX80198808-199210

PIPE TO UNION

main90402-33001i2L#..LX80198808-199210

25620VALVE ASSY, EGR

main25620-54090i2LT..LX80198808-199210

sub25620-54140

main25620-72010i3YP..YX80198808-199009

sub25620-72011

sub90445-11078

main25620-72011i3YP..YX80199009-199210

main25800-54070i2L..LX80198808-199210

25624ADAPTER, EGR VALVE

main25607-72010i3YP..YX80198808-199210

sub25607-72011

main25624-54040i2L#..LX80198808-199210

25627GASKET, EGR VALVE

main25627-31020i3YP..YX80198808-198912

main25627-42040i7MGE..MX83198912-199005

main25627-43030i7MGE..MX83198908-199210

sub25627-42040

main25627-54010i2L#..LX80198808-198904

sub25627-54011

main25627-54011i2L#..LX80198904-199210

main25627-73010i3YP..YX80198912-199210

25628GASKET, EGR INLET

main25628-54012i2L#..LX80198808-199210

25629GASKET, EGR VALVE ADAPTER

main25629-54010i2L#..LX80198808-198904

sub25629-54011

main25629-54011i2L#..LX80198904-199210

9011608260

main90116-08260

9011608289

main90116-08289

9017908059

main90179-08059

9017908151

main90179-08151

91611G0825

main91611-G0825

92112F0845

main92112-F0845
