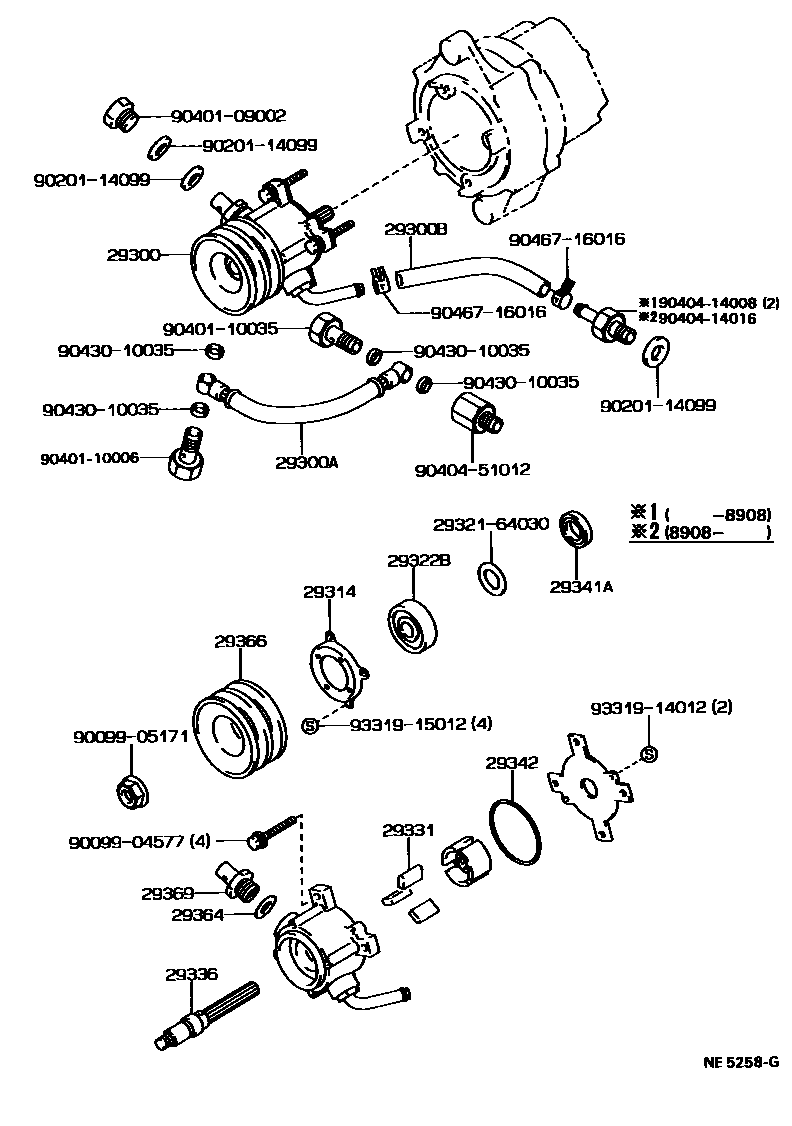

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-54080i2L#..LX80198808-198908

main29300-54100i2L#..LX80198908-199210

sub29300-54130

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02109i2LT..LX80198808-199007

main90923-02110i2L..LX80198808-199210

sub90923-02118

main90923-02114i2LT..LX80199007-199210

sub90923-02119

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54020i2L#..LX80198808-198908

main29611-54050i2L#..LX80198908-199210

29314RING, STOP

main29314-64030i2L#..LX80198808-199210

29322BBEARING, VACUUM PUMP

main90099-10166i2L#..LX80198808-199210

29331BLADE, VACUUM PUMP, A

main29331-64030i2L#..LX80198808-199210

29336SHAFT, VACUUM PUMP

main29336-64030i2L#..LX80198808-199008

sub29336-64031

sub90099-10166

main29336-64031i2L#..LX80199008-199210

29341ASEAL, OIL

main29341-64030i2L#..LX80198808-199210

29342PACKING, VACUUM PUMP

main29342-64030i2L#..LX80198808-199210

29364WASHER, VACUUM PUMP

main29364-66010i2L#..LX80198808-199210

29366PULLEY, VACUUM PUMP

main29366-54080i2L#..LX80198808-199210

29369VALVE SUB-ASSY, CHECK

main29369-64030i2L#..LX80198808-199210

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009904577

main90099-04577

9009905171

main90099-05171

9020114099

main90201-14099

9040109002

main90401-09002

9040110006

main90401-10006

9040110035

main90401-10035

9040414008

main90404-14008

9040414016

main90404-14016

9040451012

main90404-51012

9043010035

main90430-10035

9046716016

main90467-16016

9331914012

main93319-14012

9331915012

main93319-15012

26 parts on this diagram · 1 diagram in section
