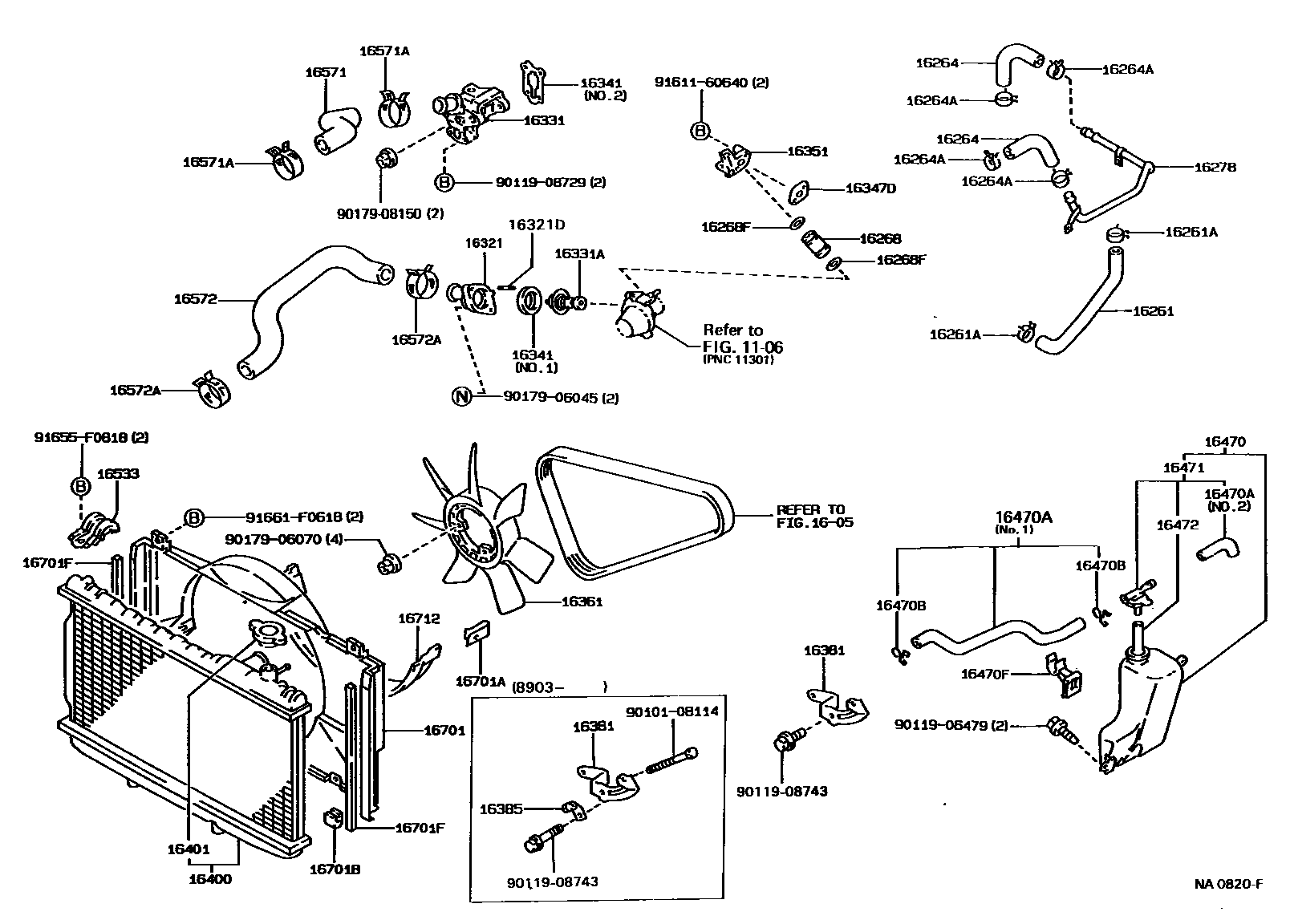

RADIATOR & WATER OUTLET
1106
1605
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub96135-51300
sub96135-51300
sub96134-51500
sub96134-41900
sub90467-26007
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
sub96135-51300
sub96135-51300
sub96135-51400
sub96134-41900
sub90467-21010
16268PIPE, WATER BY-PASS, NO.1
sub16268-42051
sub16268-46011
sub16268-70031
sub16268-70041
sub16268-88302
16268FRING, O(FOR WATER BY-PASS PIPE)
16321INLET, WATER
16321DBOLT, STUD(FOR WATER INLET)
16361FAN
16385SLIDER, FAN BELT ADJUSTING
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
NO.1
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470FCLAMP, RADIATOR RESERVE TANK HOSE
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
16571HOSE, RADIATOR, INLET
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-33003
sub90467-37005
sub90467-37005
sub90467-37005
sub90466-41003
16701SHROUD SUB-ASSY, FAN
16701ACLIP(FOR FAN SHROUD)
16701BCUSHION, FAN SHROUD
16701FSEAL(FOR FAN SHROUD)
16712SHROUD, FAN, NO.2
9010108114
main90101-08114
9011906479
main90119-06479
9011908729
main90119-08729
9011908743
main90119-08743
9017906045
main90179-06045
9017906070
main90179-06070
9017908150
main90179-08150
9161160640
main91611-60640
91655F0818
main91655-F0818
91661F0618
main91661-F0618
47 parts on this diagram · 17 diagrams in section
