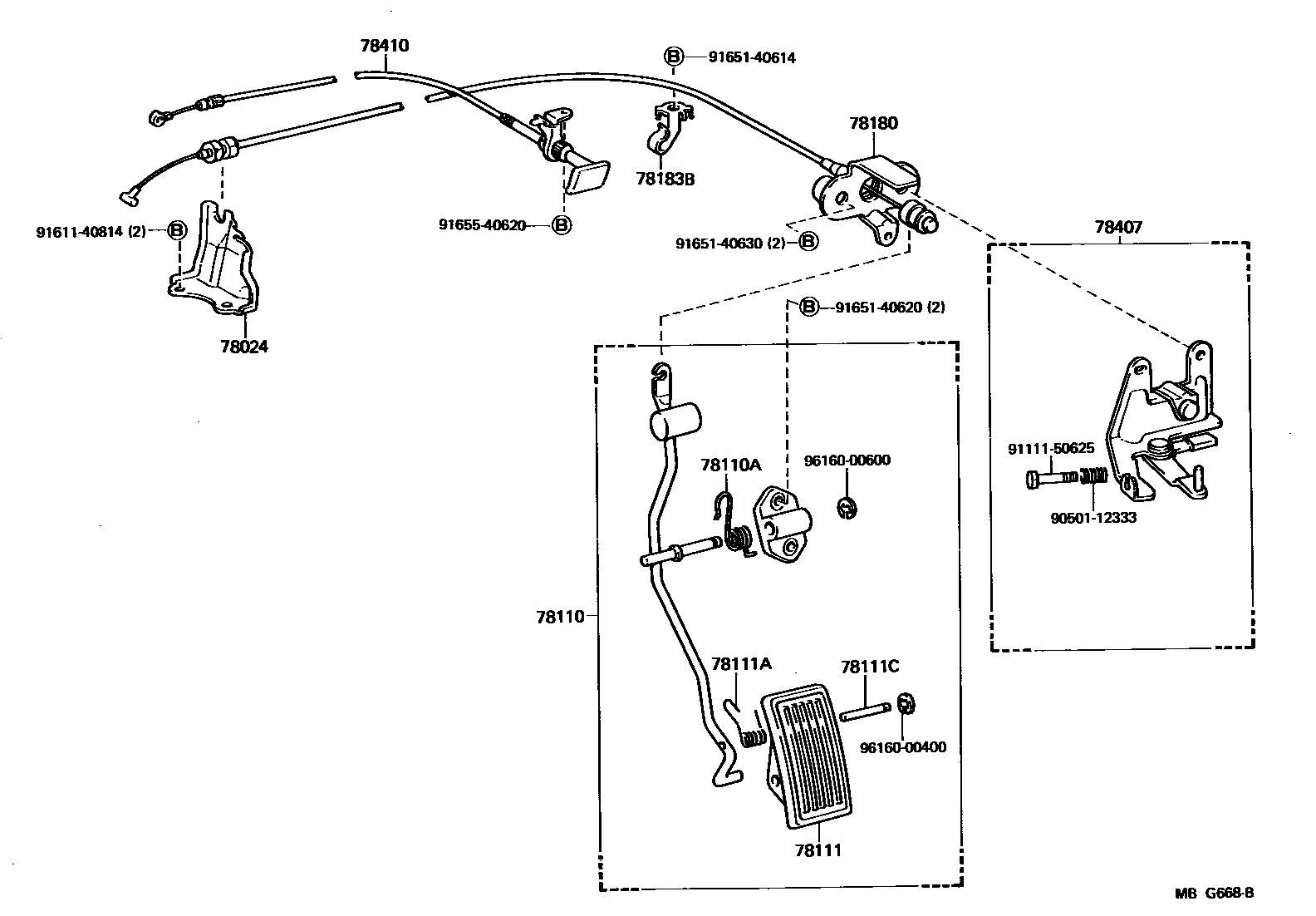

ACCELERATOR LINK

0001 1 0002 1 0003 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-22020iSX70198408-198808

main78024-22040iGX71..TWC198408-198608

main78024-22070iGX71..TWT198510-198808

sub78024-22071

main78024-22080iYX72198608-198808

main78024-30020iGX71..EFI198408-198808

main78024-30041iLX70..TD198408-198808

main78024-88300iGX71..TWC198608-198808

main78184-20060iYX70198408-198608

main78184-30070iMX71198408-198510

78110ROD ASSY, ACCELERATOR PEDAL

main78120-22220iMX71;GX71,LX70,SX70,YX70..5F198408-198808

sub78120-22221

main78120-22230iGX71,SX70..4FC..(CBR,EFI,TWC)198408-198808

sub78120-22231

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18060iGX71,SX70..4FC..(CBR,EFI,TWC)198408-198808

main90508-26054iMX71;GX71,LX70,SX70,YX70..5F198408-198808

78111PEDAL, ACCELERATOR

main78111-12100iGX71,LX70,MX71,SX70,YX7#198408-198808

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23088iGX71,LX70,MX71,SX70,YX7#198408-198808

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iGX71,LX70,MX71,SX70,YX7#198408-198808

78180WIRE ASSY, ACCELERATOR

main78180-22510iLX70..DSL198408-198808

main78180-22530iGX71..EFI198408-198808

main78180-22540iGX71..TWC198408-198608

main78180-22541iGX71..TWC198608-198808

main78180-22550iMX71198408-198510

main78180-22560iSX70198408-198808

main78180-22570iLX70..TD198408-198808

main78180-22590iYX70198408-198608

main78180-22591iYX72198608-198808

main78180-22840iGX71..TWT198510-198808

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-22040iGX71,LX70,MX71,YX7#..LPG,TBO,TD,TWC,TWT198408-198808

main78183-22050iLX70..DSL198408-198808

78407ARM SUB-ASSY, THROTTLE CONTROL

main78407-22050iYX70198408-198808

main78407-22060iLX70198408-198706

sub78407-22061

main78407-22061iLX70198706-198808

78410CABLE ASSY, THROTTLE CONTROL

main78410-22060iYX70198408-198808

main78410-22070iLX70198408-198706

main78410-22071iLX70198706-198808

9050112333

main90501-12333

9111150625

main91111-50625

9161140814

main91611-40814

9165140614

main91651-40614

9165140620

main91651-40620

9165140630

main91651-40630

9165540620

main91655-40620

9616000400

main96160-00400

9616000600

main96160-00600

19 parts on this diagram · 3 diagrams in section
