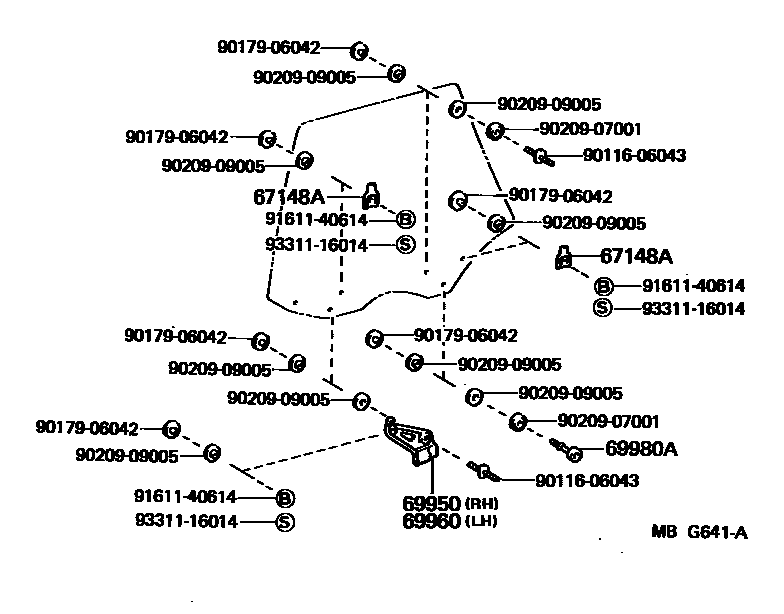

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

67148ASTABILIZER, REAR DOOR GLASS MALE, RH

main68149-14010×4iGX71,LX70,MX71,SX70,YX7#198408-198808

69950BRACKET SUB-ASSY, REAR DOOR GLASS, RH

main69905-22030iGX71,LX70,MX71,SX70,YX7#198408-198808

69960BRACKET SUB-ASSY, REAR DOOR GLASS, LH

main69906-22020iGX71,LX70,MX71,SX70,YX7#198408-198808

69980AROLLER ASSY, REAR DOOR GLASS GUIDE

main69980-22020×2iGX71,LX70,MX71,SX70,YX7#198408-198808

9011606043

main90116-06043

9017906042

main90179-06042

9020907001

main90209-07001

9020909005

main90209-09005

9161140614

main91611-40614

9331116014

main93311-16014

10 parts on this diagram · 2 diagrams in section
