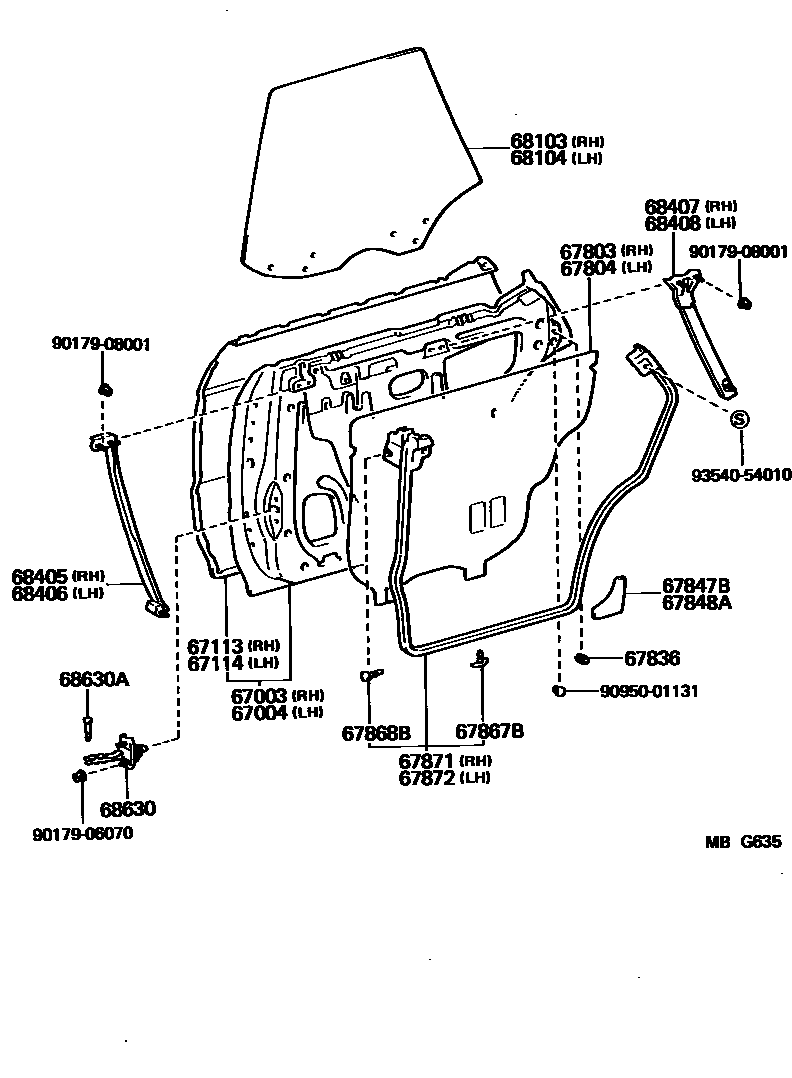

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-22310iGX71,LX70,MX71,SX70,YX7#198408-198808

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-22320iGX71,LX70,MX71,SX70,YX7#198408-198808

67113PANEL, REAR DOOR, OUTER RH

main67113-22130iGX71,LX70,MX71,SX70,YX70198408-198506

sub67113-22140

main67113-22140iGX71,LX70,MX71,SX70,YX7#198506-198808

67114PANEL, REAR DOOR, OUTER LH

main67114-22130iGX71,LX70,MX71,SX70,YX70198408-198506

sub67114-22140

main67114-22140iGX71,LX70,MX71,SX70,YX7#198506-198808

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-22130iGX71,LX70,MX71,SX70,YX7#198408-198808

sub67841-22160

main67841-22160iGX71,LX70,MX71,SX70,YX7#198408-198808

COLD SPEC

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-22160iGX71,LX70,MX71,SX70,YX7#198408-198808

COLD SPEC

main67842-22040iGX71,LX70,MX71,SX70,YX7#198408-198808

sub67841-22160

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-14010iGX71,LX70,MX71,SX70,YX7#198408-198808

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-22020iGX71,LX70,MX71,SX70,YX7#198408-198808

COLD SPEC

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-22020iGX71,LX70,MX71,SX70,YX7#198408-198808

COLD SPEC

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-22020iGX71,LX70,MX71,SX70,YX7#198408-198808

RH

main67868-22010iGX71,LX70,MX71,SX70,YX7#198408-198808

LH

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main67869-30020iGX71,LX70,MX71,SX70,YX7#198408-198808

67871WEATHERSTRIP, REAR DOOR, RH

main67871-22120iGX71,LX70,MX71,SX70,YX70198408-198601

sub67871-22190

main67871-22130iGX71,LX70,MX71,SX70,YX70198408-198601

COLD SPEC

sub67871-22190

main67871-22190iGX71,LX70,SX70,YX7#198601-198808

67872WEATHERSTRIP, REAR DOOR, LH

main67872-22120iGX71,LX70,MX71,SX70,YX70198408-198601

sub67872-22190

main67872-22130iGX71,LX70,MX71,SX70,YX70198408-198601

COLD SPEC

sub67872-22190

main67872-22190iGX71,LX70,SX70,YX7#198601-198808

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-22190iGX71,LX70,MX71,SX70,YX7#198408-198808

main68113-22200iGX71,LX70,SX70..AVT,GT,SXL,XG198408-198808

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-22190iGX71,LX70,MX71,SX70,YX7#198408-198808

main68114-22200iGX71,LX70,MX71,SX70..AVT,GT,XG198408-198808

68405GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-22080iGX71,LX70,MX71,SX70,YX7#198408-198808

68406GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-22080iGX71,LX70,MX71,SX70,YX7#198408-198808

68407GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-22070iGX71,LX70,MX71,SX70,YX7#198408-198808

68408GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-22070iGX71,LX70,MX71,SX70,YX7#198408-198808

68630CHECK ASSY, REAR DOOR

main68630-22050iGX71,LX70,MX71,SX70,YX7#198408-198808

68630APIN(FOR REAR DOOR CHECK)

main68617-22020iGX71,LX70,MX71,SX70,YX7#198507-198808

main68617-90A00iGX71,LX70,MX71,SX70,YX70198408-198507

9017906070

main90179-06070

9017908001

main90179-08001

9095001131

main90950-01131

9354054010

main93540-54010

25 parts on this diagram · 2 diagrams in section
