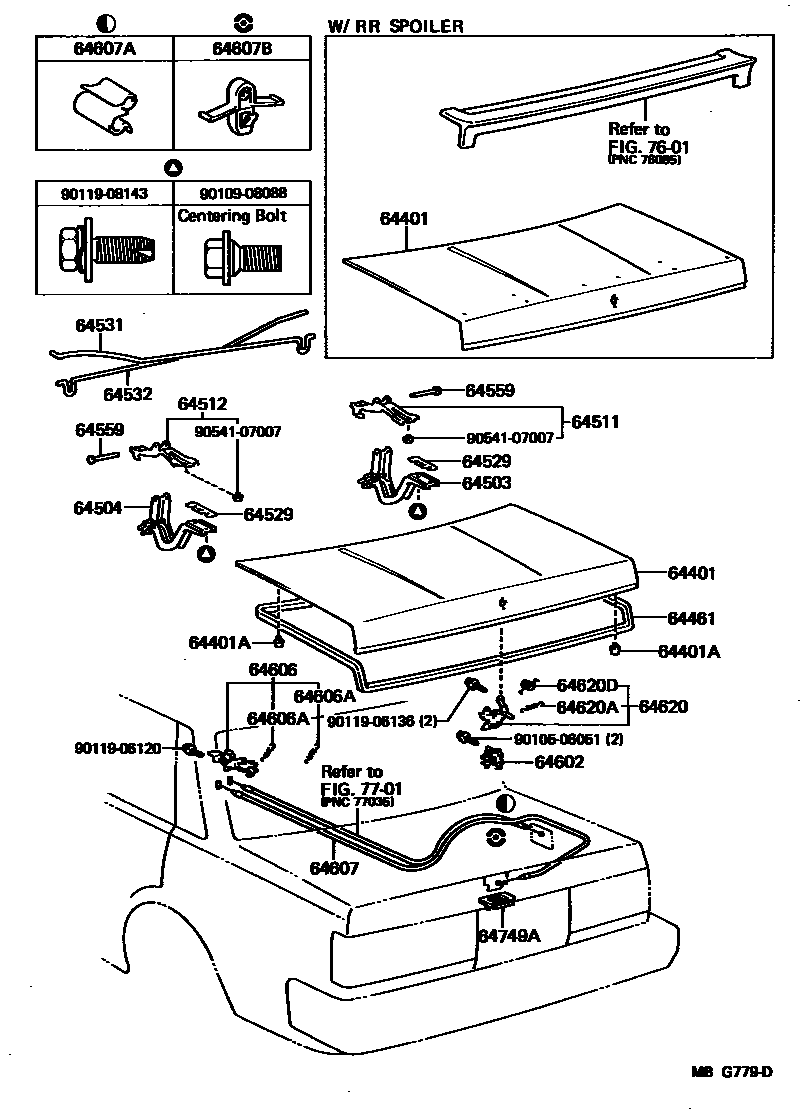

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-91601iGX71,MX71..AVT198411-198508

W/RR SPOILER

main64401-91606iGX71,MX71..AVT198408-198411

W/RR SPOILER

main64401-91607iGX71,LX70,MX71,SX70,YX70198408-198608

main64401-91610iGX71,LX70,SX70,YX72198608-198808

main64401-91612iGX71..TWC,TWT198608-198808

W/RR SPOILER

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076×2iGX71,LX70,MX71,SX70,YX7#198408-198808

FR

sub90541-06056

main90541-09042×2iGX71,LX70,MX71,SX70,YX7#198408-198808

RR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-91601iGX71,LX70,MX71,SX70,YX7#198408-198808

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-22040iGX71,LX70,MX71,SX70,YX7#198408-198808

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64504-22020iGX71,LX70,MX71,SX70,YX7#198408-198808

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-91601iGX71,LX70,MX71,SX70,YX7#198408-198808

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-91601iGX71,LX70,MX71,SX70,YX7#198408-198808

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-14010×2iGX71,LX70,MX71,SX70,YX7#198408-198808

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-91601iGX71,LX70,MX71,SX70,YX70198408-198608

main64531-91602iGX71,MX71..AVT198408-198508

W/RR SPOILER

main64531-91603iGX71,LX70,SX70,YX72198608-198808

main64531-91604iGX71..TWC,TWT198608-198808

W/RR SPOILER

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-91601iGX71,LX70,MX71,SX70,YX70198408-198608

main64532-91602iGX71,MX71..AVT198408-198508

W/RR SPOILER

main64532-91604iGX71,LX70,SX70,YX72198608-198808

main64532-91605iGX71..TWC,TWT198608-198808

W/RR SPOILER

64559PIN, LUGGAGE DOOR HINGE

main64559-22010×2iGX71,LX70,MX71,SX70,YX7#198408-198808

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-12070iGX71,LX70,MX71,SX70..AVT,SXL,XG,XL198408-198503

sub84231-12030

main64620-22040iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198503-198808

sub84231-22020

sub93315-15010

main64621-12060iLX70,SX70,YX7#..KYO198408-198808

sub64621-12070

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-22060iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

main64606-22070iYX70198408-198608

main64606-22090iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

main64606-22110iYX72198608-198808

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004×2iYX7#198408-198808

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-22120iYX70198408-198608

main64607-22180iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

main64607-22200iYX72198608-198808

main64607-22270iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90959-01158iYX7#198408-198808

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90959-01209×2iYX7#198408-198808

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-22060iLX70,SX70,YX7#..KYO198507-198808

main64610-22090iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198507-198808

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iGX71,LX70,MX71,SX70,YX7#198408-198808

CW=13,WD=0.8

64620DSPRING, TORSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90508-08019iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198507-198808

CW=3,WD=0.8

64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-22030iLX70,SX70,YX7#..KYO,XL198408-198808

7601

7701

9010506051

main90105-06051

9010908088

main90109-08088

9011906120

main90119-06120

9011906136

main90119-06136

9011908143

main90119-08143

9054107007

main90541-07007

29 parts on this diagram · 1 diagram in section
