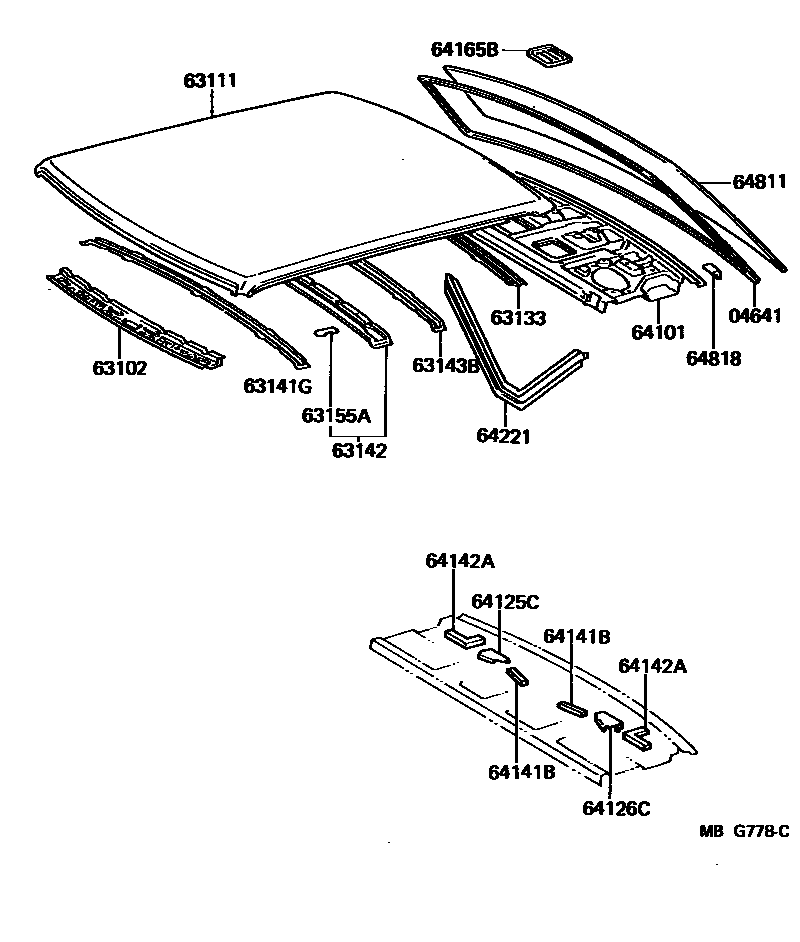

ROOF PANEL & BACK WINDOW GLASS

04641DAM KIT, BACK WINDOW GLASS

main04562-30040iGX71,LX70,MX71,SX70,YX7#198408-198808

63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

main63102-22130iLX70,SX70..XL198408-198808

main63102-22140iSX70..XL198510-198808

XL EXTRA

main63102-22140iGX71,LX70,MX71,SX70,YX7#..AVT,GT,KYO,SXL,XG198408-198808

63111PANEL, ROOF

main63111-91611iGX71,LX70,MX71,SX70,YX7#198408-198808

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-91601iGX71,LX70,MX71,SX70,YX7#198408-198808

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-22090iGX71,LX70,MX71,SX70,YX7#198408-198808

63142REINFORCEMENT, ROOF PANEL, NO.2

main63103-22090iGX71,LX70,MX71,SX70,YX7#198408-198808

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-22090iGX71,LX70,MX71,SX70,YX7#198408-198808

63155APLATE, ROOF PANEL REINFORCEMENT

main63155-22020iGX71,LX70,MX71,SX70,YX70198408-198808

64101PANEL SUB-ASSY, UPPER BACK

main64101-91601iGX71,LX70,MX71,SX70,YX7#198408-198808

64125CBRACKET, UPPER BACK PANEL, RH

main64125-91601iGX71,LX70,MX71,SX70,YX7#198408-198808

64126CBRACKET, UPPER BACK PANEL, LH

main64126-91601iGX71,LX70,MX71,SX70,YX7#198408-198808

64141BSILENCER, BACK PANEL, NO.1

main64141-91601iGX71,LX70,MX71,SX70,YX7#198408-198808

64142ASILENCER, BACK PANEL, NO.2

main64142-91601iGX71,LX70,MX71,SX70,YX7#198408-198808

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-22010iGX71,LX70,MX71,SX70,YX7#198408-198808

64221BRACE, REAR SEAT CUSHION SUPPORT

main64221-22020iGX71,LX70,MX71,SX70,YX7#198408-198808

64811GLASS, BACK WINDOW

main64801-91601iGX71,LX70,MX71,SX70,YX70198408-198608

*EHTT,T=4.0

sub64801-91605

main64801-91602iGX71,MX71,SX70..AVT,GT,XG198408-198608

*EHTT,T=4.0,BRONZE

sub64801-91607

main64801-91602iSX70..XL198510-198608

XL EXTRA,*EHTT,T=4.0,BRONZE

sub64801-91607

main64801-91603iGX71,MX71..AVT,GT198408-198608

*EHTT,T=4.0,BRONZE,W/RR WIPER

sub64801-91608

main64801-91604iGX71,MX71..AVT,GT198408-198608

*EHTT,T=4.0,W/RR WIPER

sub64801-91606

main64801-91605iGX71,LX70,SX70,YX72198608-198808

main64801-91606iGX71..AVT,GT198608-198808

main64801-91607iGX71,LX70,SX70..AVT,GT,SXL,XG198608-198808

main64801-91608iGX71..AVT,GT198608-198808

64818SPACER, BACK WINDOW GLASS

main64818-22030iGX71,LX70,MX71,SX70,YX7#198408-198808

10X6X20

main64819-22010iGX71,LX70,MX71,SX70,YX7#198408-198808

12X5X20

main64819-22020iGX71,LX70,MX71,SX70,YX7#198408-198808

12X3X20

main64819-22030iGX71,LX70,MX71,SX70,YX7#198408-198808

12X7X20

17 parts on this diagram · 1 diagram in section
