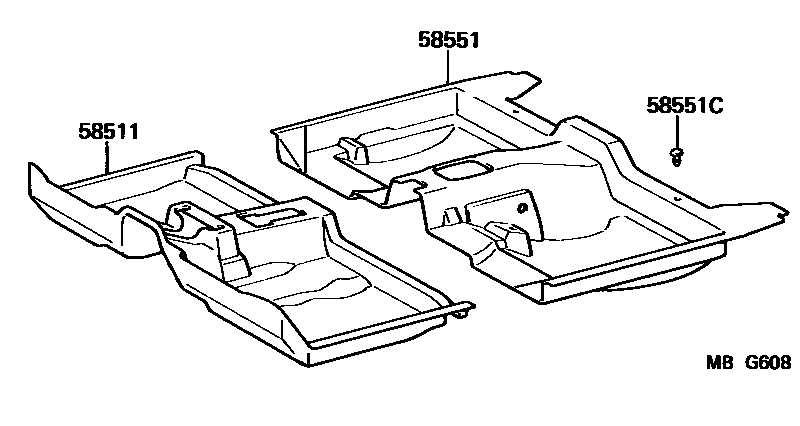

MAT & CARPET

0001 1 0002 1

58511MAT, FLOOR, FRONT

main58510-2A120-03iLX70,SX70,YX70..KYO198408-198608

GRAY,COOL GRAY,TRIM1#

main58510-2A260-04iLX70,SX70,YX72..KYO198608-198808

BLUE,DARK BLUE,TRIM8#

main58510-2A300-04iSX70..4FC..XL198612-198808

*30,BLUE,DARK BLUE,TRIM8#

58551MAT, FLOOR, REAR

main58540-22480-03iLX70,SX70,YX70..KYO198408-198608

GRAY,COOL GRAY,TRIM1#

main58540-22480-04iLX70,SX70,YX72..KYO198608-198808

BLUE,DARK BLUE,TRIM8#

58551CCLIP(FOR FLOOR MAT, REAR)

main90467-07158-01iLX70,SX70,YX72..KYO198608-198808

BLACK,BLACK

sub90467-07158

main90467-07158-03iLX70,SX70,YX70..KYO198408-198608

GRAY,GRAY,TRIM1#

sub90467-07158

3 parts on this diagram · 2 diagrams in section
