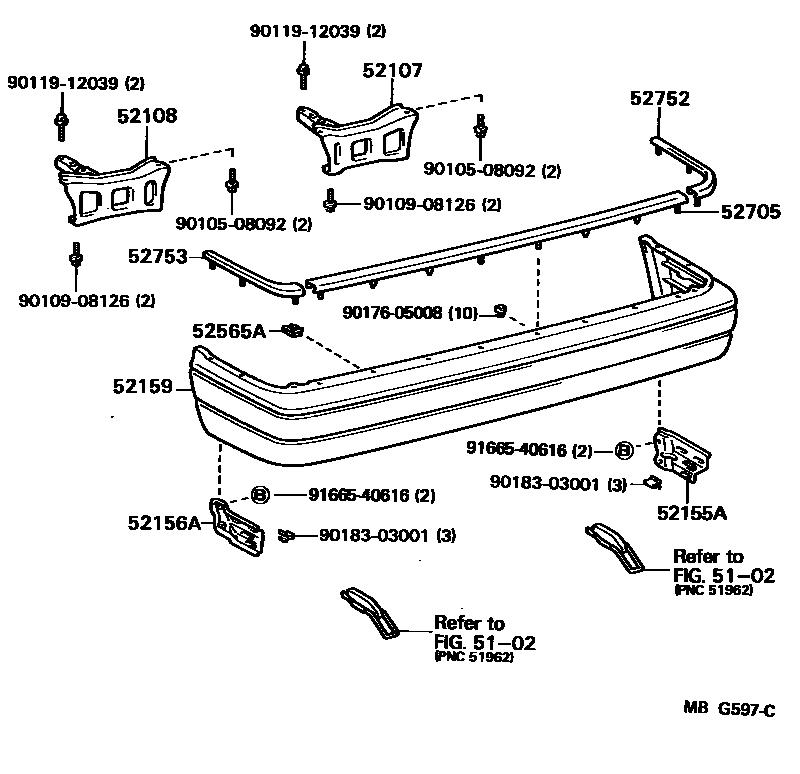

REAR BUMPER & BUMPER STAY

0001 1 0002 1

5102

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-22060iLX70,SX70,YX7#..KYO,XL¥3,720198408-198808

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-22080iLX70,SX70,YX7#..KYO,XL¥3,850198408-198808

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-22090iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG¥2,250198408-198608

main52155-22090iLX70,SX70..XL¥2,250198506-198608

W/URETHANE BUMPER

main52155-22091iGX71,LX70,SX70..AVT,GT,SXL,XG,XL¥2,060198608-198808

W/URETHANE BUMPER

main52155-22100iLX70,SX70,YX7#..KYO,XL¥1,770198408-198808

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-22110iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG¥2,250198408-198608

main52156-22110iLX70,SX70..XL¥2,250198506-198608

W/URETHANE BUMPER

main52156-22111iGX71,LX70,SX70..AVT,GT,SXL,XG,XL¥2,060198608-198808

W/URETHANE BUMPER

main52156-22120iLX70,SX70,YX7#..KYO,XL¥1,770198408-198808

52159COVER, REAR BUMPER

main52159-22140iGX71,LX70,SX70..SXL,XG¥44,000198408-198506

main52159-22150-03iGX71,MX71,SX70..AVT,XG198408-198608

SUPER SILVER-M,SUPER SILVER M,150

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-04iGX71,MX71,SX70..AVT,XG198408-198608

DARK BLUE-M,DARK BLUE METALLIC,8C1

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-05iGX71,MX71,SX70..AVT,XG198408-198608

BEIGE-M,BEIGE METALLIC,4E6

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-08iGX71,MX71,SX70..AVT,XG198408-198608

SUPER WHITE,SUPER WHITE,040

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-14iGX71..AVT,GT198408-198608

LIGHT BLUE-M,LIGHT BLUE METALLIC,2V7

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-15iGX71..TWC198408-198510

LIGHT BEIGE-M,LIGHT BEIGE METALLIC,2U9

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-22iGX71,MX71,SX70..AVT,XG198408-198608

DARK RED,DARK RED,3E9

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-38iGX71..AVT..EFI198601-198608

LORDLY,SUPER WHITE 2,WHITE/BEIGE,040

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22150-45iGX71..AVT,GT198510-198608

BROWN-M/BEIGE-M,BEIGE/BROWN,2U9

sub52159-22906¥40,100

sub52159-22150¥77,700

main52159-22160iLX70,SX70,YX7#..KYO,XL¥20,400198408-198808

main52159-22220-02iGX71,LX70,SX70..AVT,GT,SXL,XG198608-198808

W/*UB,RED MICA,DARK RED MICA,3H3

sub52159-22925¥54,200

sub52159-22220¥77,700

sub52159-22290¥78,000

sub52159-22280¥78,000

sub52159-22300¥78,000

sub52159-22270¥78,000

main52159-22220-03iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

W/*UB,SUPER SILVER-M 2,SUPER SILVER 2,166

sub52159-22925¥54,200

sub52159-22220¥77,700

sub52159-22290¥78,000

sub52159-22280¥78,000

sub52159-22300¥78,000

sub52159-22270¥78,000

main52159-22220-04iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

W/*UB,BLUE MICA,BLUE MICA,8E3

sub52159-22925¥54,200

sub52159-22220¥77,700

sub52159-22290¥78,000

sub52159-22280¥78,000

sub52159-22300¥78,000

sub52159-22270¥78,000

main52159-22220-05iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

W/*UB,BEIGE-M,BEIGE METALLIC,4G8

sub52159-22925¥54,200

sub52159-22220¥77,700

sub52159-22290¥78,000

sub52159-22280¥78,000

sub52159-22300¥78,000

sub52159-22270¥78,000

main52159-22220-08iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

W/*UB,SUPER WHITE 2,SUPER WHITE 2,040

sub52159-22925¥54,200

sub52159-22220¥77,700

sub52159-22290¥78,000

sub52159-22280¥78,000

sub52159-22300¥78,000

sub52159-22270¥78,000

main52159-22220-10iGX71..TWC198705-198708

LORDLY,WHITE PEARL MICA,W PEARL M/F BEIGE M,042

sub52159-22925¥54,200

sub52159-22220¥77,700

sub52159-22290¥78,000

sub52159-22280¥78,000

sub52159-22300¥78,000

sub52159-22270¥78,000

main52159-22220-18iGX71..AVT,GT198608-198808

W/*UB,WHITE/BROWN,WHT/BROWN,25C

sub52159-22925¥54,200

sub52159-22220¥77,700

sub52159-22290¥78,000

sub52159-22280¥78,000

sub52159-22300¥78,000

sub52159-22270¥78,000

main52159-22220-38iGX71..AVT..EFI198705-198708

LORDLY,SUPER WHITE 2,WHTE/BEIGE,040

sub52159-22925¥54,200

sub52159-22220¥77,700

sub52159-22290¥78,000

sub52159-22280¥78,000

sub52159-22300¥78,000

sub52159-22270¥78,000

main52159-22250iGX71..AVT..EFI¥77,700198701-198705

LORDLY,SUPER WHITE 2(040)

sub52159-22220¥77,700

main52159-22280-08iGX71..AVT..EFI198708-198808

LORDLY,SUPER WHITE 2,S WHITE 2/BEIGE M,040

main52159-22290-08iGX71..TWC198708-198808

LORDLY,WHITE PEARL MICA,W PEARL M/BEIGE M,042

52565ARETAINER, REAR BUMPER, LOWER

main52565-12040iLX70,SX70,YX7#..KYO,XL¥270198408-198808

main52565-22030iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG¥1,670198408-198808

main52565-22030iLX70,SX70..XL¥1,670198506-198808

W/URETHANE BUMPER

52705MOULDING SUB-ASSY, REAR BUMPER

main52751-22060iGX71,LX70,SX70..AVT,GT,SXL,XG,XL¥7,500198608-198808

W/URETHANE BUMPER

main52751-22070iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG¥8,000198408-198608

main52751-22070iLX70,SX70..XL¥8,000198506-198608

W/URETHANE BUMPER

main52751-22080iLX70,SX70,YX7#..KYO,XL¥6,200198408-198808

52752MOULDING, REAR BUMPER SIDE, RH

main52706-22010iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG¥3,250198408-198608

main52706-22010iLX70,SX70..XL¥3,250198506-198608

W/URETHANE BUMPER

main52706-22030iLX70,SX70,YX7#..KYO,XL¥2,730198408-198808

main52706-22040iGX71,LX70,SX70..AVT,GT,SXL,XG,XL¥2,950198608-198808

W/URETHANE BUMPER

52753MOULDING, REAR BUMPER SIDE, LH

main52707-22010iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG¥3,250198408-198608

main52707-22010iLX70,SX70..XL¥3,250198506-198608

W/URETHANE BUMPER

main52707-22030iLX70,SX70,YX7#..KYO,XL¥2,730198408-198808

main52707-22040iGX71,LX70,SX70..AVT,GT,SXL,XG,XL¥2,950198608-198808

W/URETHANE BUMPER

9010508092

main90105-08092¥170

9010908126

main90109-08126¥170

9011912039

main90119-12039¥310

9017605008

main90176-05008¥130

9018303001

main90183-03001¥170

9166540616

main91665-40616¥70

16 parts on this diagram · 2 diagrams in section
