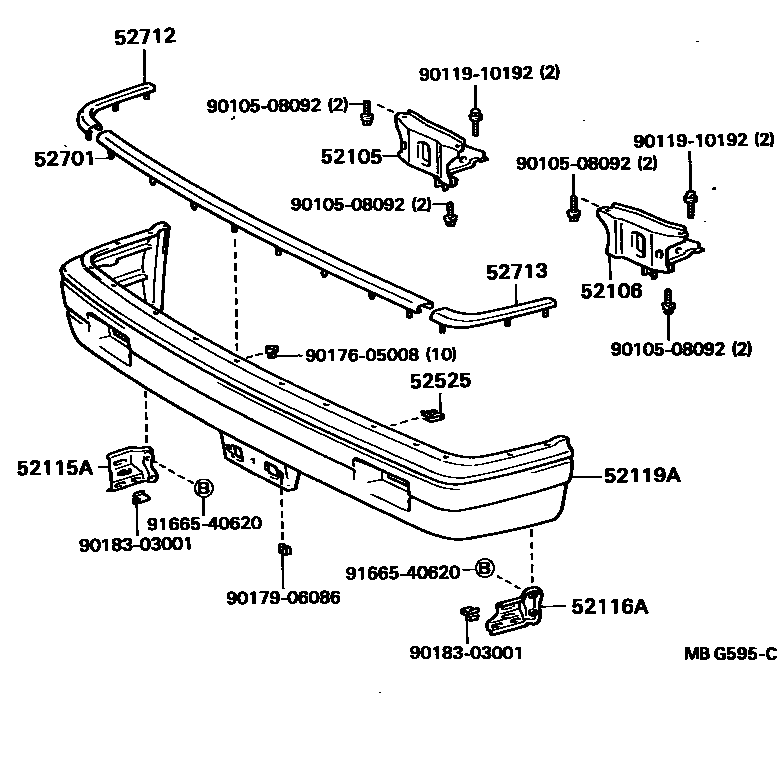

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-22170iLX70,SX70,YX7#..KYO,XL198408-198808

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-22160iLX70,SX70,YX7#..KYO,XL198408-198808

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-22090iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198608

main52115-22090iLX70,SX70..XL198506-198608

W/URETHANE BUMPER

main52115-22120iLX70,SX70,YX7#..KYO,XL198408-198808

main52115-22130iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

W/URETHANE BUMPER

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-22060iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198608

main52116-22060iLX70,SX70..XL198506-198608

W/URETHANE BUMPER

main52116-22090iLX70,SX70,YX7#..KYO,XL198408-198808

main52116-22100iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

W/URETHANE BUMPER

52119ACOVER, FRONT BUMPER

main52119-22180iGX71,LX70,SX70..SXL,XG198408-198506

main52119-22190-03iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

SUPER SILVER-M,SUPER SILVER M,150

sub52119-22928

sub52119-22190

main52119-22190-04iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

DARK BLUE-M,DARK BLUE METALLIC,8C1

sub52119-22928

sub52119-22190

main52119-22190-05iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

BEIGE-M,BEIGE METALLIC,4E6

sub52119-22928

sub52119-22190

main52119-22190-08iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

SUPER WHITE,SUPER WHITE,040

sub52119-22928

sub52119-22190

main52119-22190-14iGX71..AVT,GT198408-198608

LIGHT BLUE-M,LIGHT BLUE METALLIC,2V7

sub52119-22928

sub52119-22190

main52119-22190-15iGX71..TWC198408-198510

LIGHT BEIGE-M,LIGHT BEIGE METALLIC,2U9

sub52119-22928

sub52119-22190

main52119-22190-18iGX71..AVT..EFI198601-198608

LORDLY,SUPER WHITE 2,WHITE/BEIGE,040

sub52119-22928

sub52119-22190

main52119-22190-22iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

DARK RED,DARK RED,3E9

sub52119-22928

sub52119-22190

main52119-22190-25iGX71..AVT,GT198510-198608

BROWN-M/BEIGE-M,BEIGE/BROWN,2U9

sub52119-22928

sub52119-22190

main52119-22200-03iGX71,MX71..AVT,GT198408-198608

W/*HC,SUPER SILVER-M,SUPER SILVER M,150

sub52119-22927

sub52119-22200

main52119-22200-04iGX71,MX71..AVT,GT198408-198608

W/*HC,DARK BLUE-M,DARK BLUE METALLIC,8C1

sub52119-22927

sub52119-22200

main52119-22200-05iGX71,MX71..AVT,GT198408-198608

W/*HC,BEIGE-M,BEIGE METALLIC,4E6

sub52119-22927

sub52119-22200

main52119-22200-08iGX71,MX71..AVT,GT198408-198608

W/*HC,SUPER WHITE,SUPER WHITE,040

sub52119-22927

sub52119-22200

main52119-22200-14iGX71..AVT,GT198408-198608

W/*HC,LIGHT BLUE-M,LIGHT BLUE METALLIC,2V7

sub52119-22927

sub52119-22200

main52119-22200-15iGX71..TWC198408-198510

W/*HC,LIGHT BEIGE-M,LIGHT BEIGE METALLIC,2U9

sub52119-22927

sub52119-22200

main52119-22200-18iGX71..AVT..EFI198601-198608

LORDLY,W/*HC,SUPER WHITE2,WHITE/BEIGE,040

sub52119-22927

sub52119-22200

main52119-22200-22iGX71,MX71..AVT,GT198408-198608

W/*HC,DARK RED,DARK RED,3E9

sub52119-22927

sub52119-22200

main52119-22200-25iGX71..AVT,GT198510-198608

W/*HC,BROWN-M/BEIGE-M,BEIGE/BROWN,2U9

sub52119-22927

sub52119-22200

main52119-22270iLX70,SX70,YX7#..KYO,XL198408-198808

main52119-22280-02iGX71,LX70,SX70..AVT,GT,SXL,XG198608-198808

W/*UB,RED MICA,RED MICA,3H3

sub52119-22909

sub52119-22420

sub52119-22440

main52119-22280-03iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

W/*UB,SUPER SILVER-M 2,SUPER SILVER 2,166

sub52119-22909

sub52119-22420

sub52119-22440

main52119-22280-04iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

W/*UB,BLUE MICA,BLUE MICA,8E3

sub52119-22909

sub52119-22420

sub52119-22440

main52119-22280-05iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

W/*UB,BEIGE-M,BEIGE METALLIC,4G8

sub52119-22909

sub52119-22420

sub52119-22440

main52119-22280-08iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

W/*UB,SUPER WHITE 2,SUPER WHITE 2,040

sub52119-22909

sub52119-22420

sub52119-22440

main52119-22280-18iGX71..AVT,GT198608-198808

W/*UB,WHITE/BROWN,WHITE/BROWN,25C

sub52119-22909

sub52119-22420

sub52119-22440

main52119-22280-28iGX71..AVT..EFI198701-198708

LORDLY,SUPER WHITE 2,S WHITE 2/FAIN BEIGE,040

sub52119-22909

sub52119-22420

sub52119-22440

main52119-22280-38iGX71..TWC198705-198708

LORDLY,WHITE PEARL MICA,W PEARL M/F BEIGE M,042

sub52119-22909

sub52119-22420

sub52119-22440

main52119-22290-02iGX71..AVT,GT198608-198808

W/*UB,*HC,RED MICA,RED MICA,3H3

sub52119-22929

sub52119-22460

sub52119-22450

main52119-22290-03iGX71..AVT,GT198608-198808

W/*UB,*HC,SUPER SILVER-M2,SUPER SILVER 2,166

sub52119-22929

sub52119-22460

sub52119-22450

main52119-22290-04iGX71..AVT,GT198608-198808

W/*UB,*HC,BLUE MICA,BLUE MICA,8E3

sub52119-22929

sub52119-22460

sub52119-22450

main52119-22290-05iGX71..AVT,GT198608-198808

W/*UB,*HC,BEIGE-M,BEIGE METALLIC,4G8

sub52119-22929

sub52119-22460

sub52119-22450

main52119-22290-08iGX71..AVT,GT198608-198808

W/*UB,*HC,SUPER WHITE 2,SUPER WHITE 2,040

sub52119-22929

sub52119-22460

sub52119-22450

main52119-22290-18iGX71..AVT,GT198608-198808

W/*UB,*HC,WHITE/BROWN,WHITE/BROWN,25C

sub52119-22929

sub52119-22460

sub52119-22450

main52119-22290-28iGX71..AVT..EFI198705-198708

LORDLY,W/*HC,SUPER WHITE2,S WHITE 2/F BEIGE M,040

sub52119-22929

sub52119-22460

sub52119-22450

main52119-22290-38iGX71..TWC198705-198708

LORDLY,W/*HC*WH PEARLMICA,W PEARL M/F BEIGE M,042

sub52119-22929

sub52119-22460

sub52119-22450

main52119-22420-08iGX71..AVT..EFI198708-198808

LORDLY,SUPER WHITE 2,S WHITE 2/BEIGE M,040

main52119-22440-08iGX71..TWC198708-198808

LORDLY,WHITE PEARL MICA,W PEARL M/BEIGE M,042

main52119-22450-08iGX71..TWC198708-198808

LORDLY,W/*HC,*WH PEARLMICA,W PEARL M/BEIGE M,042

main52119-22460-08iGX71..AVT..EFI198708-198808

LORDLY,W/*HC,SUPER WHITE2,S WHITE 2/BEIGE M,040

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-22030iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198808

main52525-22030iLX70,SX70..XL198506-198808

W/URETHANE BUMPER

main52565-12040iLX70,SX70,YX7#..KYO,XL198408-198808

52701MOULDING SUB-ASSY, FRONT BUMPER

main52711-22060iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198808

main52711-22060iLX70,SX70..XL198506-198808

W/URETHANE BUMPER

main52711-22090iLX70,SX70,YX7#..KYO,XL198408-198808

52712MOULDING, FRONT BUMPER SIDE, RH

main52702-22010iLX70,SX70..XL198506-198808

W/URETHANE BUMPER

main52702-22010iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198808

main52702-22030iLX70,SX70,YX7#..KYO,XL198408-198808

52713PLUG, FRONT BUMPER MOULDING

main52703-22010iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198808

main52703-22010iLX70,SX70..XL198506-198808

W/URETHANE BUMPER

main52703-22030iLX70,SX70,YX7#..KYO,XL198408-198808

9010508092

main90105-08092

9011910192

main90119-10192

9017605008

main90176-05008

9017906086

main90179-06086

9018303001

main90183-03001

9166540620

main91665-40620

15 parts on this diagram · 2 diagrams in section
