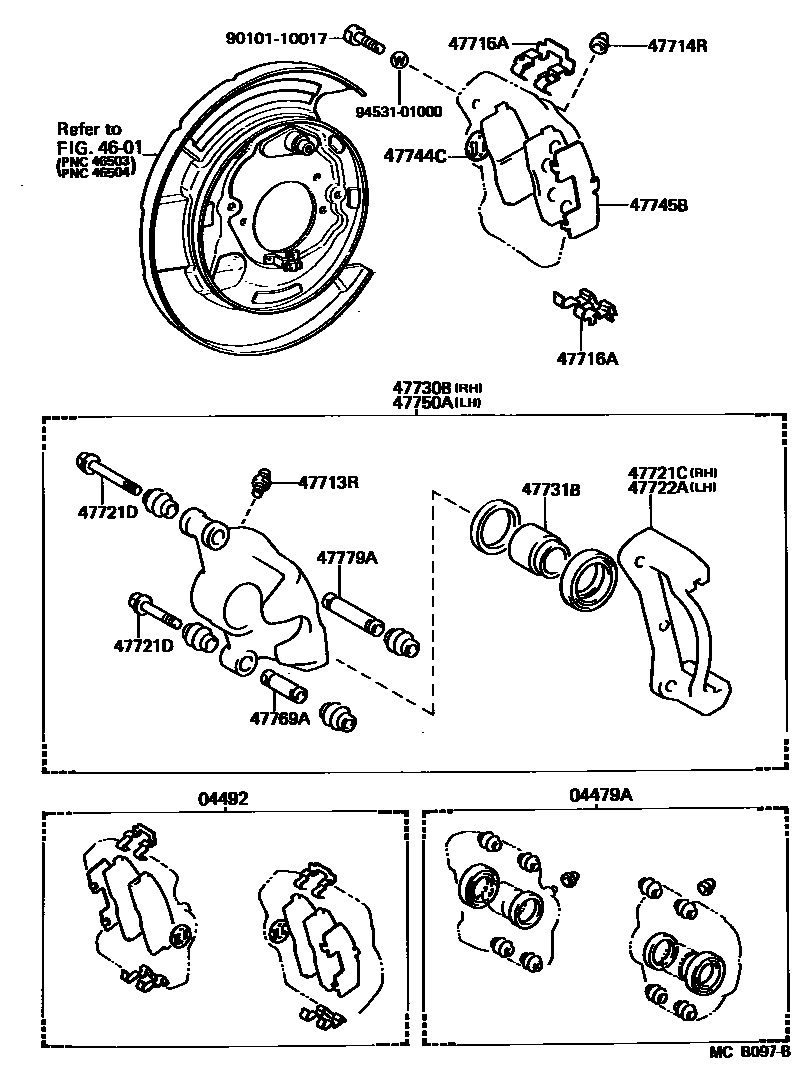

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30090iGX71,MX71..AVT,GT198408-198808

04492PAD KIT, DISC BRAKE, REAR

main04492-22030iGX71..AVT..EFI198408-198510

sub04466-22110

main04492-22050iGX71,MX71..TBO,TWC198408-198612

sub04492-22070

main04492-22070iGX71..AVT,GT198612-198808

4601

47713RPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-35020iGX71,MX71..AVT,GT198408-198808

47714RCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGX71,MX71..AVT,GT198408-198808

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-22020iGX71..AVT..EFI198408-198510

main47716-40020iGX71..AVT,GT198408-198808

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-22030iGX71..AVT..EFI198408-198510

main47721-22040iGX71,MX71..TBO,TWC198408-198808

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90119-09005iGX71,MX71..AVT,GT198408-198808

main90119-09006iGX71,MX71..AVT,GT198408-198808

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-22030iGX71..AVT..EFI198408-198510

main47721-22040iGX71,MX71..TBO,TWC198408-198808

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-22130iGX71..AVT..EFI198408-198510

main47730-22140iGX71,MX71..TBO,TWC198408-198808

47731BPISTON, REAR DISC BRAKE

main47731-30060iGX71,MX71..AVT,GT198408-198808

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-22060iGX71,MX71..AVT,GT198408-198808

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-40030iGX71,MX71..AVT,GT198408-198808

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-22130iGX71..AVT..EFI198408-198510

main47750-22140iGX71,MX71..TBO,TWC198408-198808

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-40020iGX71,MX71..AVT,GT198408-198808

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-40020iGX71,MX71..AVT,GT198408-198808

9010110017

main90101-10017

9453101000

main94531-01000

18 parts on this diagram · 2 diagrams in section
